Eaton BRN230GF BR GFCI Circuit Breaker – 30A, 2-Pole, Pigtail Neutral, 120/240V

Overview

The Eaton BRN230GF GFCI circuit breaker combines ground fault protection with reliable overcurrent protection, designed for Eaton’s BR-series panels. This two-pole unit covers 120/240 V circuits, is rated at 30 A, and features a pigtail neutral for simplified wiring in compatible panels. With a robust 10 KAIC interrupt capacity, it aims to provide dependable protection for critical circuits where ground faults may occur.

Built to integrate with BR-series panels, the BRN230GF is engineered to help keep electrical systems orderly, reducing panel crowding while delivering safety features that can adapt to evolving load needs in residential or light commercial settings. The device emphasizes a balance of protection and straightforward installation, making it a practical choice for upgrades or new builds that require ground fault interruption on multi-wire circuits.

Key specifications

• Two-pole, 120/240 V design for multi-wire circuits

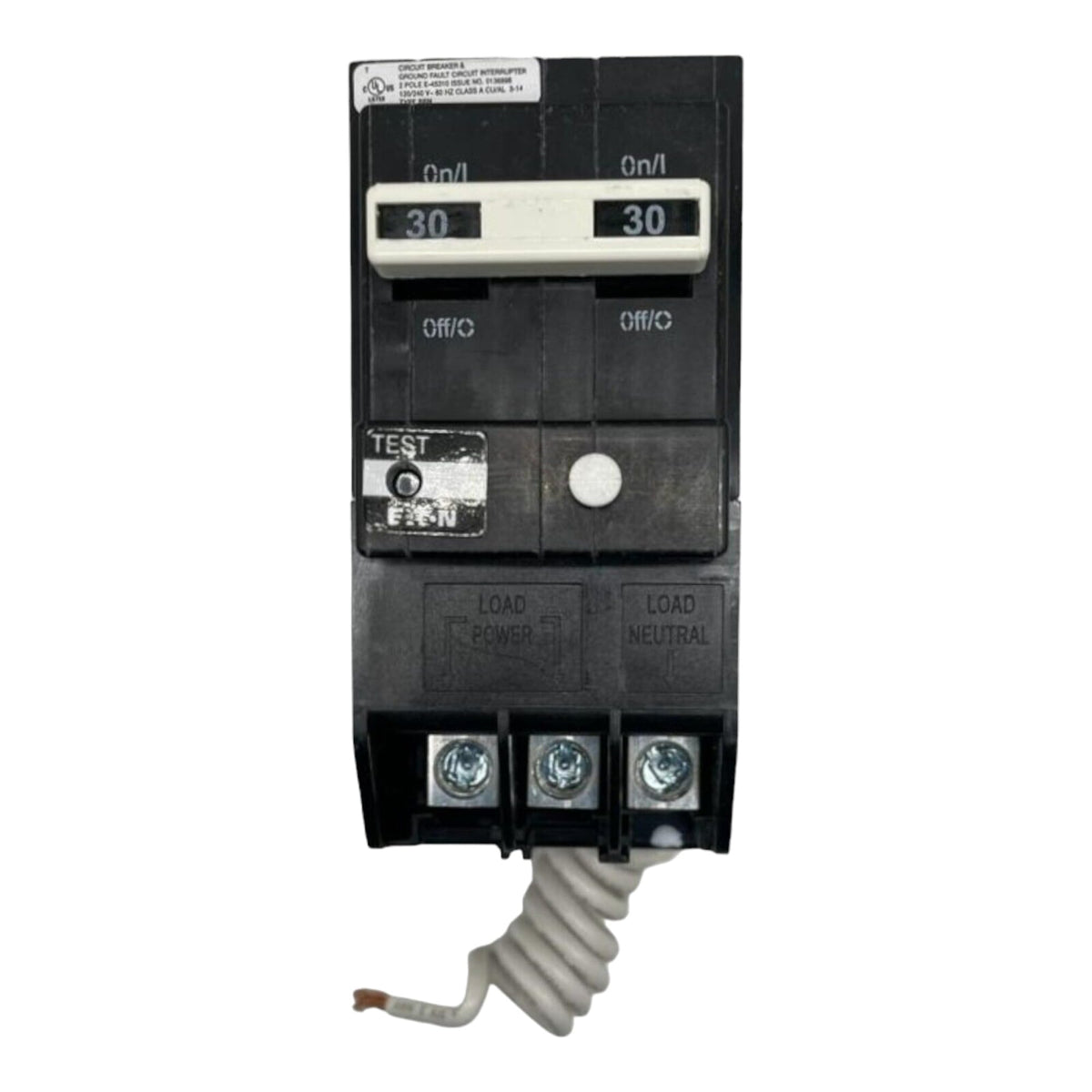

• 30 A circuit rating for standard branch circuits
• Ground fault protection (GFCI) to sense imbalances
• Pigtail neutral connection for easier wiring in BR panels
• 10 KAIC interrupt capacity for strong fault handling
• BR-series compatibility for seamless panel integration

Real-world use scenarios

• Ideal for circuits serving outlets near sinks, kitchens, or bathrooms where moisture is a factor
• Suitable for protecting downstream devices on 30 A circuits in residential or light commercial spaces
• Compact, two-pole form helps when panel space is limited
• Helps simplify wiring in projects that require a single device to cover both hot legs

Installation and benefits

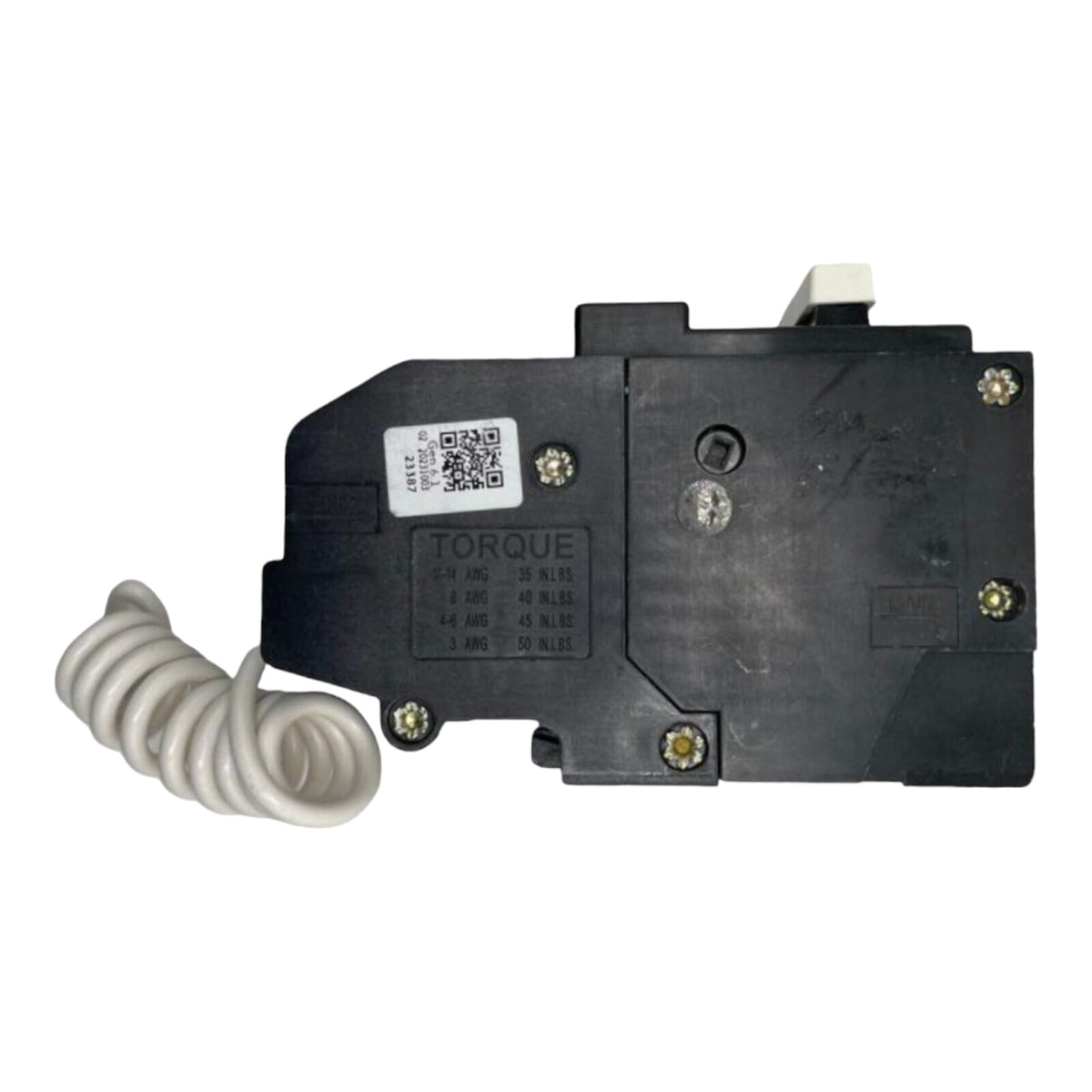

As part of Eaton’s BR family, this breaker is designed for straightforward replacement in compatible panels. The pigtail neutral simplifies connections when a neutral bar is not easily accessible, while the GFCI function adds an extra layer of protection for downstream devices and outlets. It’s a practical option for projects aiming to improve safety without adding complex wiring steps.

Compatibility and safety notes

Ensure your panel supports BR-series breakers and follow local electrical codes during installation. This device is intended for qualified professionals or experienced DIYers familiar with panel wiring and GFCI requirements. Proper labeling and testing are recommended after installation.
