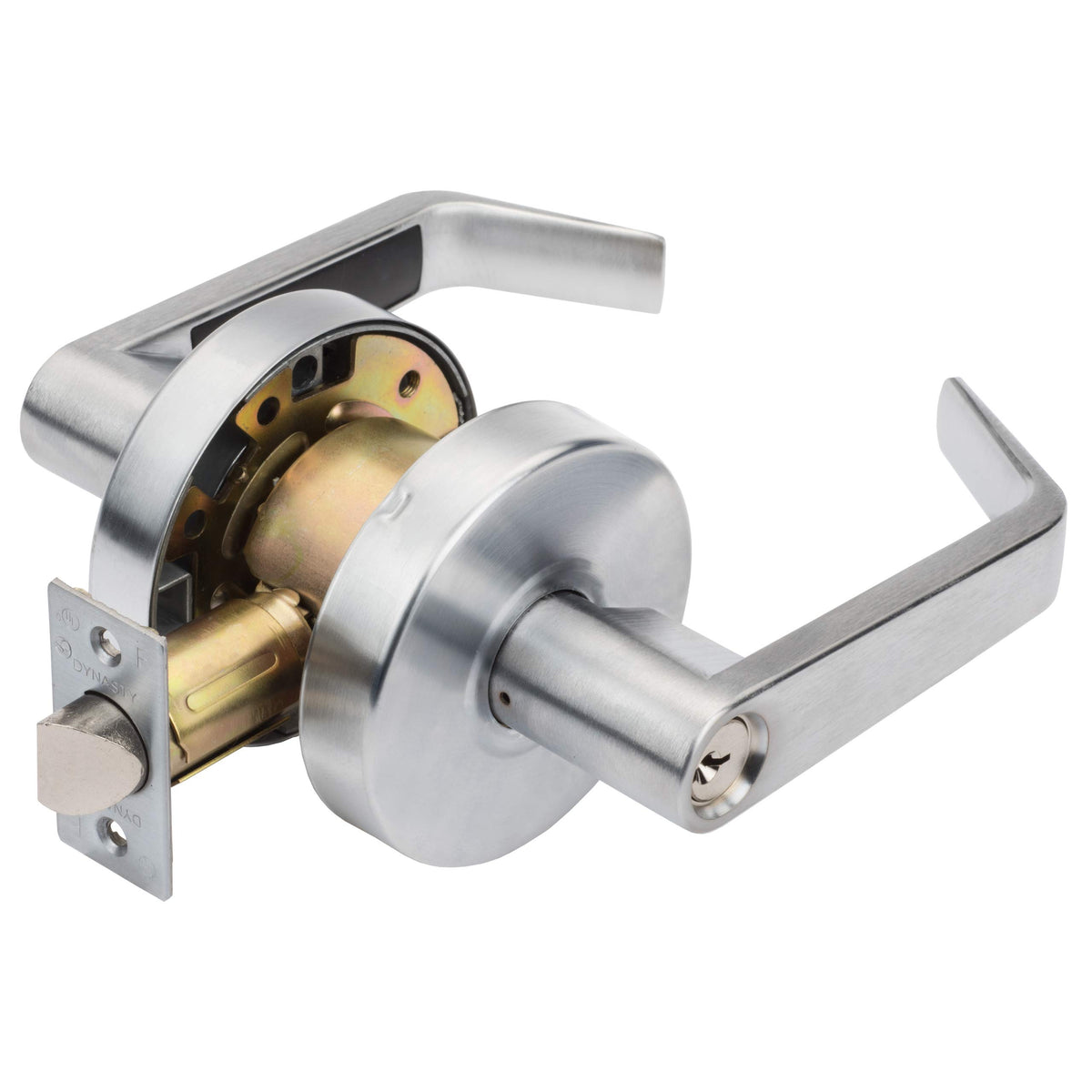

Dynasty Hardware Storeroom Lock – Keyed Lever, ADA, Grade 2, Satin Chrome AUG-05-26D

Overview

The Dynasty Hardware Storeroom Lock is a purpose-built locking lever designed for high-traffic storage areas, utility rooms, and secured interior doors. The satin chrome finish adds a professional touch that resists fingerprints and wear, making it suitable for busy commercial settings.

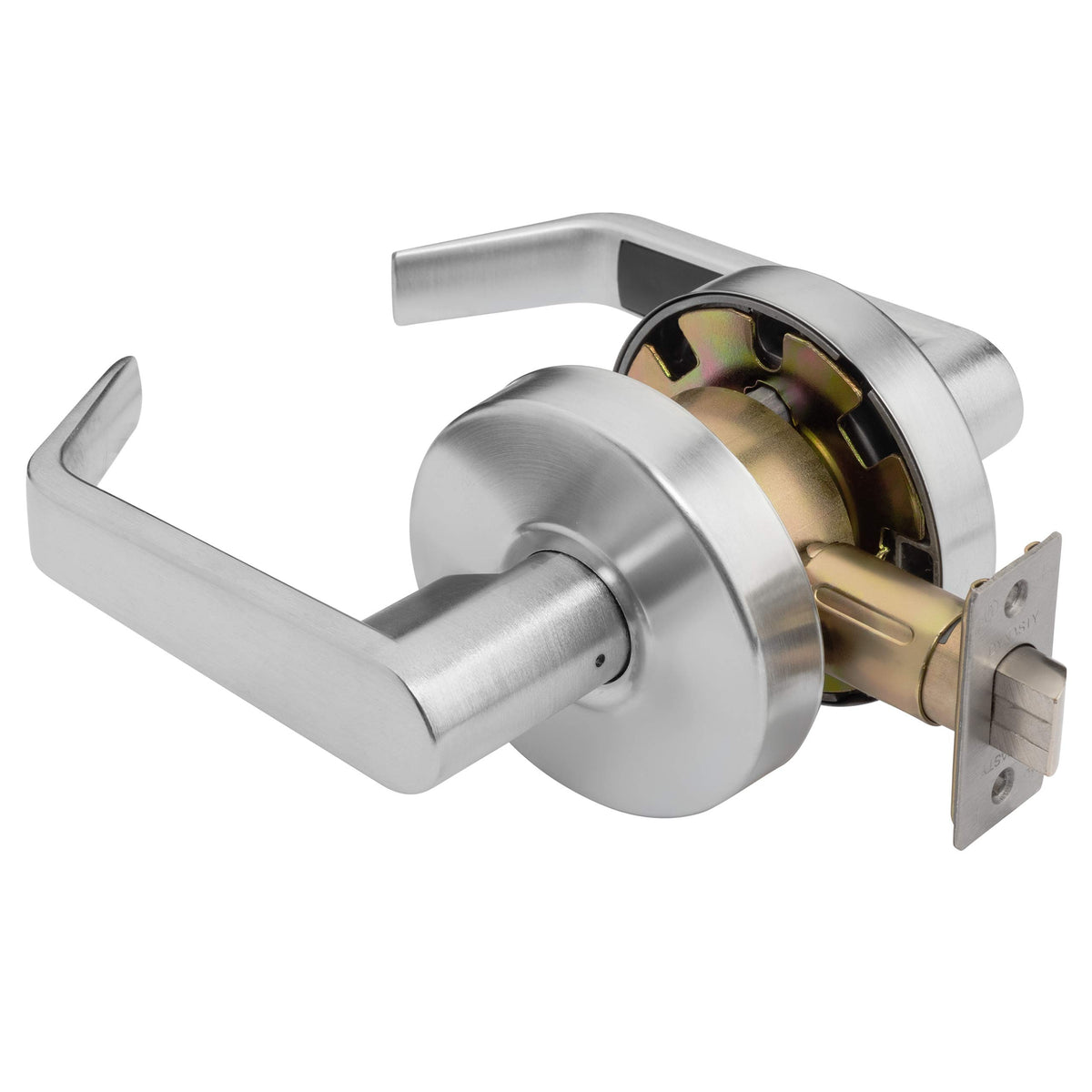

Built for durability

With ANSI Grade 2 certification and heavy-duty internal springs, this lever lock delivers smooth operation even with constant use. The reinforced zinc alloy lever body stands up to daily cycling and the rigors of a busy facility.

• ANSI Grade 2 rated performance for dependable operation
• Heavy-duty springs and reinforced lever housing for longevity
• Designed to operate reliably through frequent door use

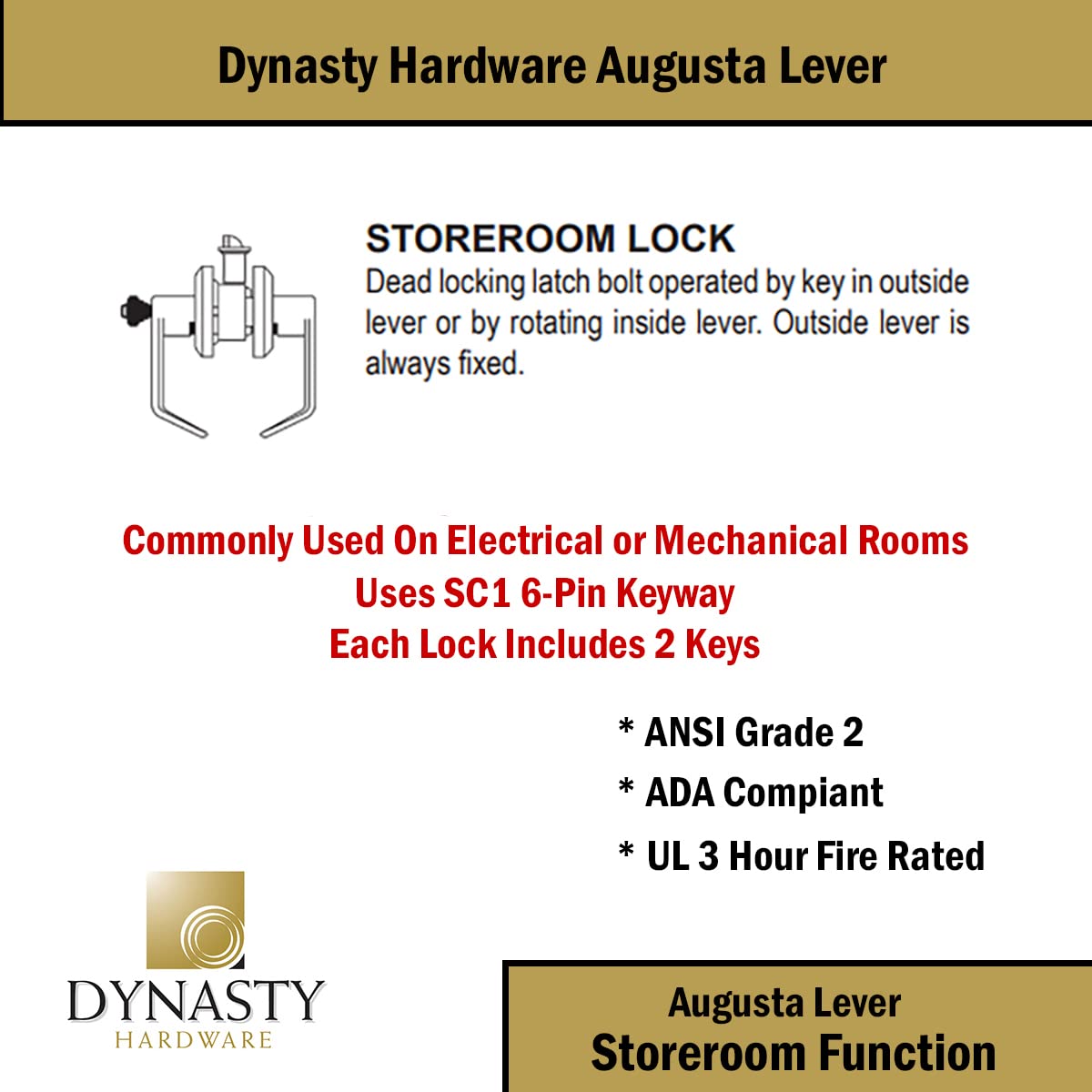

Storeroom locking function and accessibility

The outside lever remains locked at all times and requires a key for entry, while the inside lever stays free for safe, easy egress. This configuration supports controlled access without hindering occupants inside.

• Outside lever locked; inside lever free for quick exit
• Helps manage access to storage areas without surprises
• Ideal for storerooms, utility rooms, and secured interior doors

ADA compliant and non-handed design

Fully ADA compliant, the lever is non-handed, fitting both left- and right-swing doors. This reduces installation time and provides a versatile solution for new builds or replacements in public spaces.

• Barrier-free accessibility for diverse users
• Non-handed design simplifies installation on various door swings
• Suitable for commercial and public buildings

Door compatibility and what’s included

Engineered for standard commercial doors with a 2-1/8 inch bore and a 161 door prep. It supports door thickness from 1-3/8 to 1-3/4 inches and includes a UL listed fire-rated backset latch. Through-bolts and all mounting hardware are included for a secure fit.

• Fits standard 161 door prep, 2-1/8 bore
• For doors 1-3/8" to 1-3/4" thick

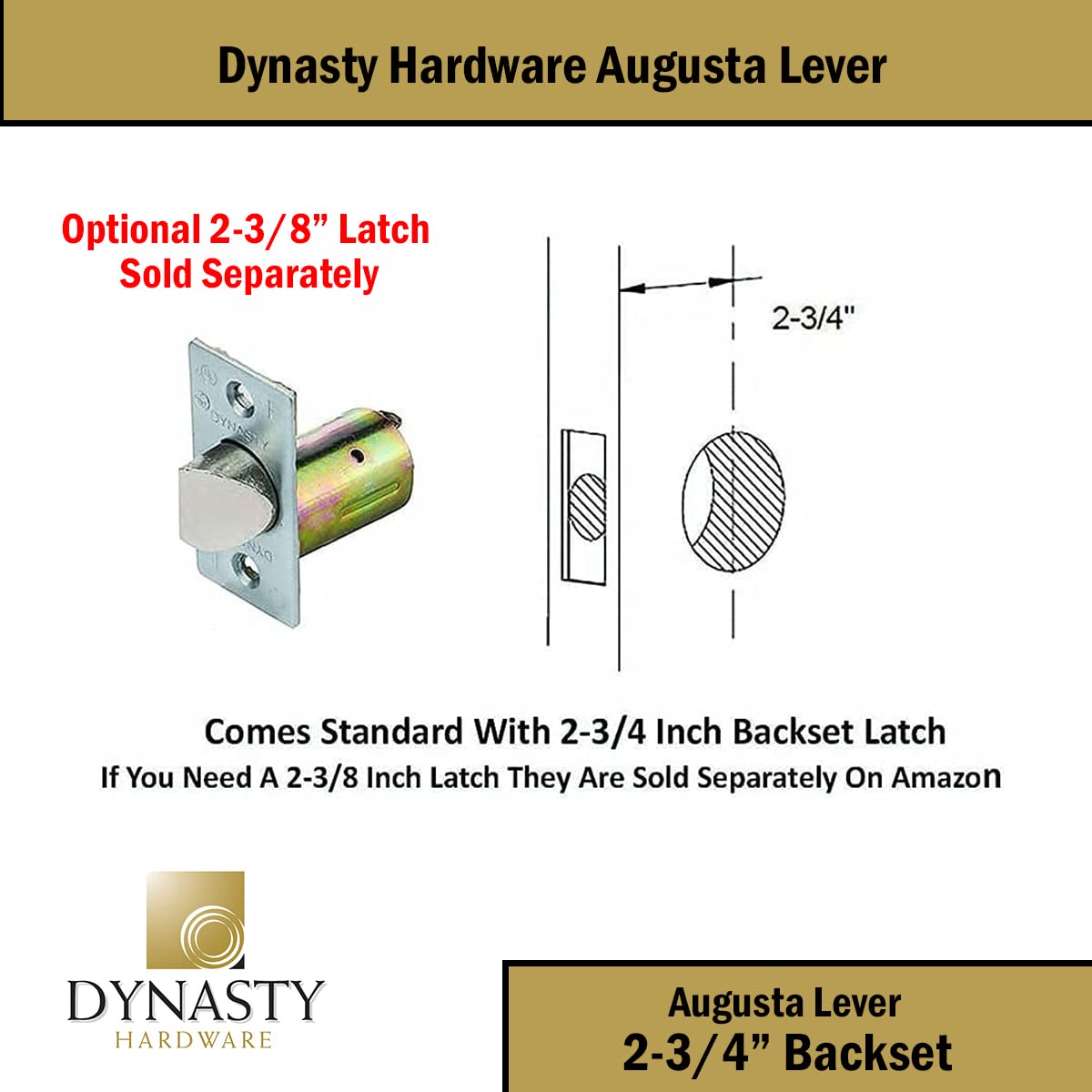

• UL 3-hour fire-rated 2-3/4" backset latch included

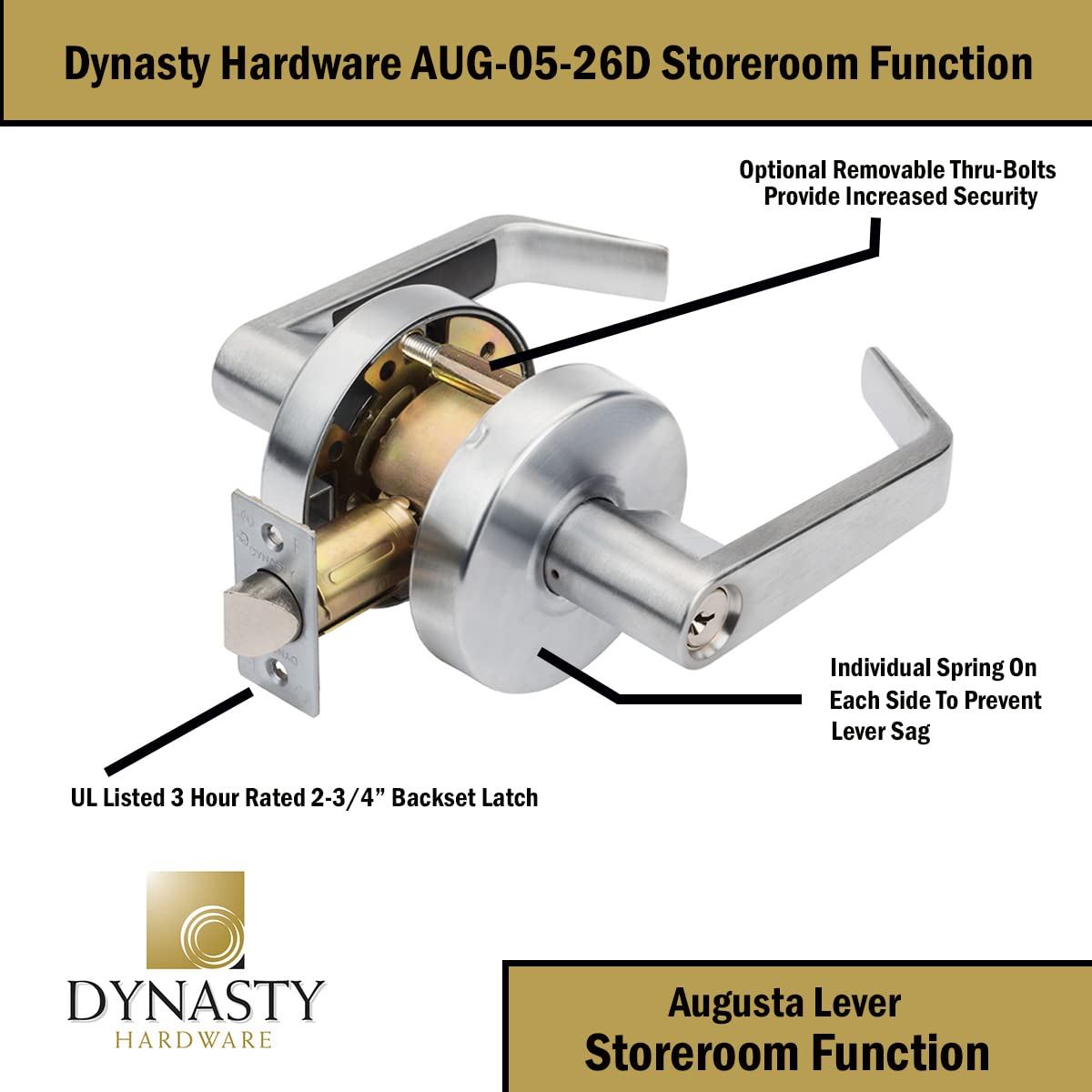

Complete installation kit

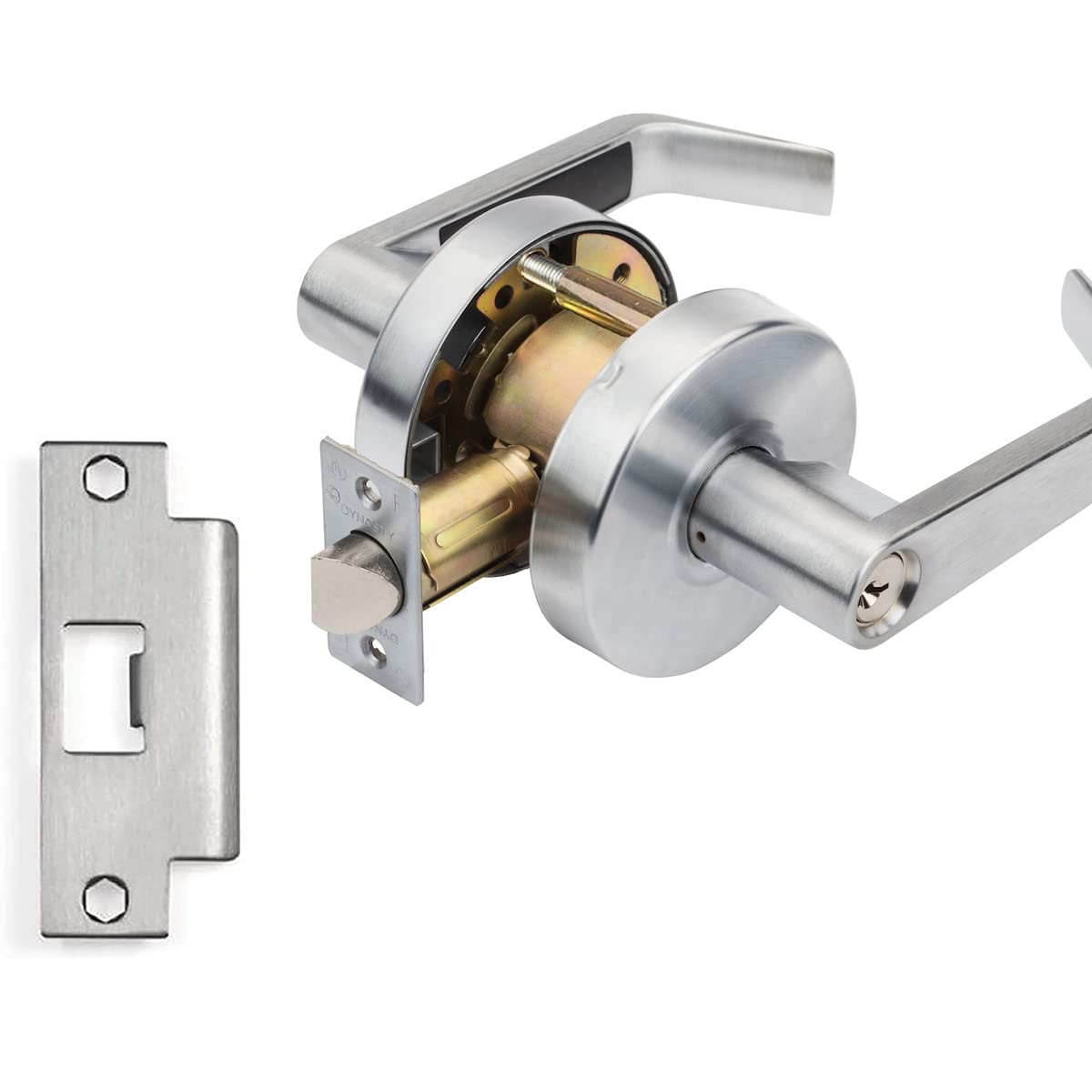

Each box contains the keyed lever, keys, strike plate, thru bolts, fasteners, latch, mounting template, and instructions. Optional through-bolt installation helps prevent lever sag and maintain a clean, professional appearance.

• All mounting hardware included
• Optional through-bolt setup to prevent sag
• Satin chrome finish for a clean, professional look
