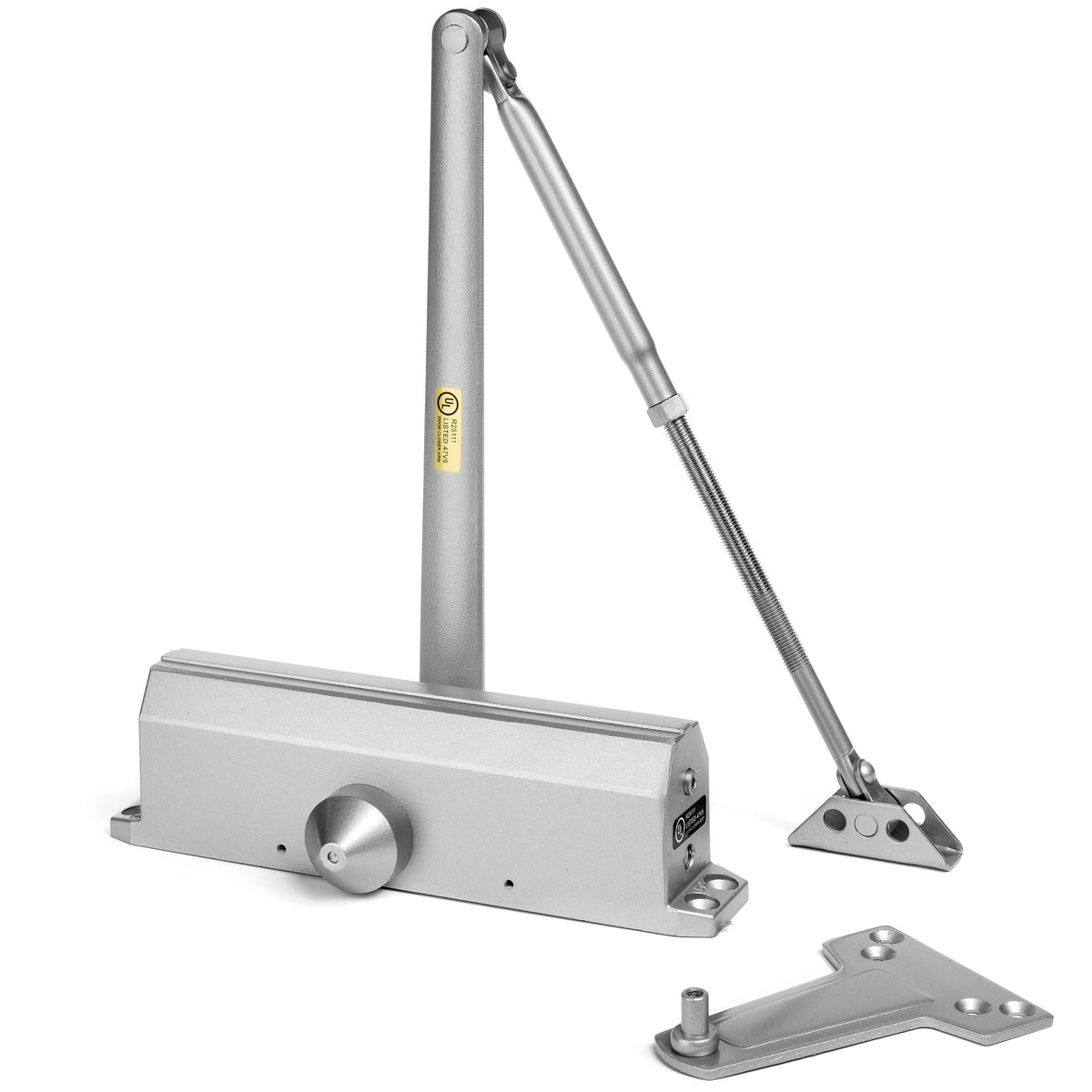

Dynasty Hardware Door Closer Series 1614 – Grade 1 Heavy-Duty, ADA Compliant, Surface Mount

Overview

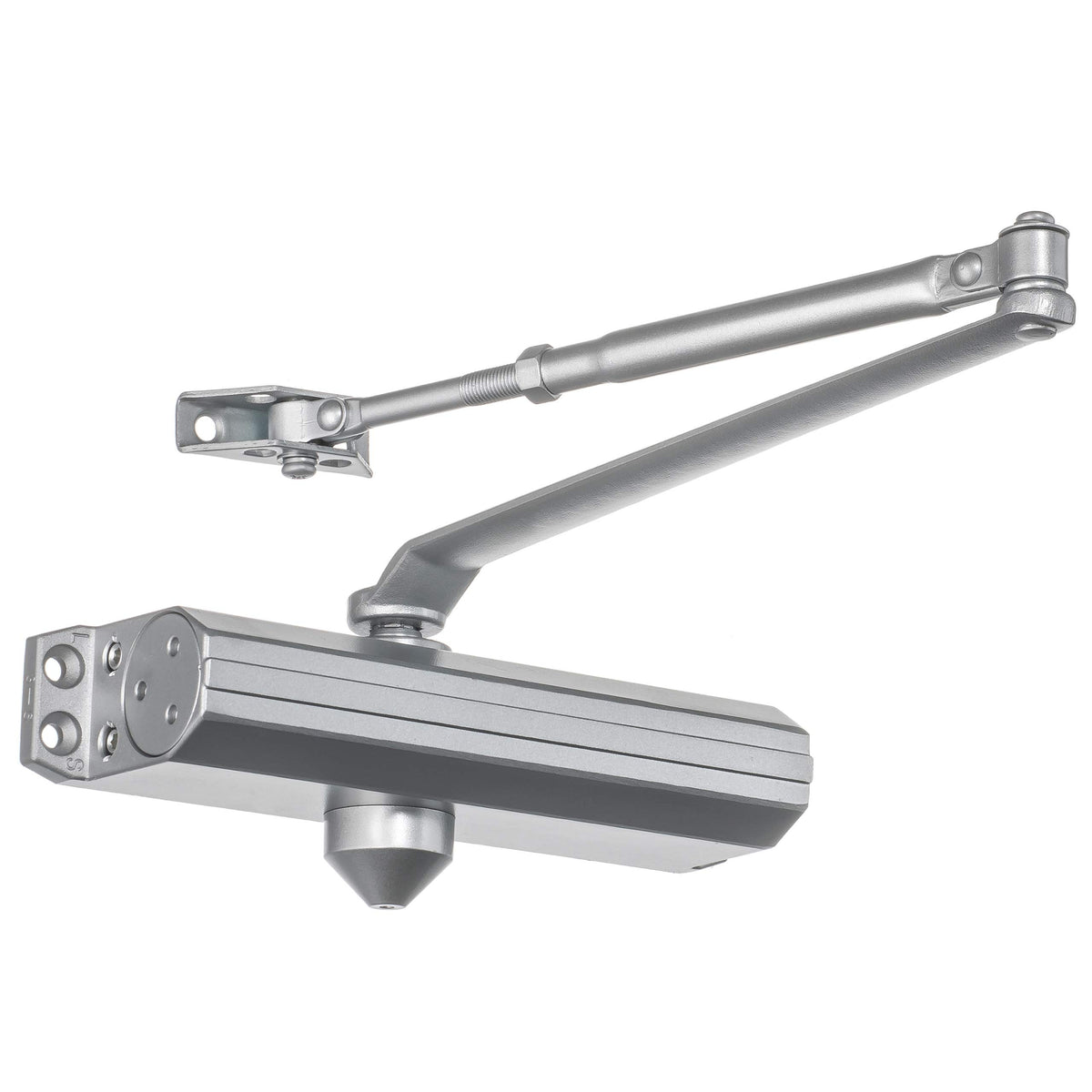

Meet the Dynasty Hardware Door Closer, Series 1614—a Grade 1 heavy‑duty hydraulic closer designed for busy commercial environments. The sprayed aluminum body combines durability with a clean, modern look, making it suitable for storefronts, restaurants, and other public doors. This closer is self‑closing and ADA compliant, helping doors return to a closed position smoothly after each use.

Key Features

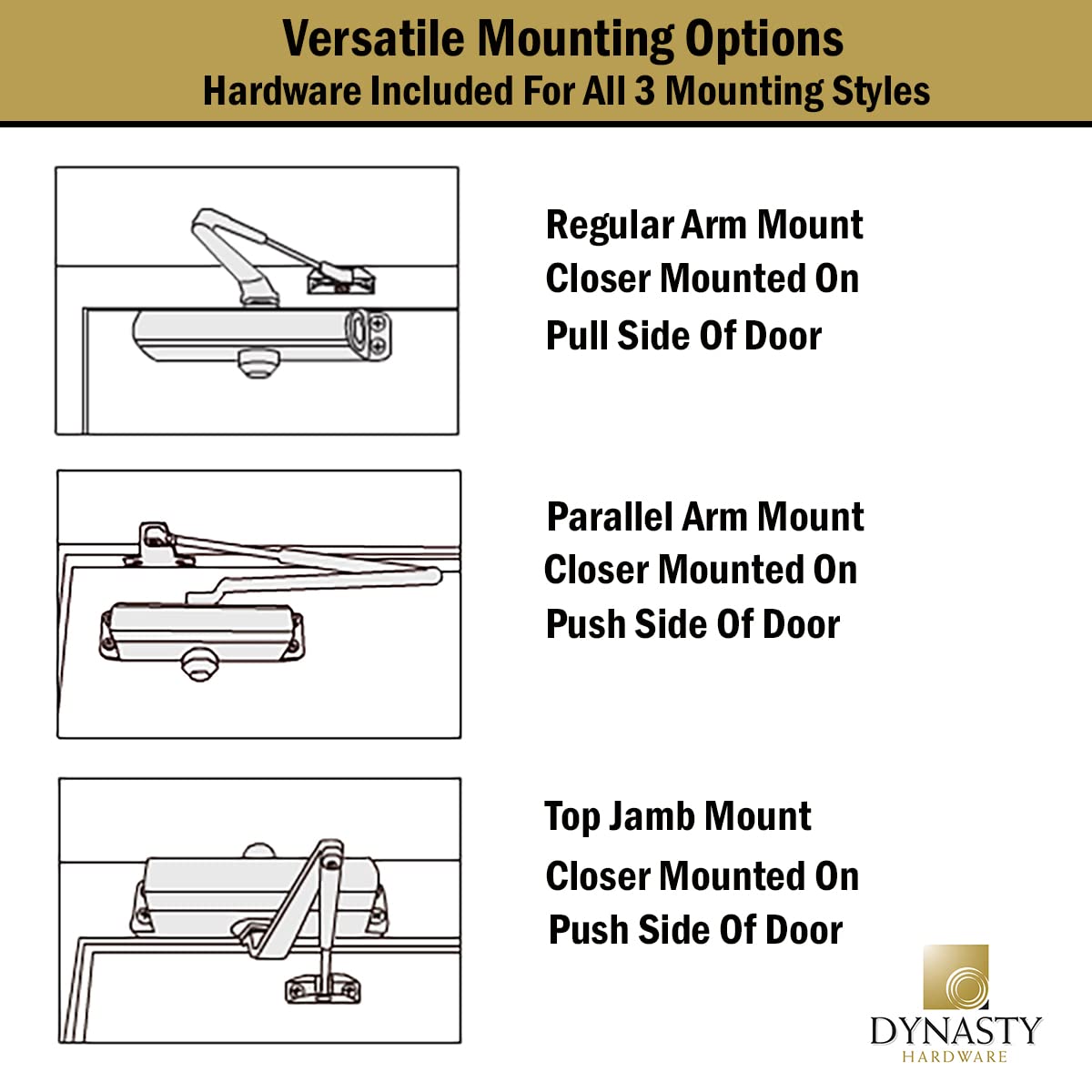

• Mounting Type: Non-Handed for Regular Arm, Top-Jamb or Parallel Arm Installation
• Usage: For medium to high traffic doors up to 187 lbs; ideal for aluminum storefronts, restaurants, and other public spaces

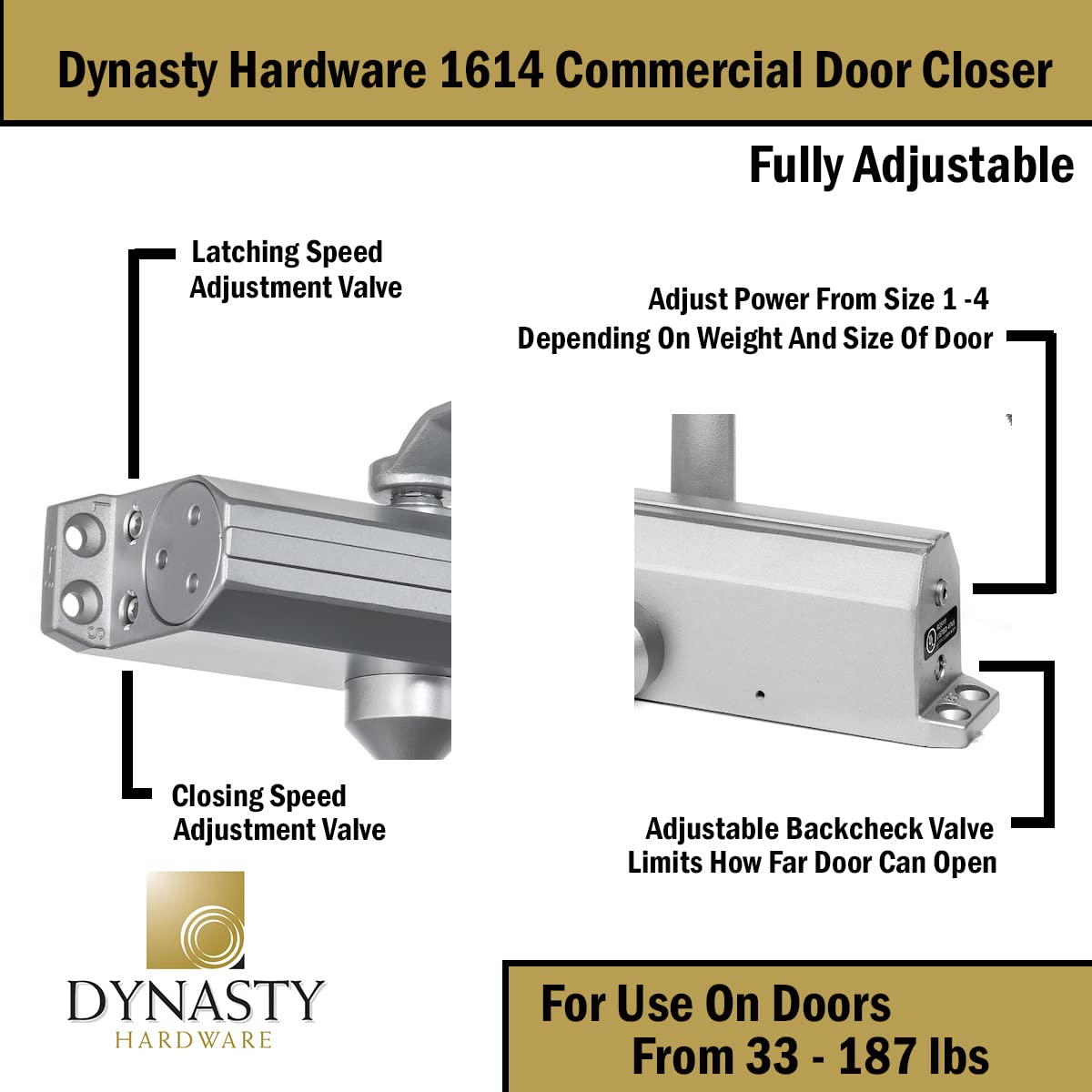

• Adjustments: Size 1 through 4 with standard back‑check to prevent uncontrolled opening
• Certifications: BHMA/ANSI 156.4 Grade 1; UL Fire Rated Listed for 3 hours
• Installation: Includes all fasteners for wood, metal, or fiberglass doors

Real‑World Benefits and Use Cases

In daily operation, a reliable closer helps maintain consistent door speed, reducing slams and drafts. The Series 1614 offers adjustable spring strength (Size 1–4) to suit different door weights and hardware configurations. The standard back‑check helps prevent uncontrolled openings, especially in windy conditions or during peak traffic.

Designed with versatility in mind, the non‑handed design supports flexible mounting options, including surface mount. The sprayed aluminum finish provides durability and a contemporary aesthetic that blends with commercial interiors. For buildings requiring fire‑rated performance, the UL-listed 3‑hour rating adds an extra layer of confidence for code compliance.

Practical Considerations

• Compatibility: Works on wood, metal, or fiberglass doors with included fasteners
• Maintenance: Regular inspection and occasional lubrication help maintain smooth operation
• Accessibility: ADA‑compliant operation supports accessible entrances and egress standards

When selecting a closer, consider door weight, traffic level, mounting space, and accessibility requirements. The Series 1614 is built to perform in medium to high traffic scenarios, offering flexible adjustments without committing to a fixed closing force.
