DieseRC DC 12V/24V/30V Secure Wireless Remote Control Switch – 10A Relay Receiver Kit

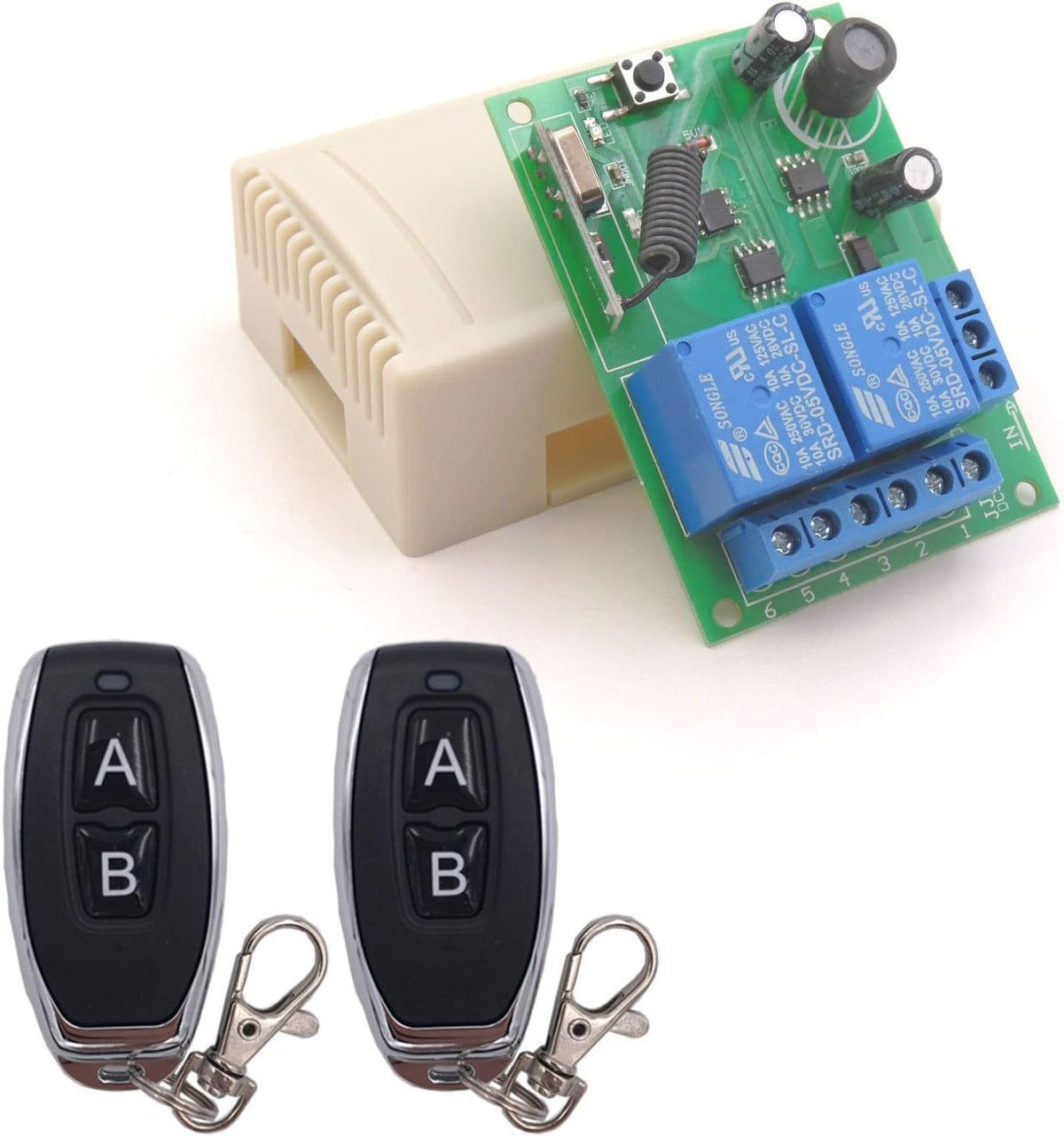

Meet the DieseRC DC remote control switch kit—a universal wireless controller designed for DIY projects and smart setups. Operating at 433MHz with EV1527 learning code, it delivers a robust link between the remote fobs and the receiver board. This kit includes a dual-relay receiver and two compact key fobs, enabling straightforward, wireless control of connected devices from a distance.

Key capabilities at a glance

• 433MHz RF wireless with high reception sensitivity (> 97dBm), delivering a stable connection through walls, floors, and doors.
• Range up to 30 meters in open space, with reliable performance even when obstacles are present.
• EV1527 learning code adds a flexible security layer to the remote control setup.

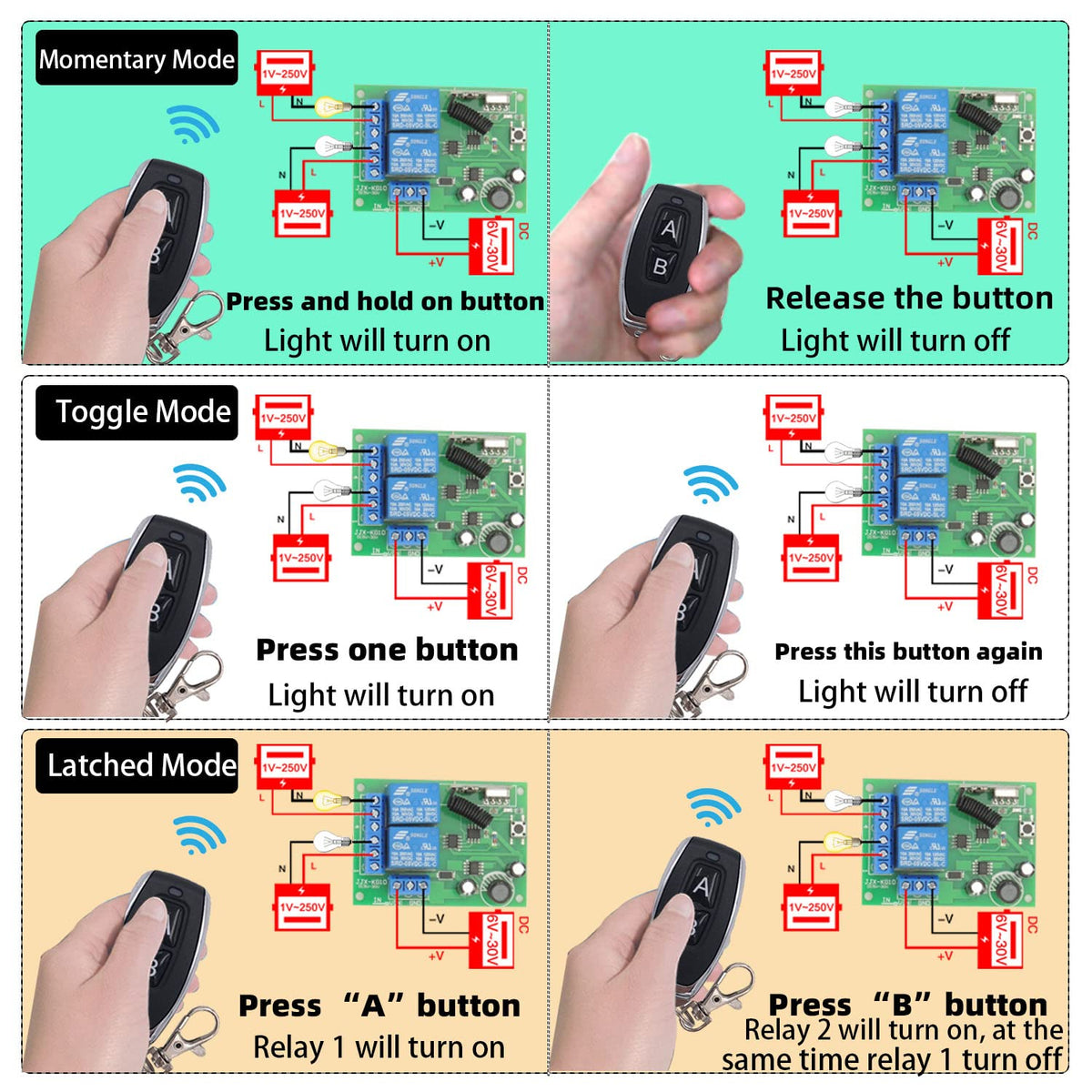

• Three operating modes (momentary, toggle, latched) you can choose to fit your project needs.

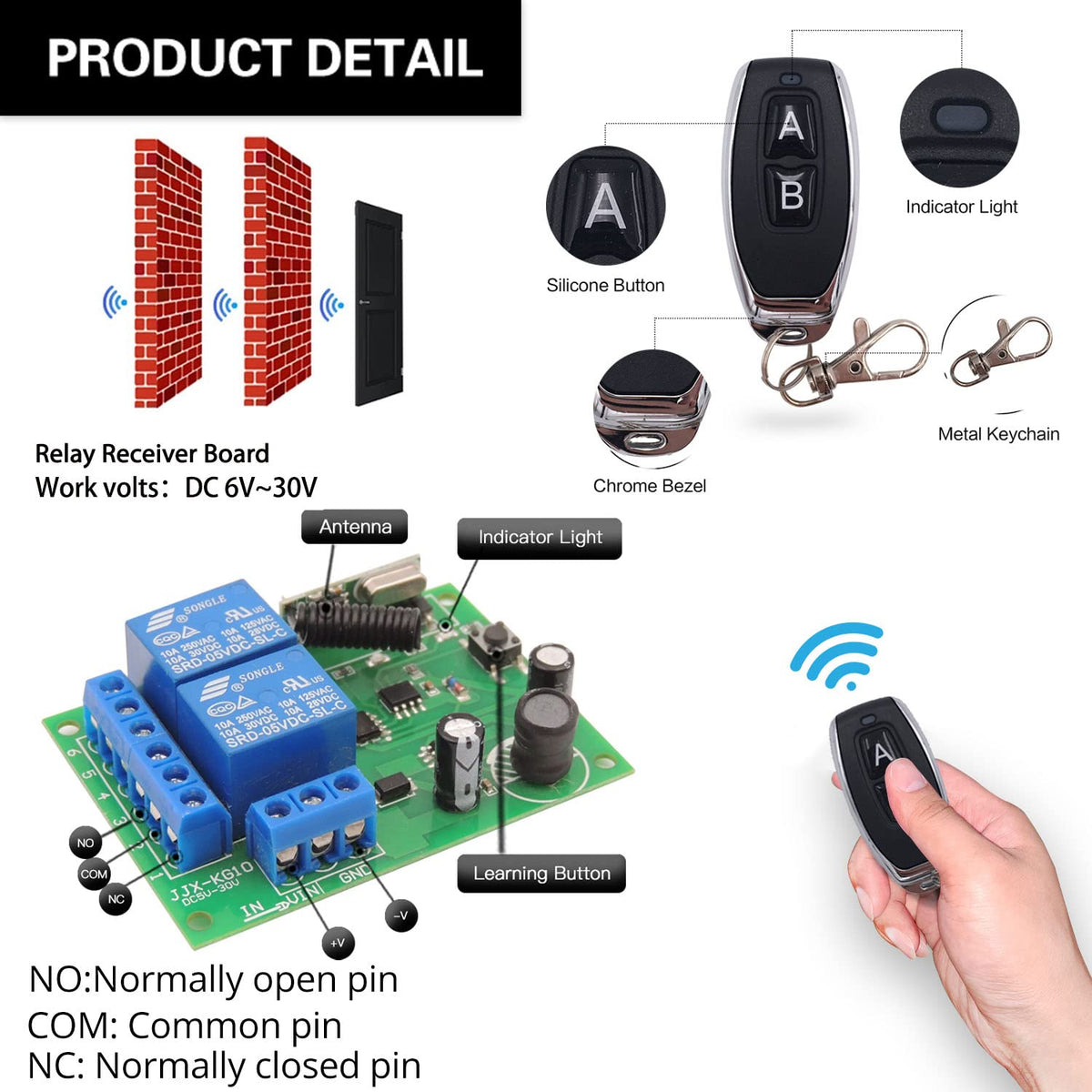

• Two independent relays, each with normally open, common, and normally closed terminals; one receiver can be controlled by multiple transmitters.
• Store about 20 transmitters per receiver; a single transmitter can control multiple receivers when paired.
• 10A relay with a 15A high-power terminal for a wide range of loads; works with DC 6–30V (DC12V and DC24V supported).

Flexible setup and real-world use

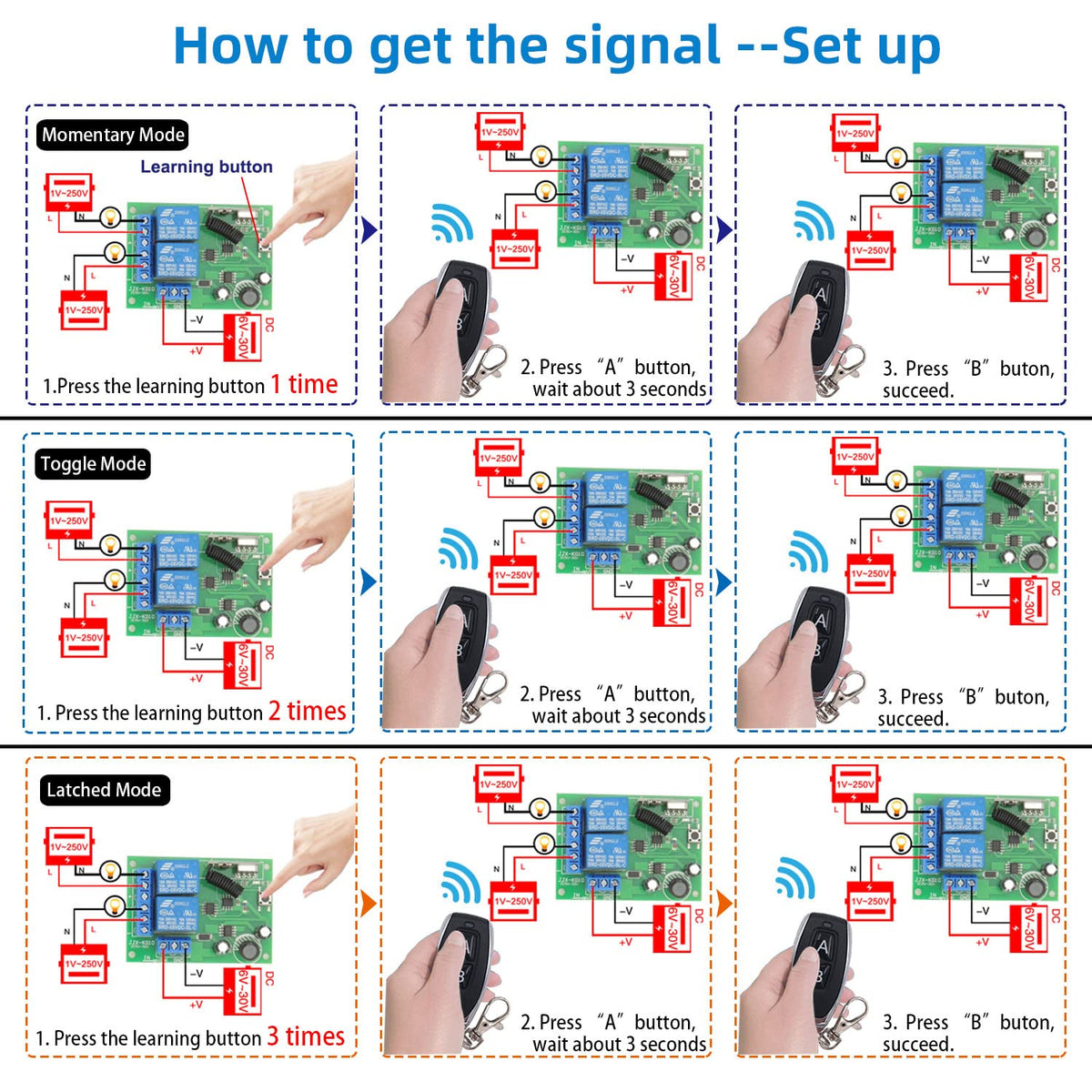

• Extremely easy to set up and reset, with adjustable modes to match your specific needs.

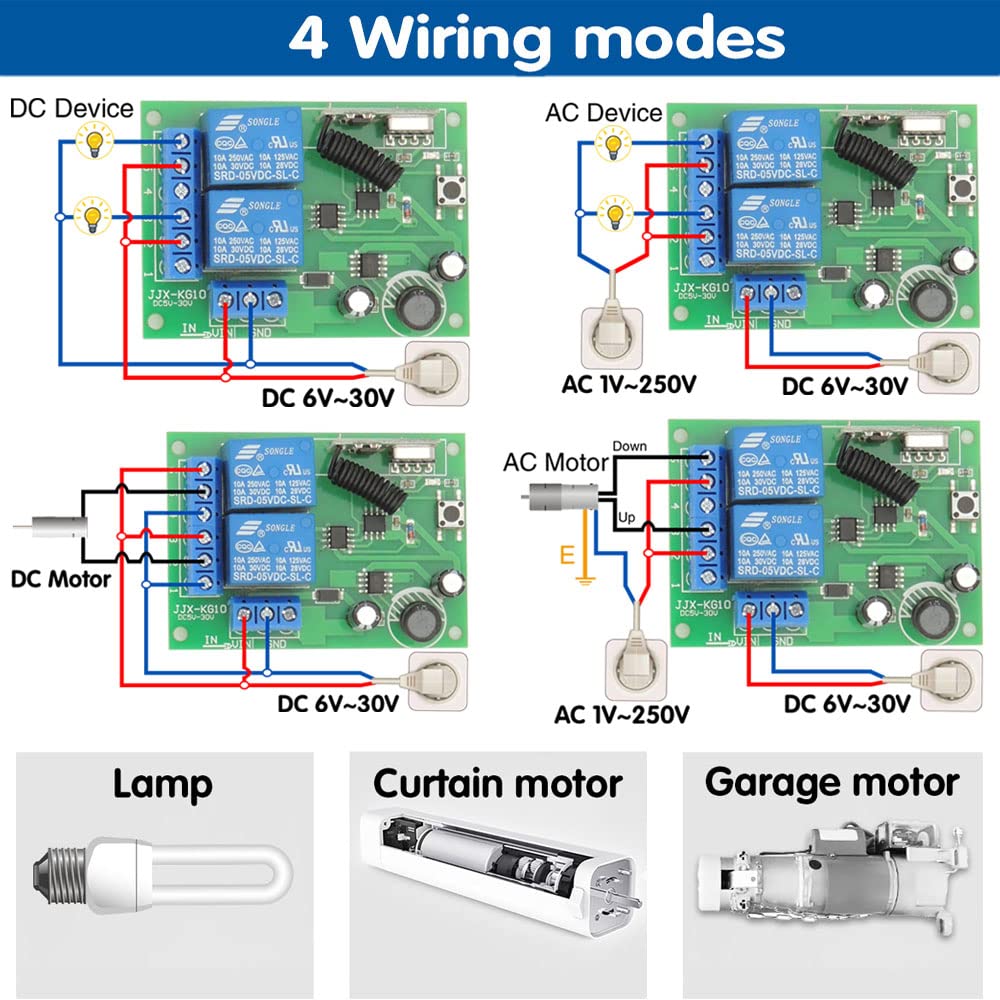

• Compatible with both DC motors and AC motors, allowing remote control across diverse device types.

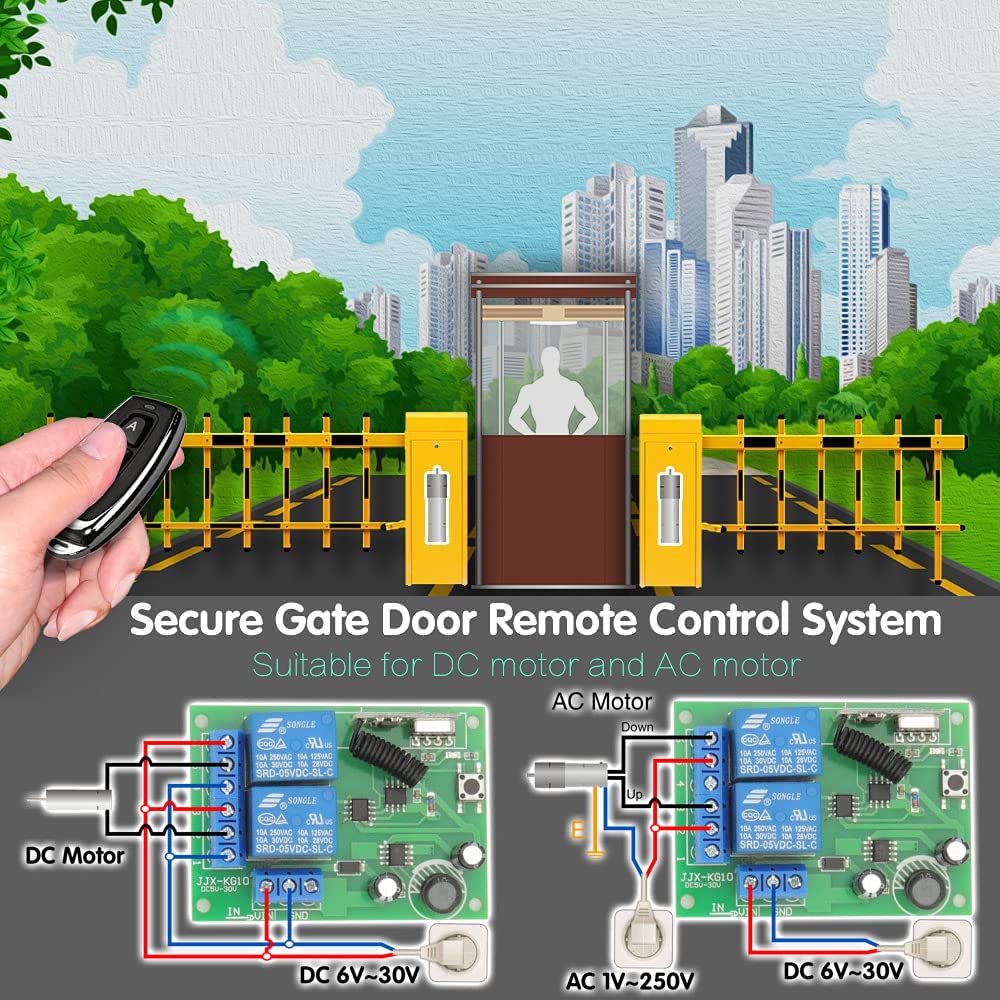

• Remotely operate devices such as garage doors, lighting, fans, shutters, gates, and other compatible loads.
• Ideal for homes, farms, factories, offices, laboratories, and small businesses—supporting simple wireless automation.

Why this DieseRC kit stands out

Designed for reliability and long-term use, the dual-relay receiver handles frequent switching while remaining stable. The 10A relay rating paired with a 15A terminal capacity accommodates common loads, and the 6–30V DC range offers flexibility for 12V and 24V systems. The 433MHz link, combined with the EV1527 code, provides practical, wireless control without complicated wiring.

Specifications at a glance

• Voltage: DC 6–30V (suitable for 12V and 24V configurations)
• Relays: 2 x 10A with NO/COM/NC terminals
• Power: 10A rated relay; 15A high-power terminal
• Frequency: 433MHz RF with learning code EV1527
• Transmitters: includes 2 remote key fobs; supports about 20 transmitters per receiver
• Range: up to ~30 meters line of sight; capable of penetrating common obstacles
