CHISWEAR Twist-Lock Thermal Photocontrol with Time Delay – 120V Outdoor Dusk-to-Dawn Sensor

Overview

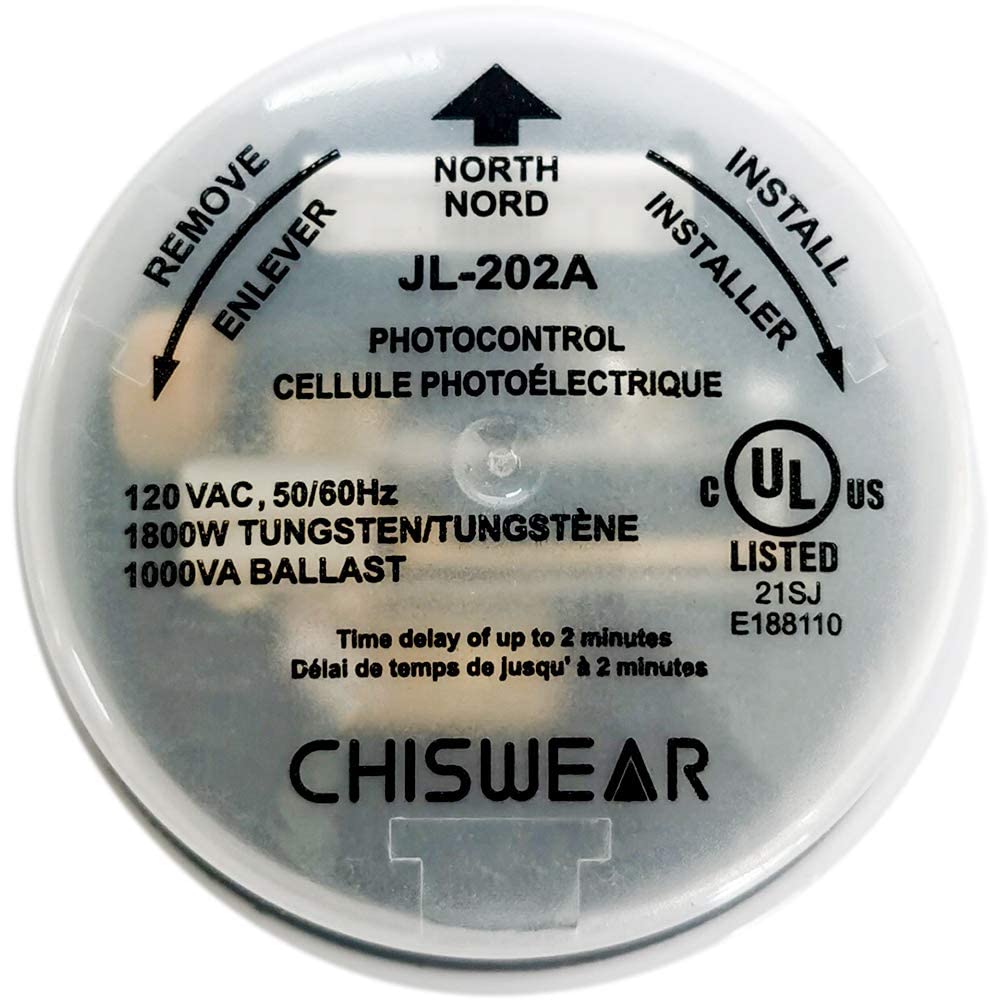

The CHISWEAR Twist-Lock Thermal Photocontrol with Time Delay is a compact 120V sensor designed for outdoor lighting. It works with standard twist-lock receptacles, delivering automatic daylight sensing to turn exterior lights on at dusk and off at dawn. The built-in time delay helps prevent nuisance cycling from brief light events, supporting steadier lighting behavior across outdoor spaces.

Whether you’re lighting a home entry, a barn, a driveway, or a landscape feature, this sensor offers dependable automation without requiring complex wiring. The combination of a simple turn-lock design and a robust control algorithm makes it a practical choice for many outdoor lighting setups.

Benefits at a glance

• UL-listed for safety and broad fixture compatibility, suitable for residential and commercial applications.
• Low power draw (up to 1.5 W) while managing the lighting load.
• Wide operating range: works in extreme temperatures (-40°C to 70°C) and high humidity (up to 96% RH).
• Autonomous dusk-to-dawn operation reduces manual adjustments and keeps exterior lighting ready when you need it.

Ideal applications

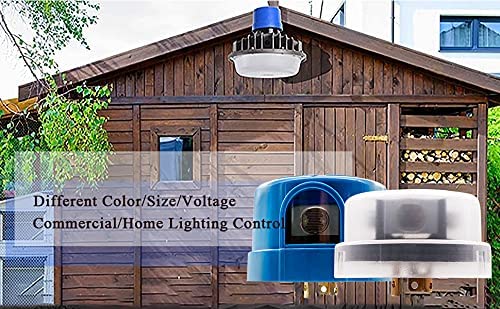

• Outdoor lighting for homes, barns, posts, and entryways requiring reliable dusk-to-dawn control.
• Exterior lighting along streets, parking lots, pedestrian pathways, and landscape features to enhance safety and curb appeal.

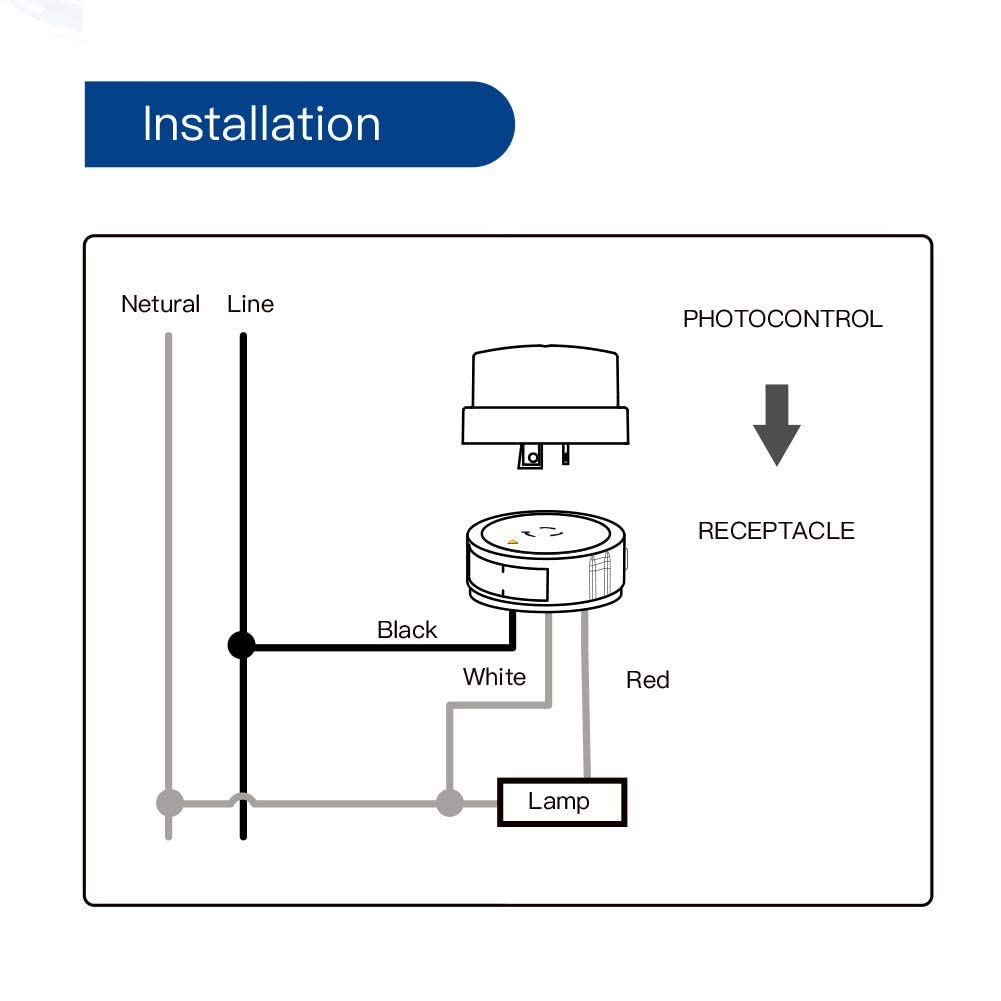

Installation & specifications

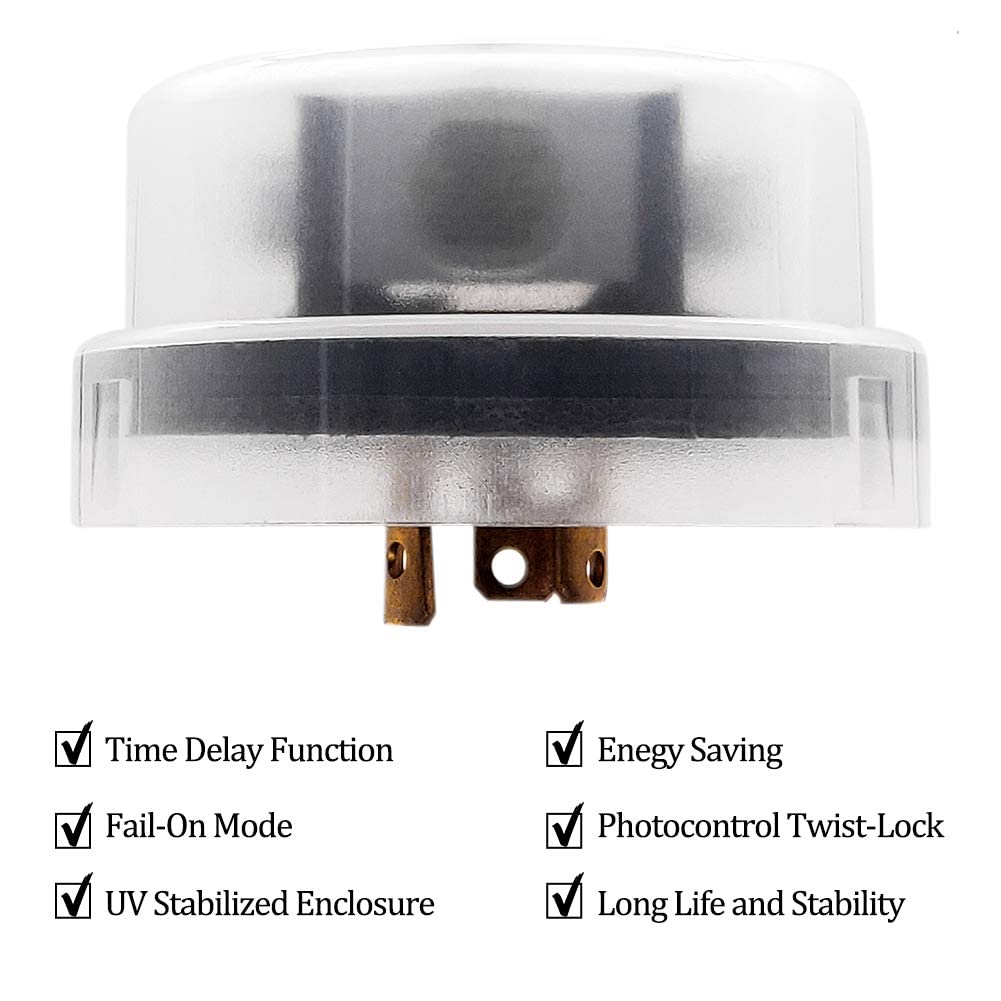

The sensor is designed for standard NEMA twist-lock receptacles, making replacement or maintenance straightforward. It supports 120V AC, 50/60 Hz operation with a maximum of 1.5 W power consumption and functions across a broad temperature range from -40°C to 70°C. The device is rated for environments up to 96% relative humidity and operates with on/off lux thresholds at approximately 10–20 lux for turn-on and 30–60 lux for turn-off, enabling automatic, daylight-driven lighting control.

Certifications and practical use considerations are included to support safe, street-to-garden outdoor lighting installations. Consider this CHISWEAR solution when you want reliable, automatic exterior lighting without frequent manual adjustments.
