Chibery 10 Pack 3/4-Inch Overlay 4D Soft-Close Concealed Hinges – Satin Nickel

Overview

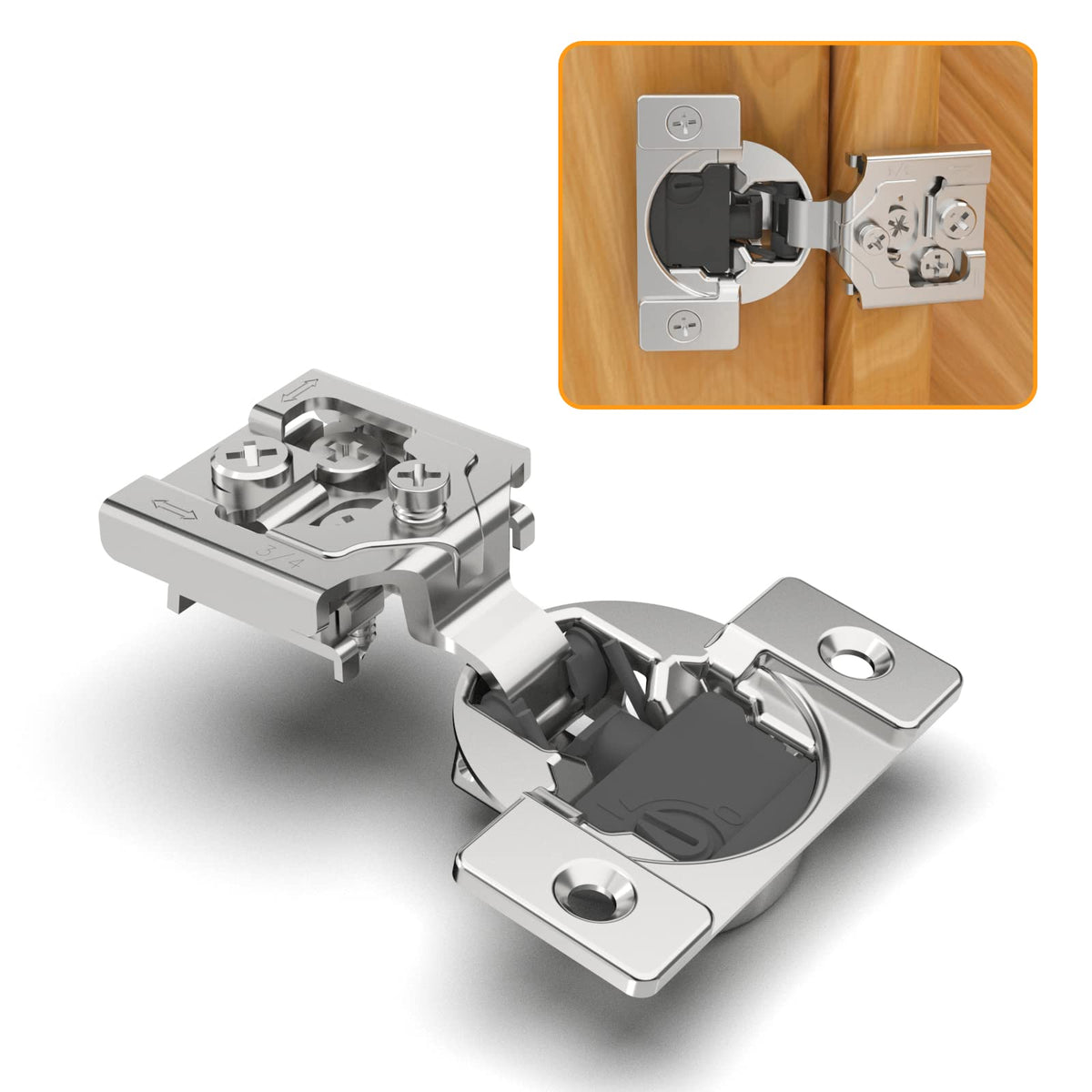

Elevate your cabinetry with Chibery’s 10-pack of 3/4-inch overlay 4D soft-close concealed hinges designed for face-frame doors. The satin nickel finish brings a crisp, modern touch to kitchens, pantries, and living areas, while the hinges deliver smooth, controlled closing. This set is built for daily use, helping your cabinets feel more refined without sacrificing reliability.

Key design and fit

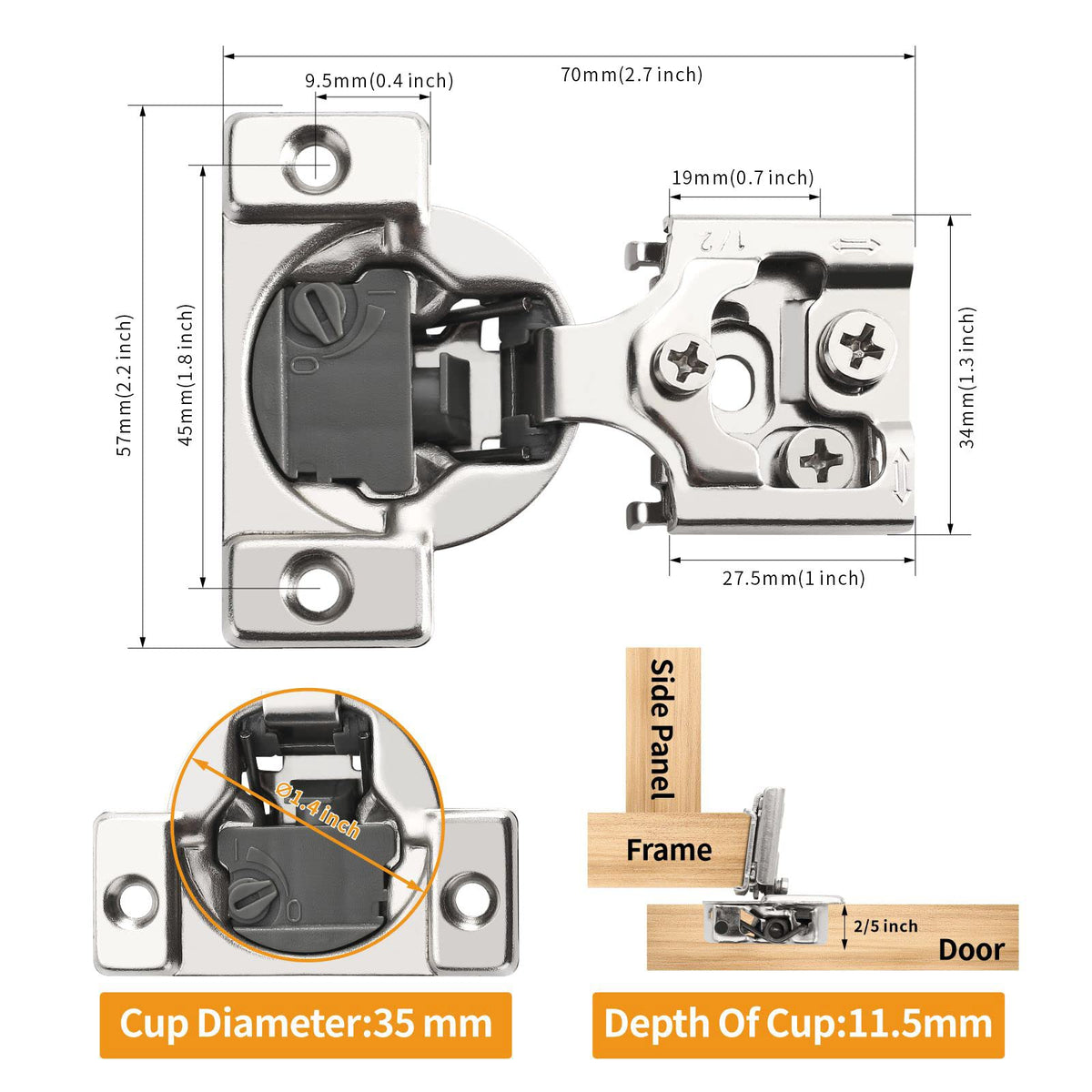

Plan with precise specifications in mind: cup diameter 35mm; cup depth 11.5mm; screw holes distance 45mm; opening angle 105 degrees. Suitable for most cabinet door styles, the kit includes 2 easy-on dowels and 3 self-tapping screws to help you achieve a secure, clean installation.

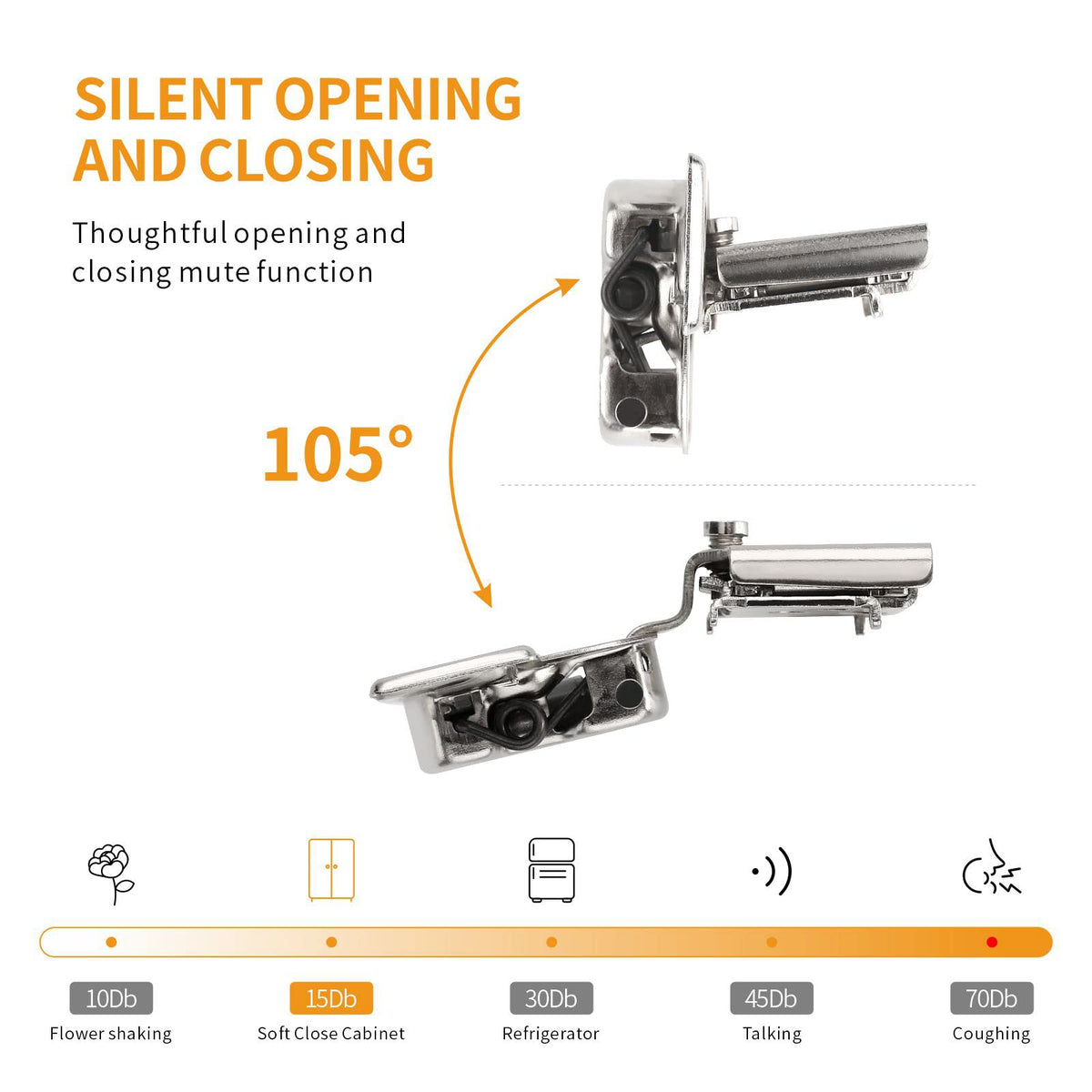

• 105° opening for good access while keeping doors stable.

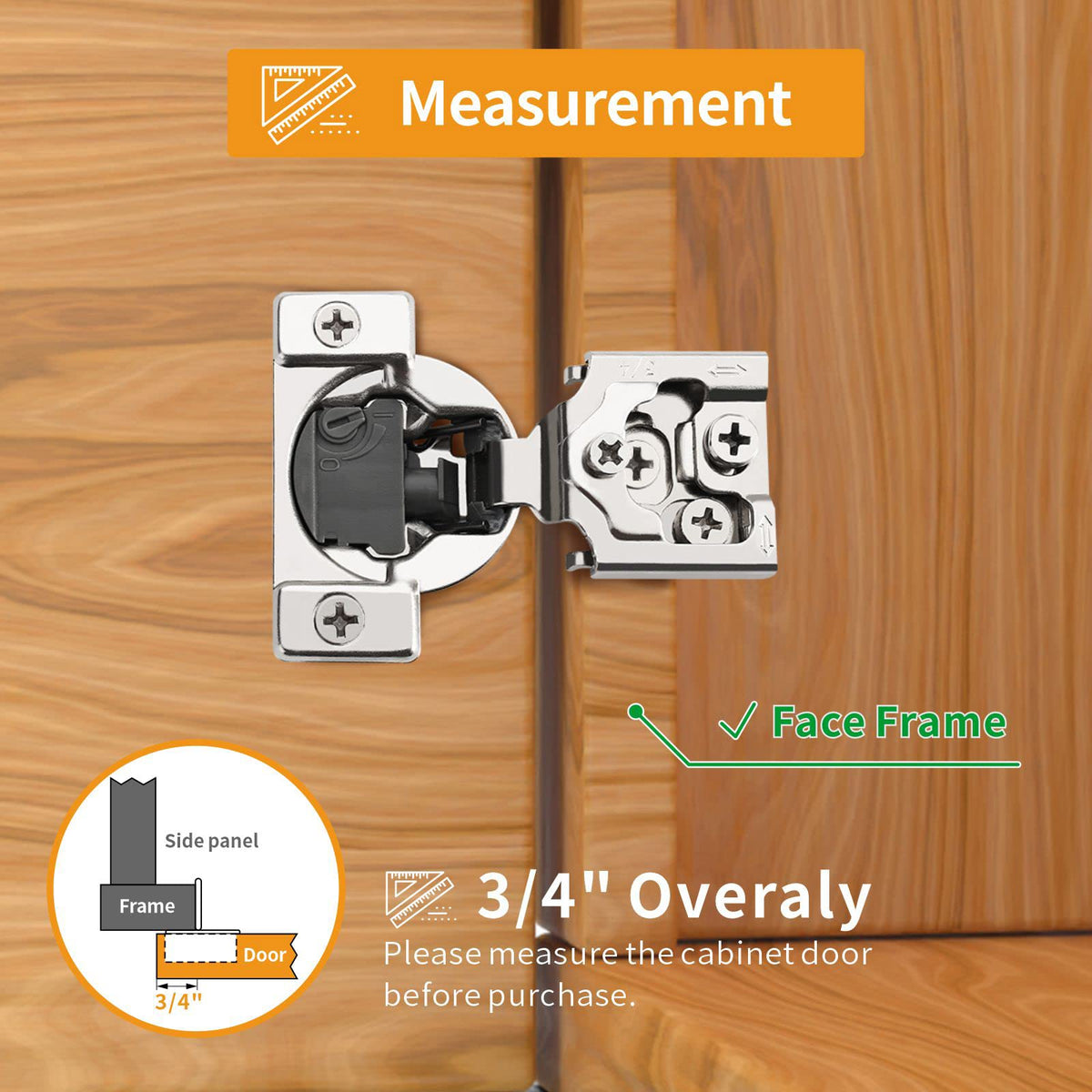

• 3/4-inch overlay tailored for face-frame construction.

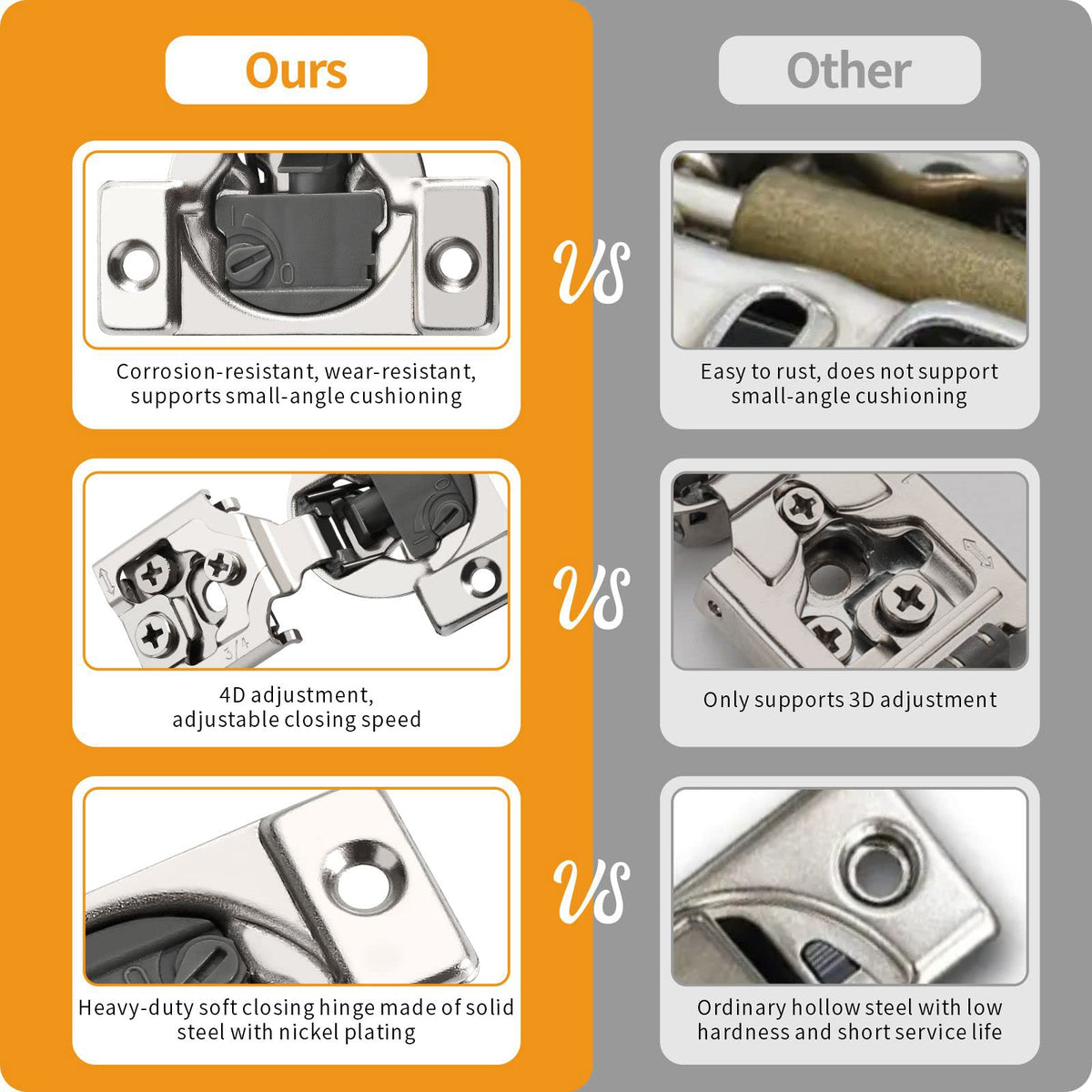

• Double electroplated steel with nickel finish and brass-plated bottom for lasting wear.

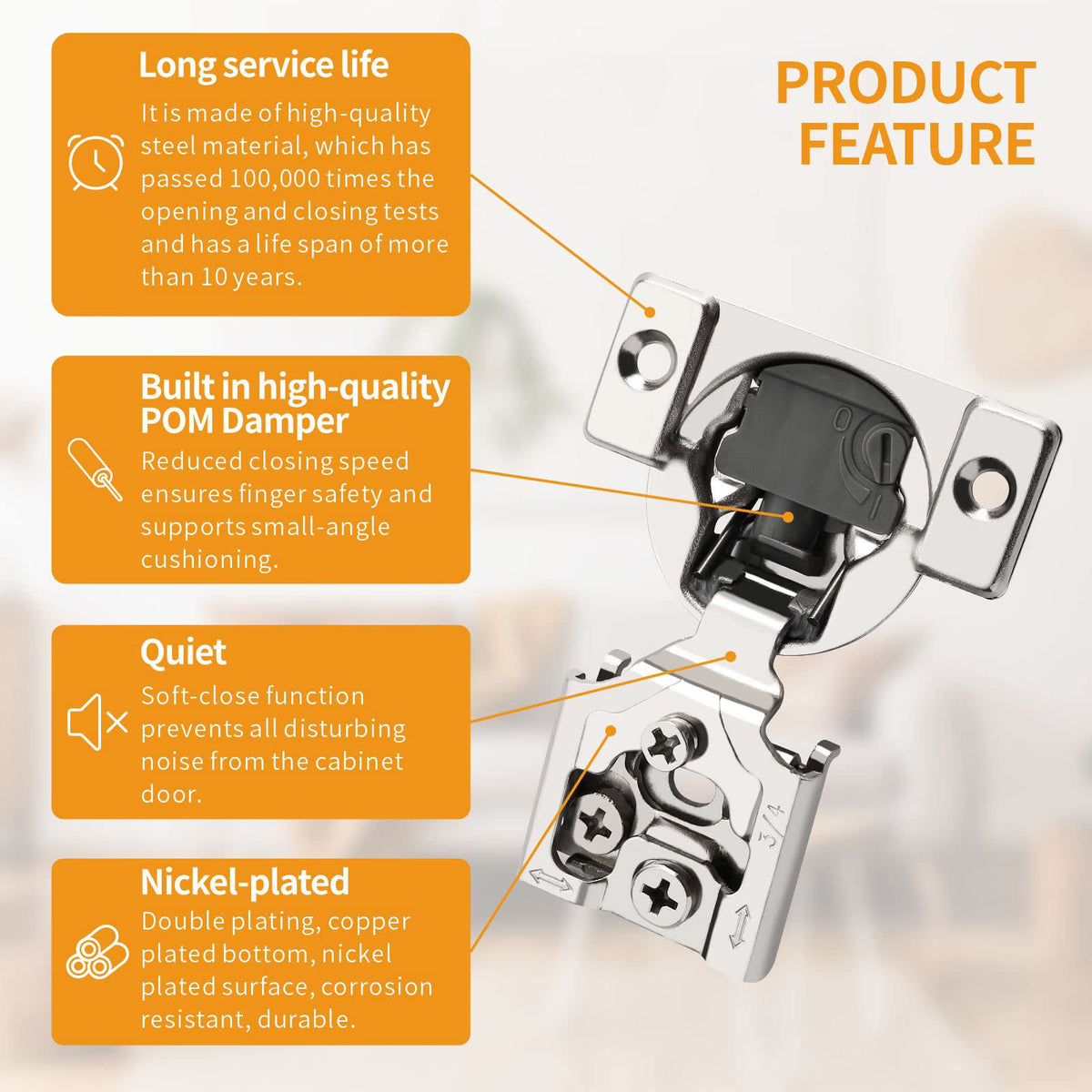

Soft-close and finger protection

The built-in POM damper slows the close, reducing noise and wear while supporting a smaller soft-close angle to help protect fingers during use or adjustment.

• Quieter operation that minimizes kitchen disturbance.
• Gentle close helps prevent abrupt slams and jarring movements.

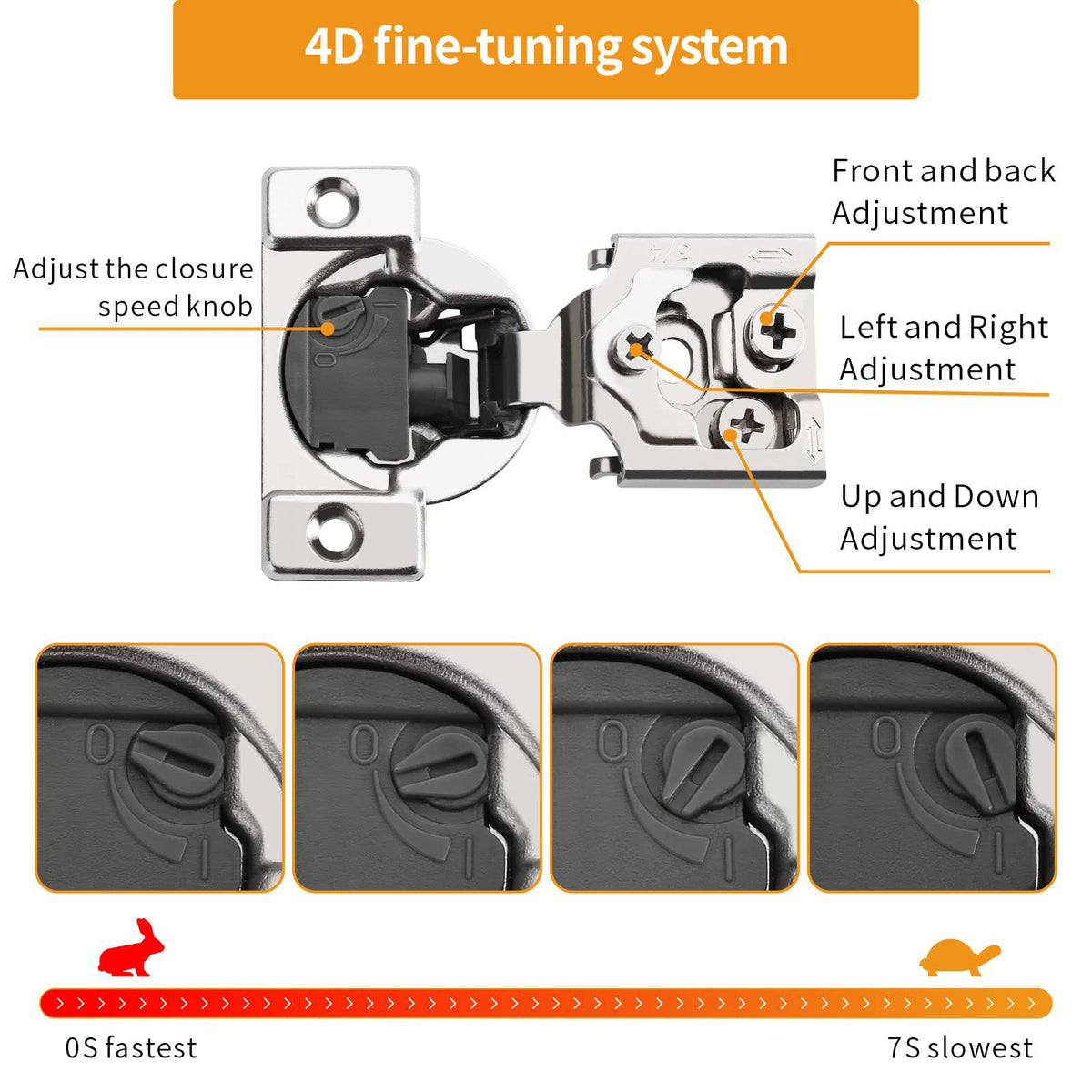

4D adjustability

Fine-tune door alignment with four dimensions. Adjust vertically, horizontally, depth, and closing speed (0–7 seconds) with a simple screwdriver to keep doors level and opening smoothly over time.

• Vertical and horizontal alignment to close gaps evenly.
• Depth control to prevent sag and misalignment.
• Closing-speed control to match door weight and desired feel.

Durability and standards

These hinges are built for real-world use and backed by certifications. They withstand extensive opening/closing cycles and have passed salt-spray testing, offering confidence for kitchens, wardrobes, TV cabinets, and display cases alike.

• ISO 9001 and ISO 14001, BHMA, KCMA, SGS certified.
• Designed for 100,000+ open/close cycles.
• Salt spray resilience test to demonstrate long-term durability.

What you get

Each hinge in the set contributes to a cohesive system for face-frame doors, featuring a robust steel core and durable plating. The included hardware supports a straightforward install, helping you refresh cabinetry with a clean, integrated look.
