Calculated Industries 6135 Scale Master Pro XE | Advanced Digital Plan Measure for Estimating Takeoffs | 91 Scales + 10 Custom Scales

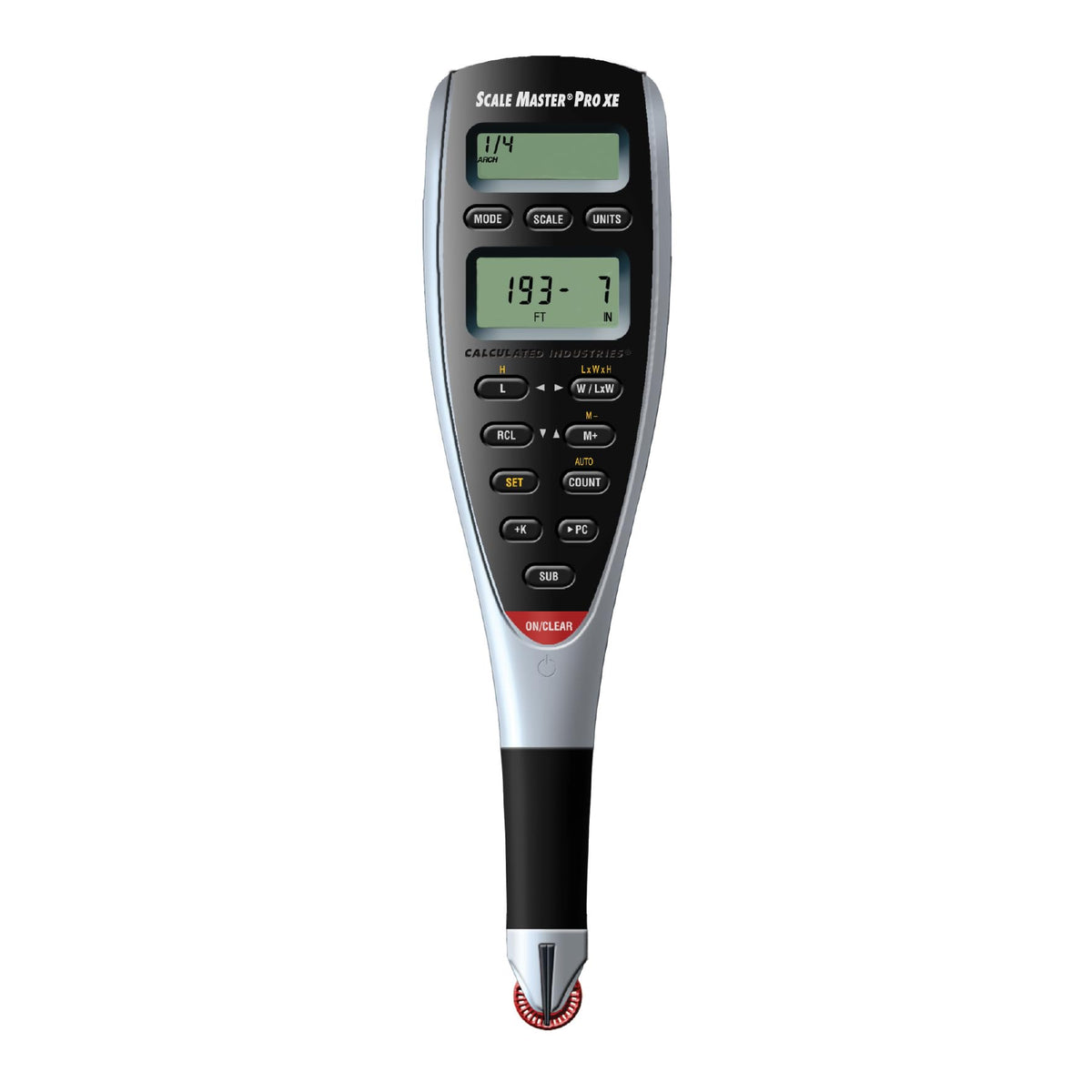

Scale Master Pro XE at a glance

The Scale Master Pro XE is a digital plan measure crafted for construction professionals who move between the field and the office. Its high visibility red wheel rolls smoothly across printed plans, drawings, and maps to capture linear distances, square areas, and cubic volumes with clear feedback. This device is built to streamline takeoffs without the need for traditional scale rulers, helping teams translate sketches into precise numbers with less manual transcription.

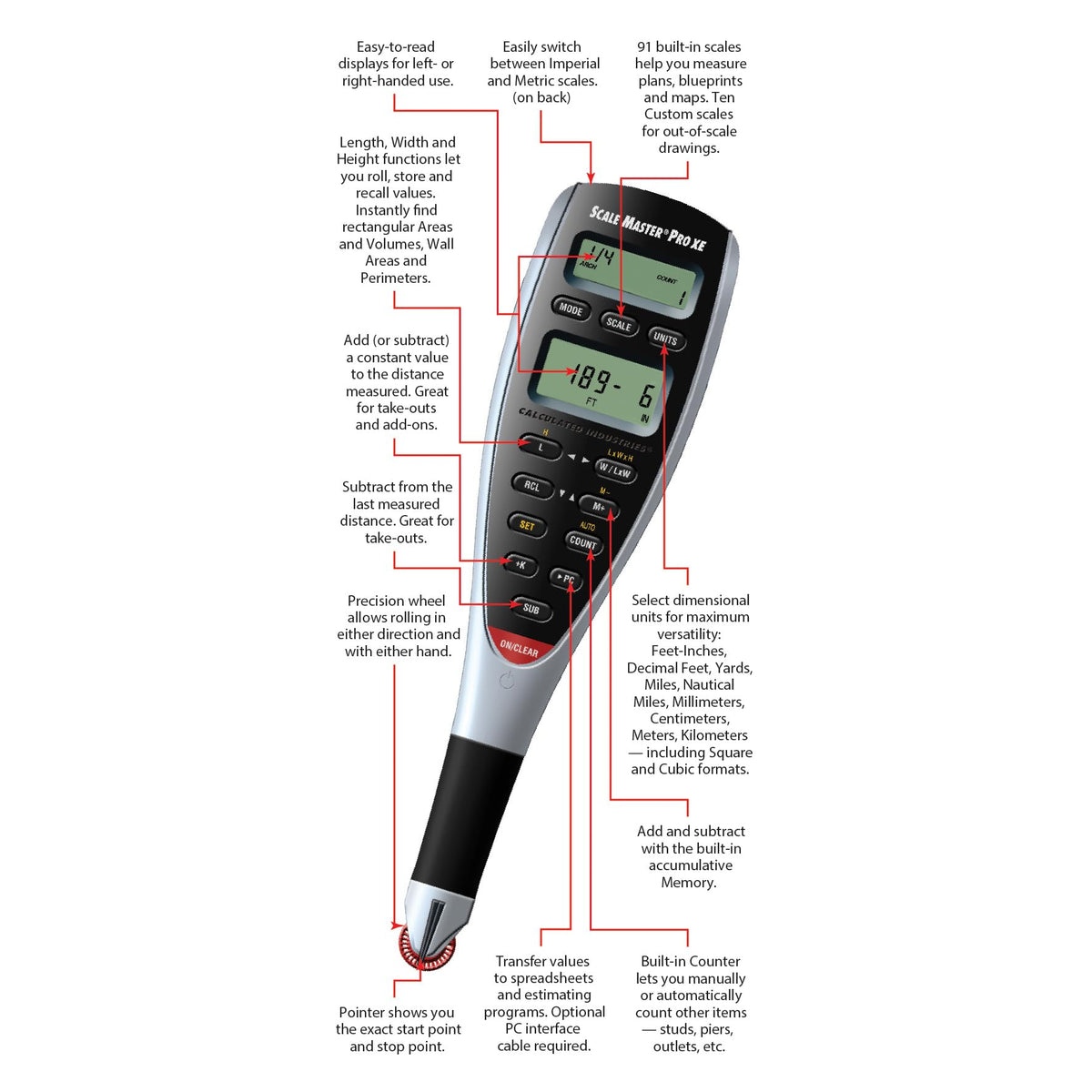

Key capabilities you can rely on

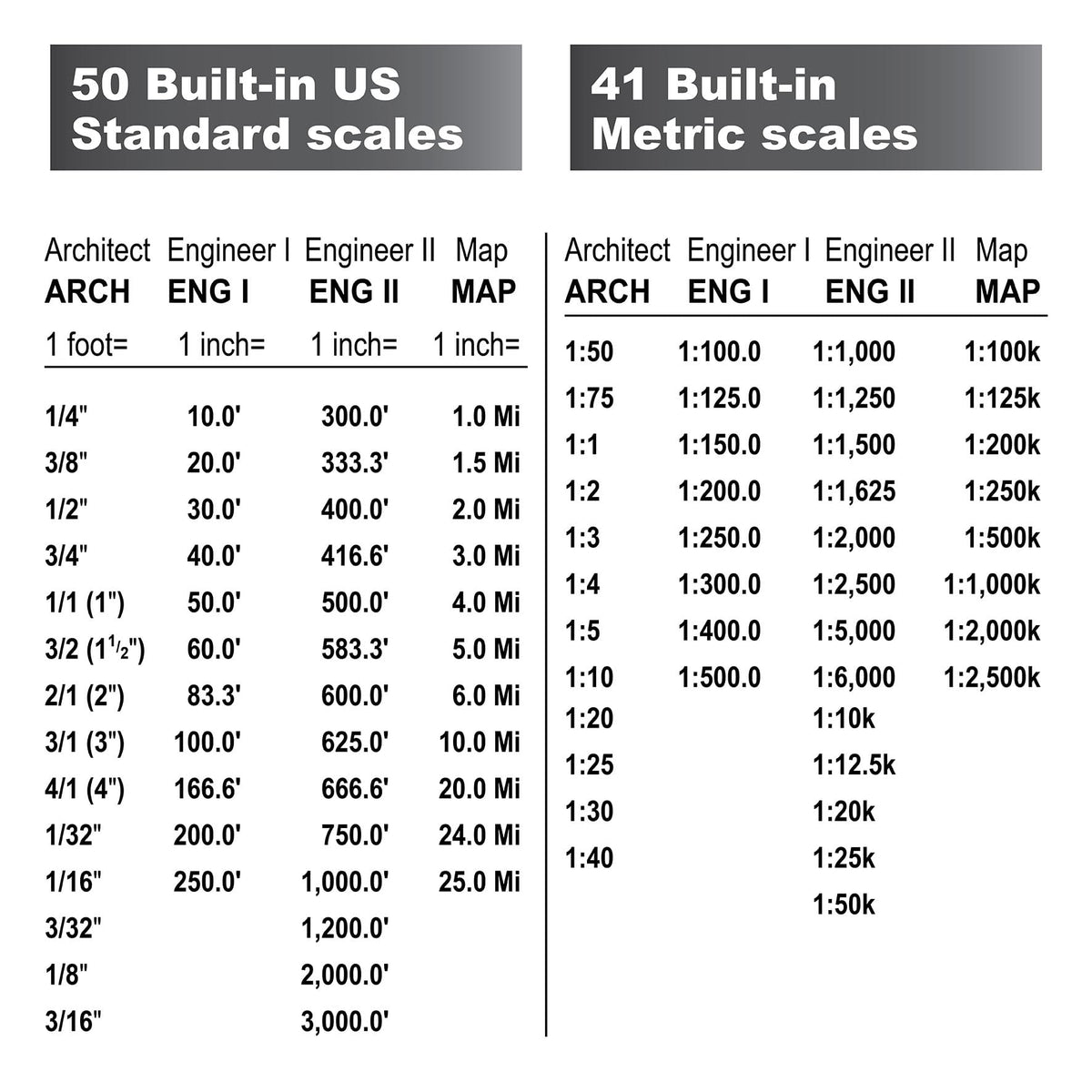

• 91 architectural and engineering scales spanning US and Metric formats
• 50 US and 41 Metric scales with multiple units such as decimal feet, feet-inches, decimal inches, yards, millimeters, and meters
• Includes square and cubic formats for comprehensive area and volume calculations
• 10 custom scales to calibrate out of scale plans or plan books
• Manual counter and Auto-count plus a Subtract function for efficient takeoffs
• Scale-lock and seamless US/Metric mode switching for diverse project needs

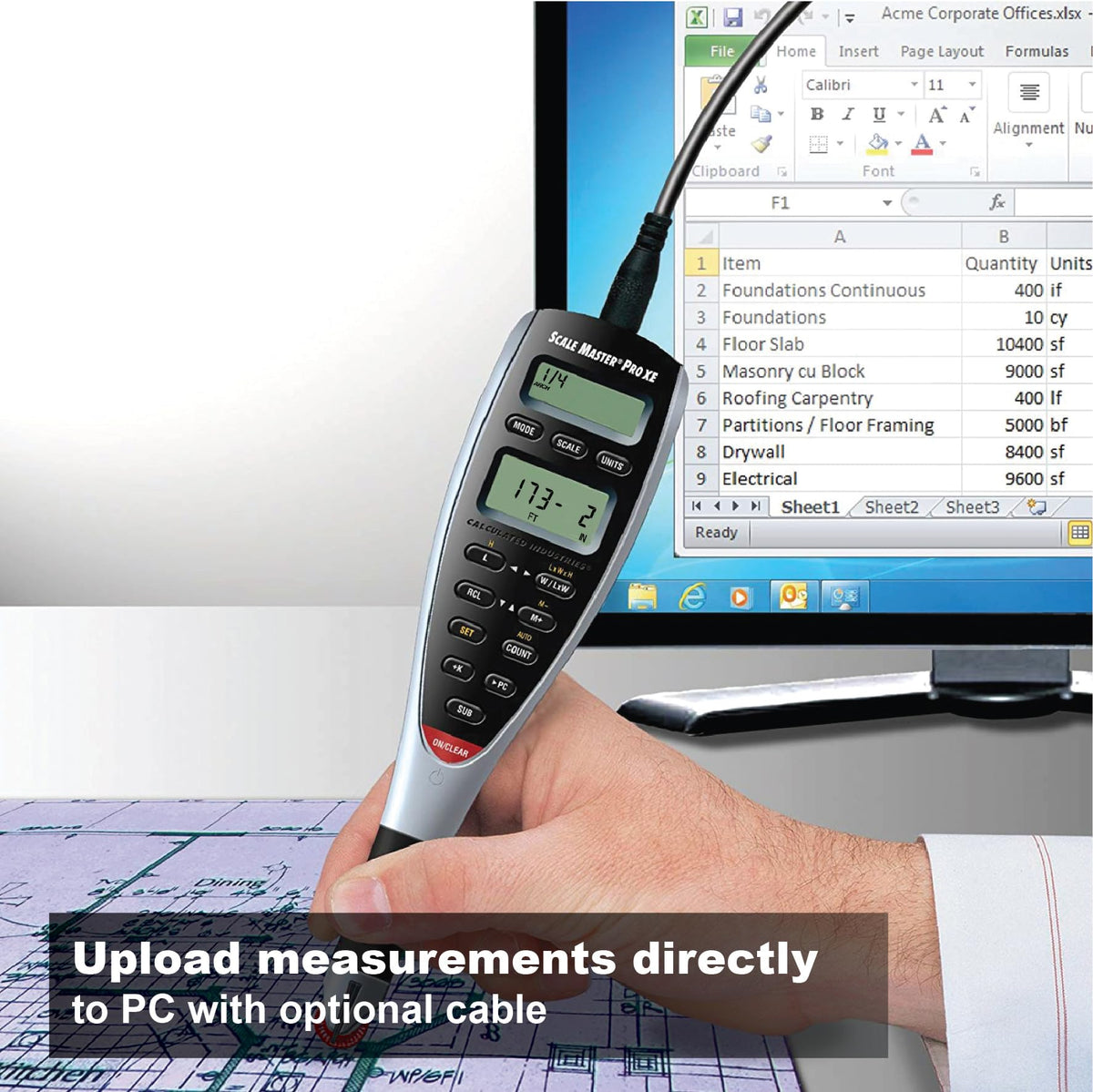

• Optional PC interface to export rolled values to Windows estimating or spreadsheets
• Built-in memories to store area and volume values for quick re-use

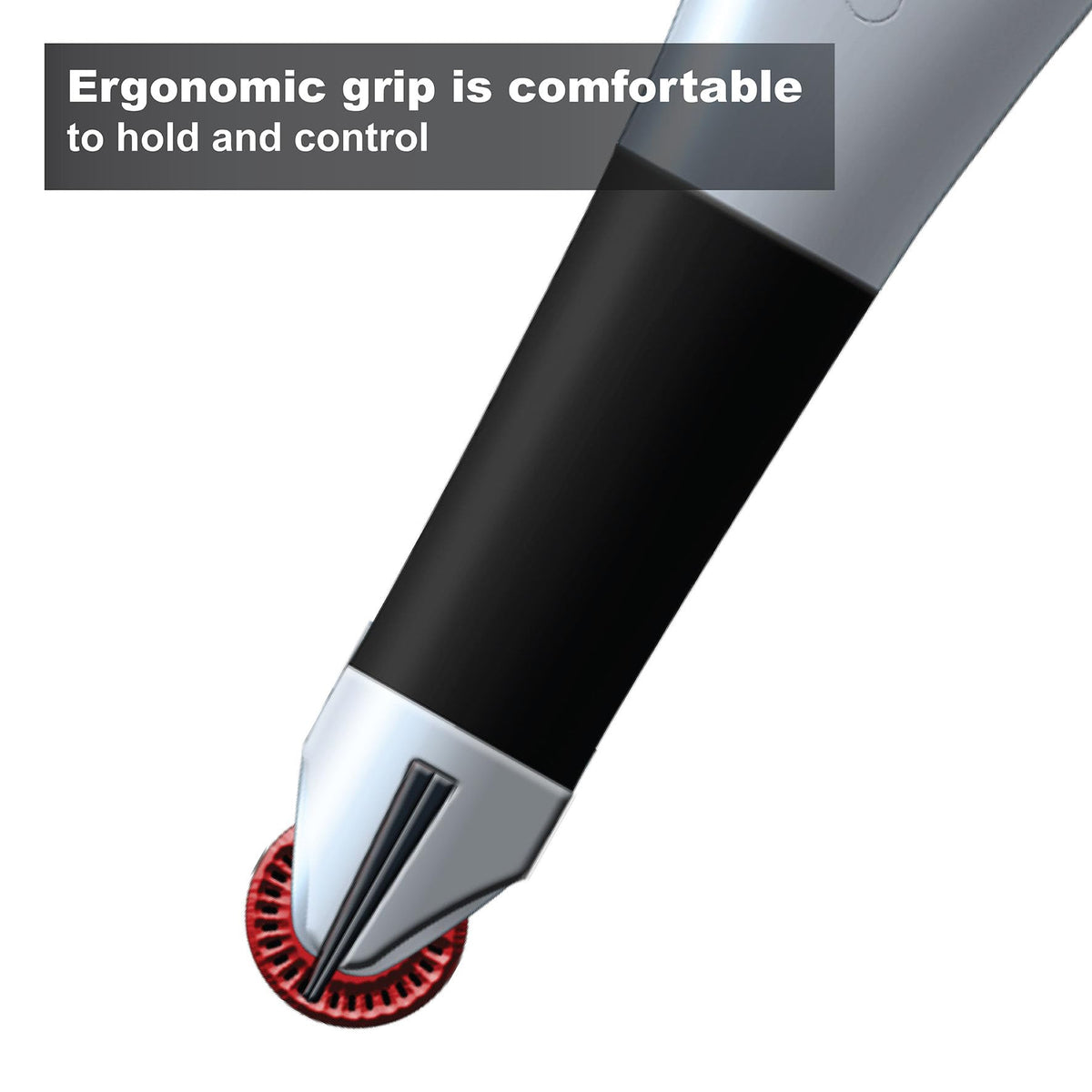

• Ergonomic design with a dual LCD display for left or right handed use

Real-world use cases

Use it on the jobsite, in the office, or even on a vehicle hood to capture measurements and order materials with confidence. The tool shines when plans are reduced, enlarged, faxed, or scanned, thanks to its 10 adjustable scales that help you stay aligned with the true plan intent. Rolling distances and calculating areas can be done in minutes, enabling faster progress from plan review to material orders.

• Quickly derive linear distances for framing layouts or trench planning
• Estimate areas for surface finishes or sitework with rapid feedback
• Compute volumes for excavation, concrete, or fill based on plan depth or height
• Store recurring values and perform straightforward adds or subtractions to assemble totals

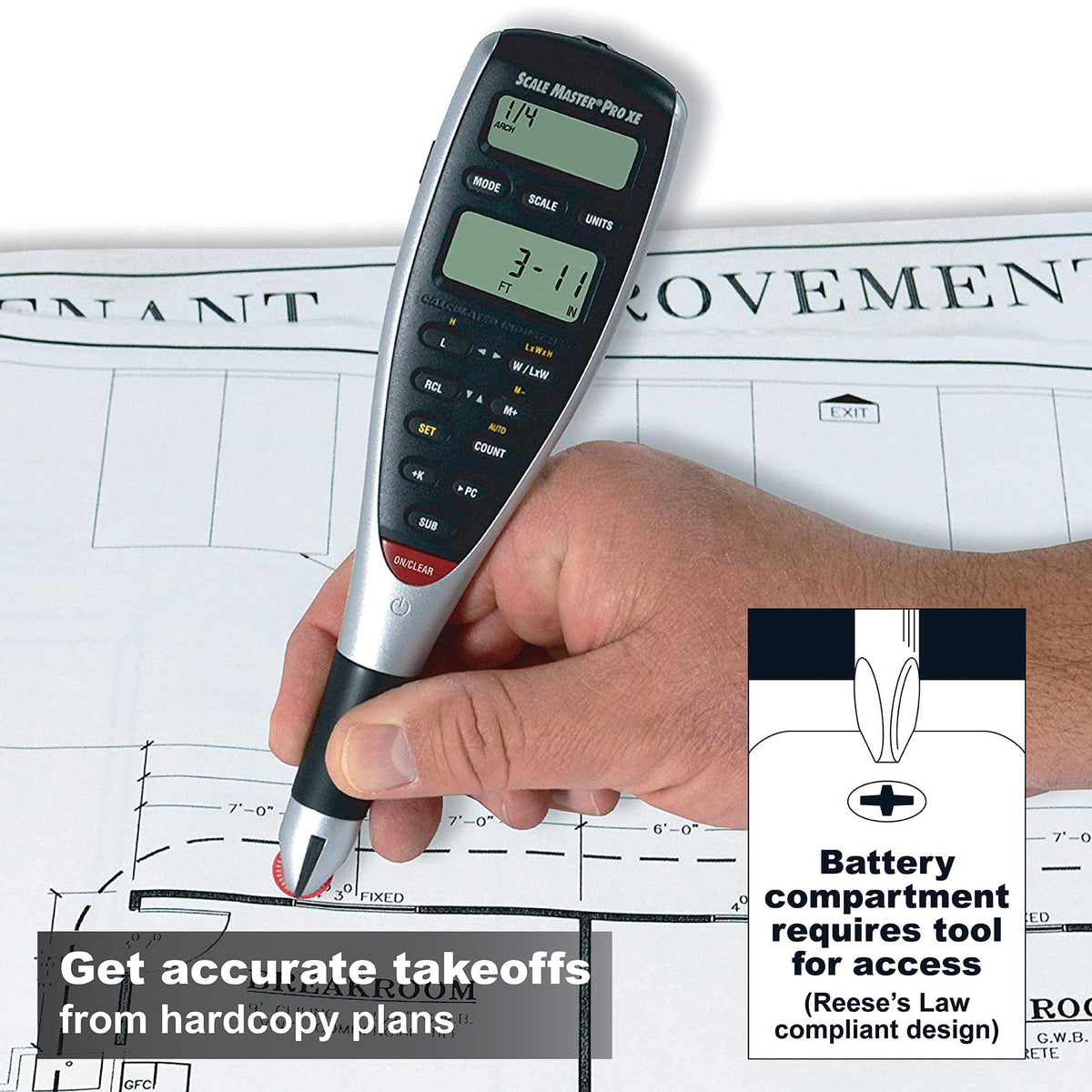

Designed to support real workflows, the Pro XE emphasizes practical accuracy with start and stop points and scale magnitude, giving users a realistic sense of error margins in everyday use. The complete kit includes a protective case, batteries, a user guide, and a safety-conscious battery compartment.

What’s in the box

• Scale Master Pro XE unit
• Protective hard case
• Two long-life batteries
• User guide and quick-start material
• Battery safety-compliant tool secured compartment

Whether you are estimating from blueprints at the office or validating quantities on site, the Scale Master Pro XE is built to support efficient, dependable takeoffs. It is PC compatible and can be upgraded with optional accessories to fit evolving workflow needs.
