BTF-LIGHTING WB5 5in1 Tuya WiFi PWM LED Controller — RGB/RGBW/CCT, Alexa & Google Home Compatible

Smart dimming and color control for non-addressable LED strips

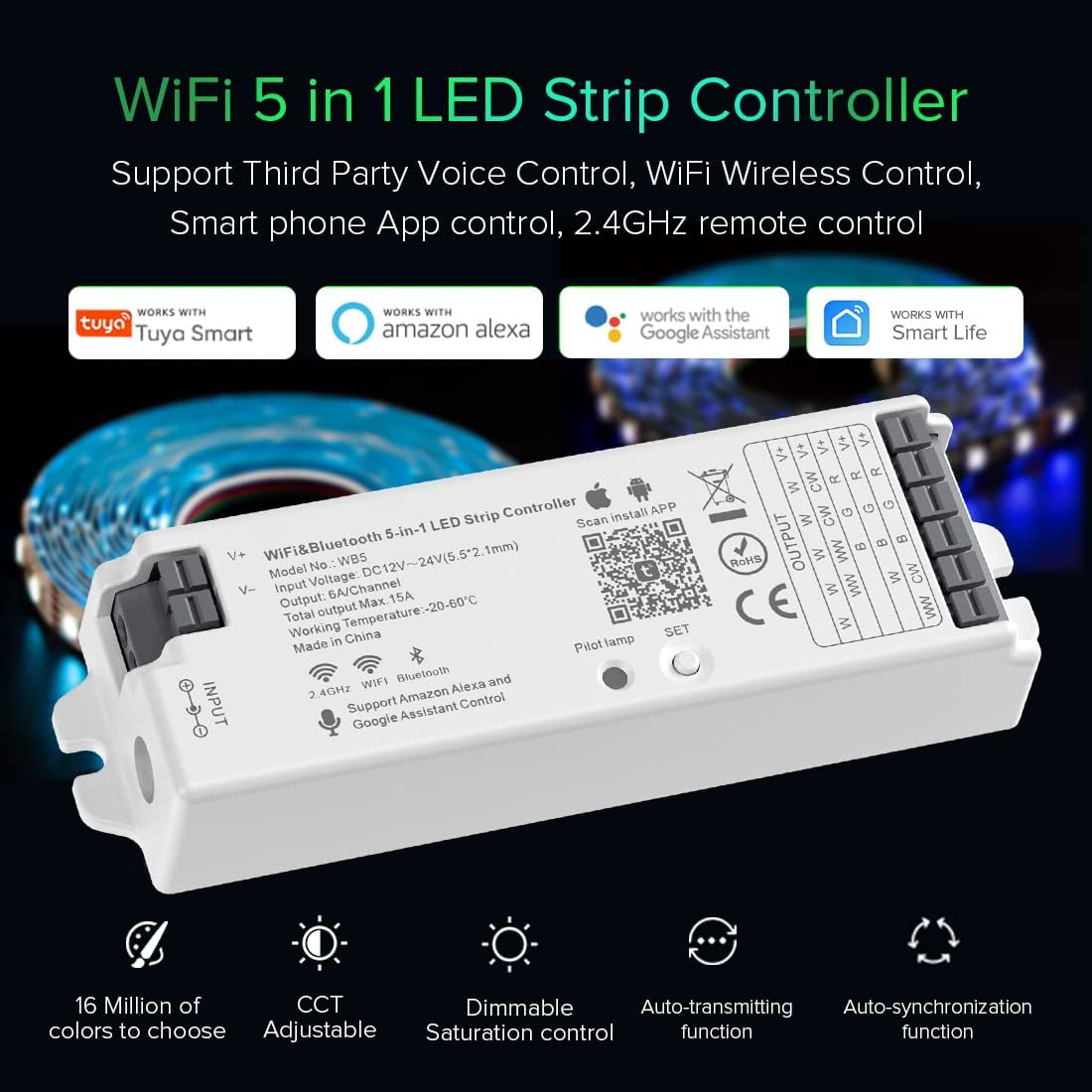

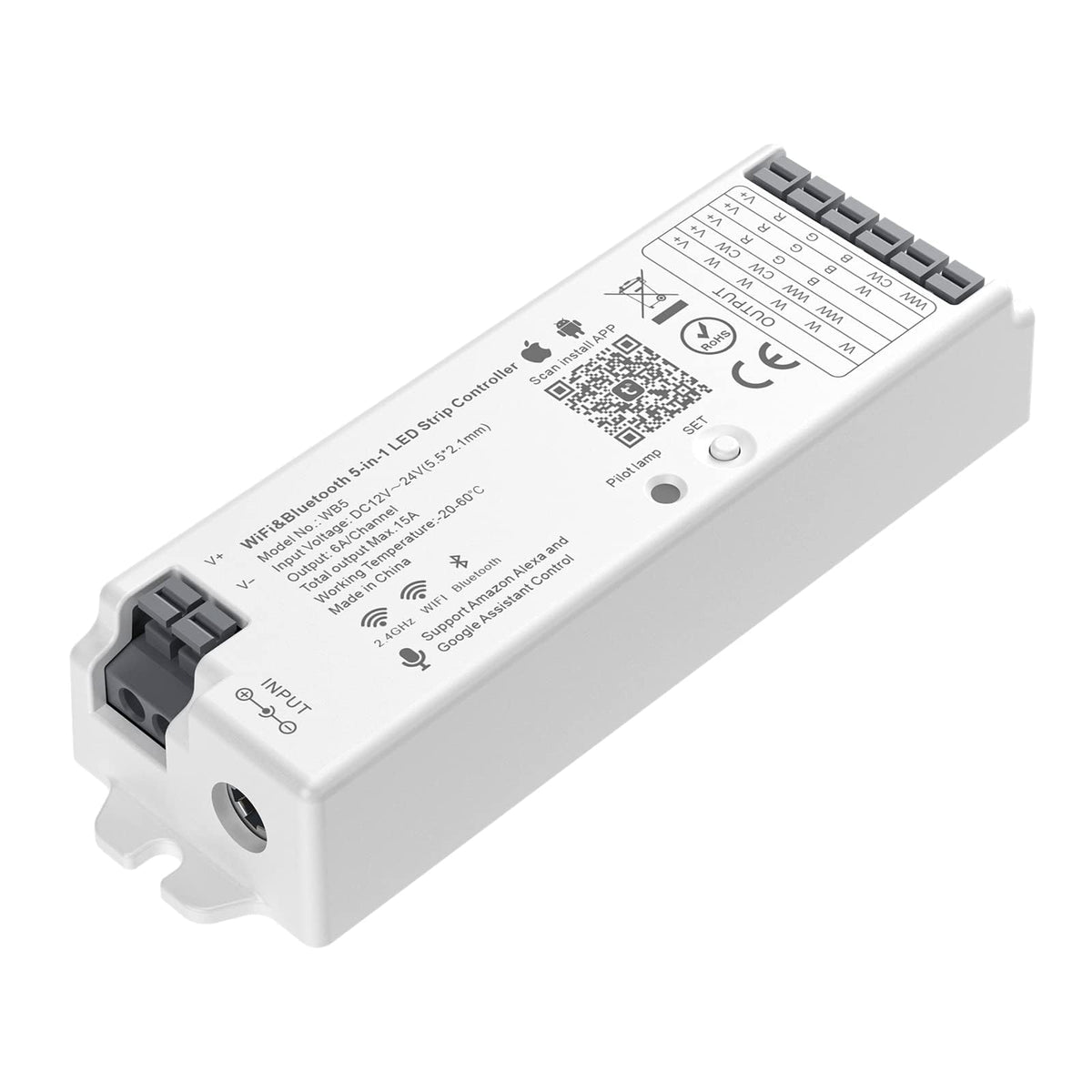

The BTF-LIGHTING WB5 5in1 is a versatile PWM controller that brings smart lighting to standard LED strings. Designed for DC12V-24V strips, it adapts to a variety of builds, from under-cabinet lighting to ambience in living spaces. With five integrated modes, you can run single-color dimming, CCT (adjustable white warmth), RGB color cycling, RGBW color plus white, or RGB combined with CCT—without needing extra hardware.

What makes WB5 flexible

Each output channel supports up to 6A, with a total ceiling of 15A, delivering reliable performance for typical LED strips. When operated at 12V, the controller can handle up to 180W; at 24V, up to 360W. This makes it a practical choice for mid-size setups such as backlighting, decorative runs, or accent lighting behind furniture.

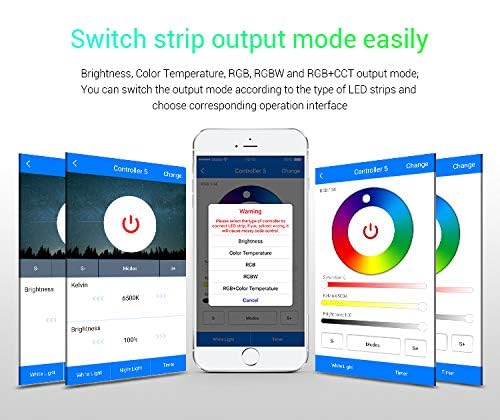

• 5-in-1 configuration: Single Color, CCT, RGB, RGBW, or RGB+CCT via a single box.
• Voltage range and power: DC12V-24V, 6A per channel, up to 180W (12V) or 360W (24V) total.
• Not compatible with addressable LED strips: WS2811/WS2812/WS2813-style ICs require different hardware.

Control on your terms

The WB5 supports three control methods, and you can mix them for convenience. Use a 2.4GHz RF remote to change brightness and scenes from across the room, connect via the Tuya Smart / Smart Life app for phone control, or voice‑activate through Alexa or Google Home. These options work together, so you can set up automated scenes or quick-access controls that fit your daily routine.

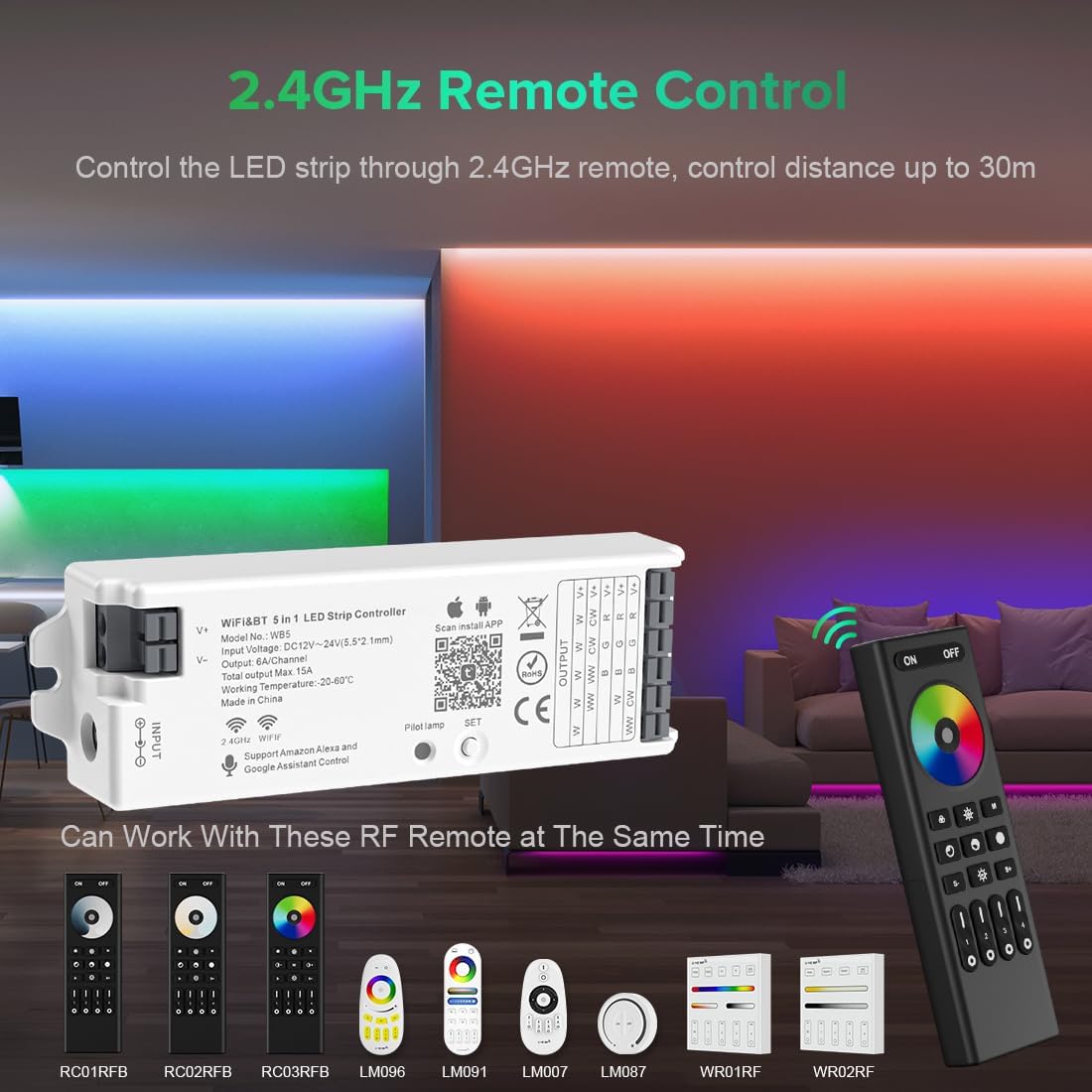

• RF remote WR01RF and related remotes provide tactile, on-wall or on-table control.
• Tuya Smart Life / Smart Life app enables remote configuration and scheduling.
• Voice control through Alexa and Google Assistant adds hands-free operation.

Features that suit real living spaces

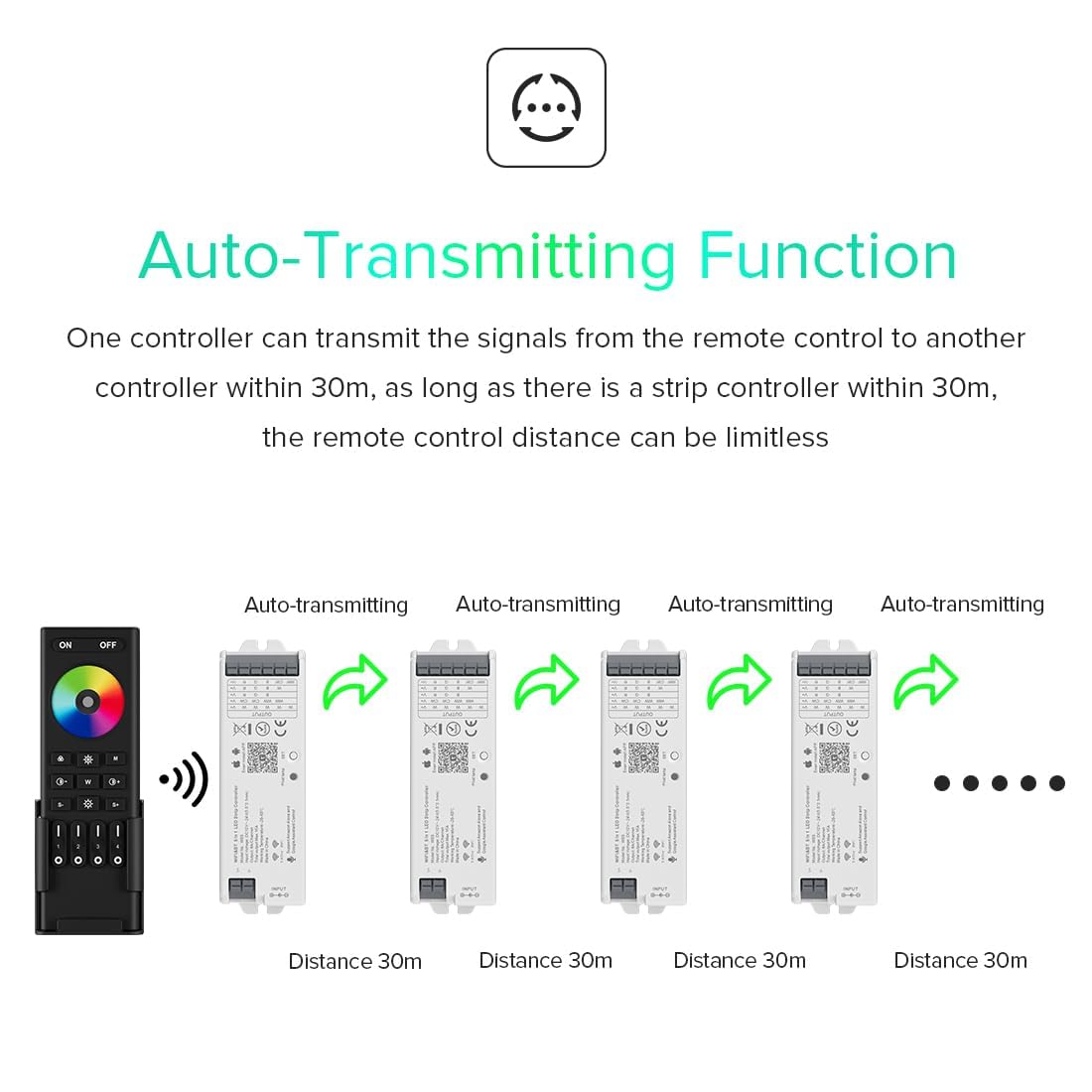

WB5 offers rich lighting features beyond color: 16 million RGB colors, dual white modes, brightness and saturation adjustments, group controls, and multi‑zone synchronization. Create tailored scenes for movie nights, wake-up routines, or festive settings. Timers, countdowns, and a sleep/wake plan help automate ambience without constant fiddling. An auto-transmit function can extend your remote’s reach to other WB5 units within 30 meters, while auto-synchronization lets multiple controllers stay in step when they’re started at different times.

• Scene customization, sleep-wake plans, and do-not-disturb mode for convenience.

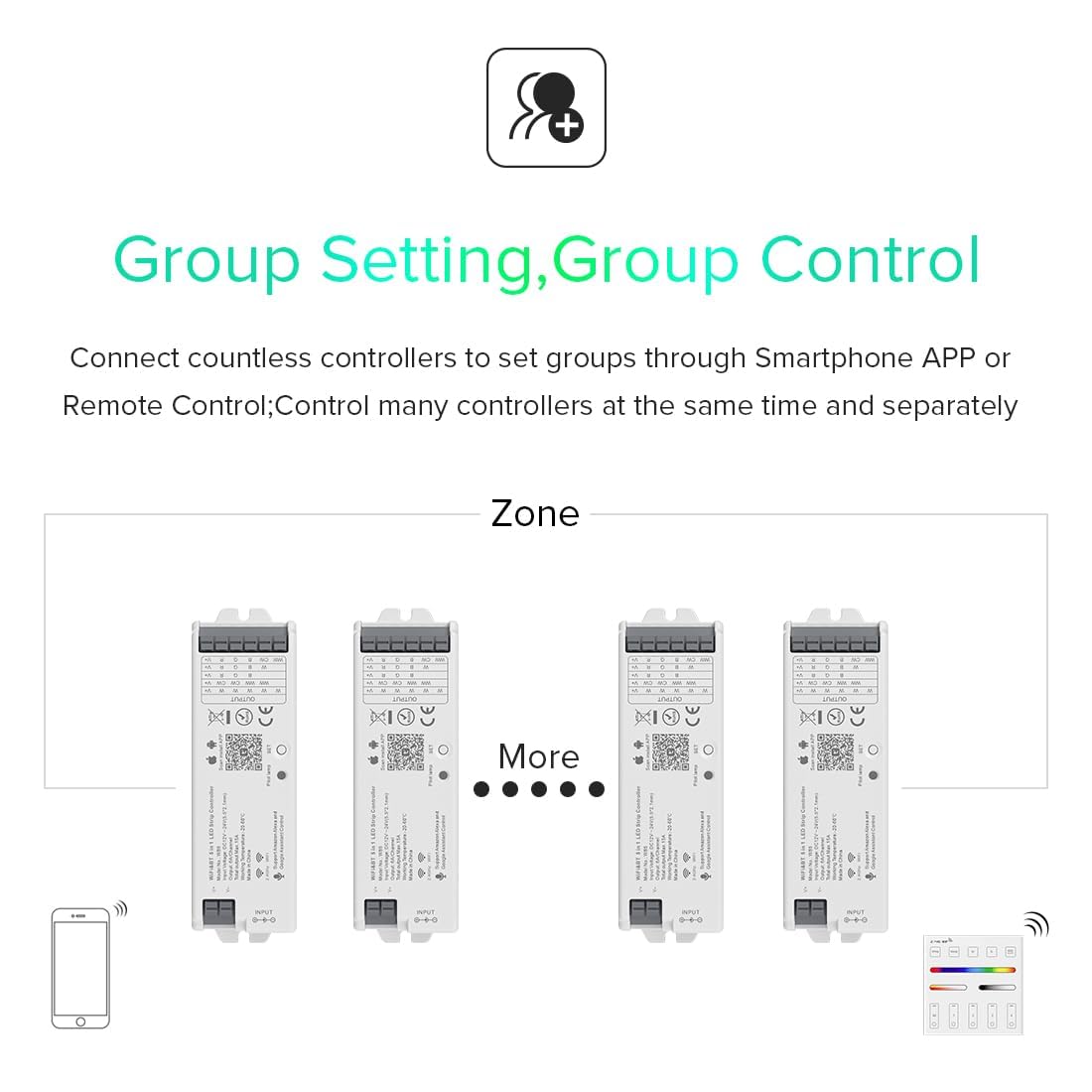

• Group and multi‑zone control to manage lighting in different rooms or areas.
• Auto-transmit and auto-synchronization for scalable multi‑unit setups.

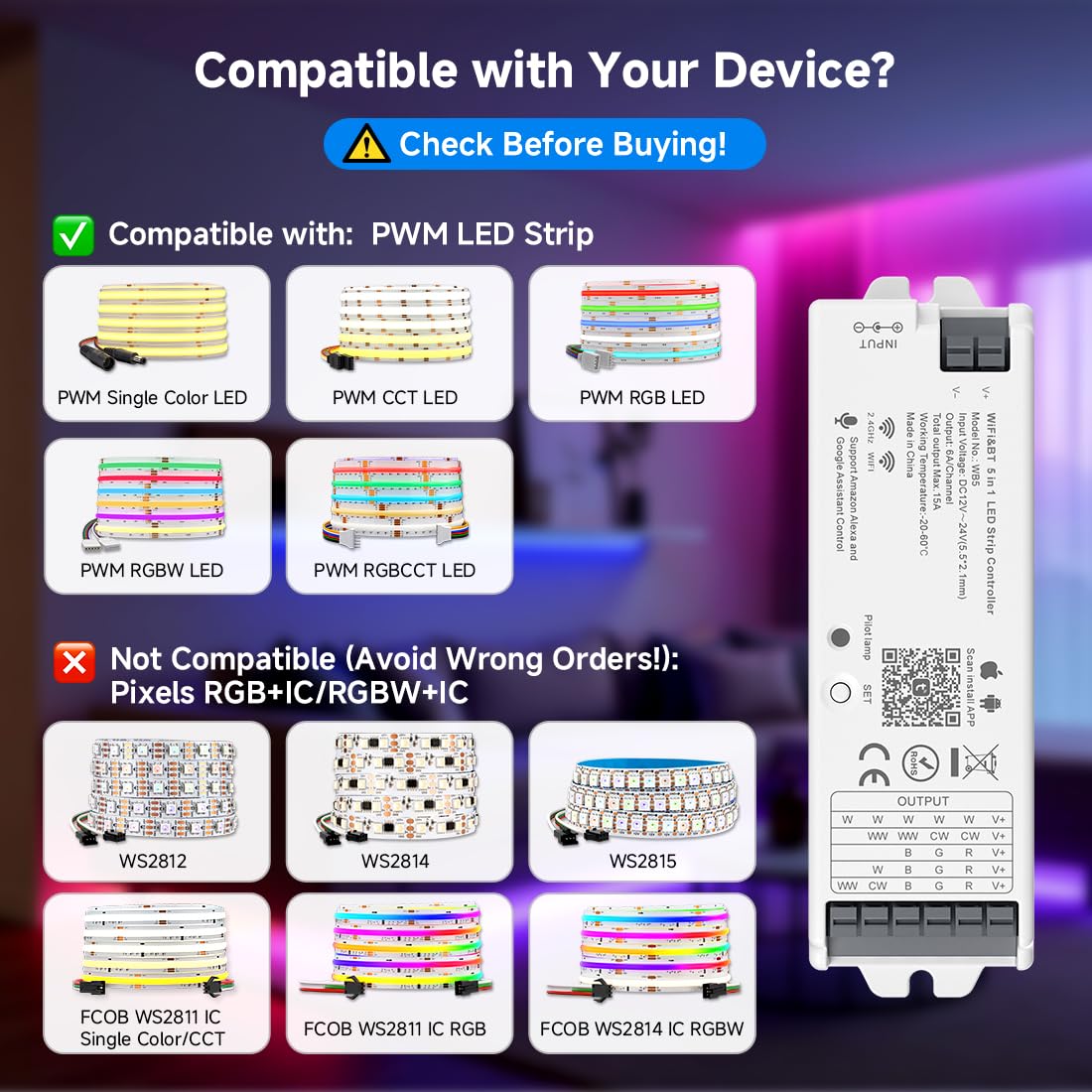

What to check before you buy

Before purchasing, confirm your LED strip type is non-addressable, and verify your power requirements align with the WB5’s specs. If you’re planning a simple dimmable/cool-warm white setup or a vibrant color accent, WB5 offers a compact, integrated solution that fits into standard 12V and 24V lighting projects.
