BTF-LIGHTING SP630E Bluetooth LED Controller — PWM, CCT, RGB, RGBW, RGBCCT, SPI TTL

Unlock versatile LED control with the SP630E Bluetooth Controller

The SP630E from BTF-LIGHTING is a multi-protocol LED controller designed to adapt to evolving lighting projects. Whether you’re dimming a simple monochrome strip or choreographing a full-color, addressable display, this device provides flexible options via Bluetooth and a dedicated app. The result can be easier experimentation, refined aesthetics, and mood-enhancing effects without complex wiring.

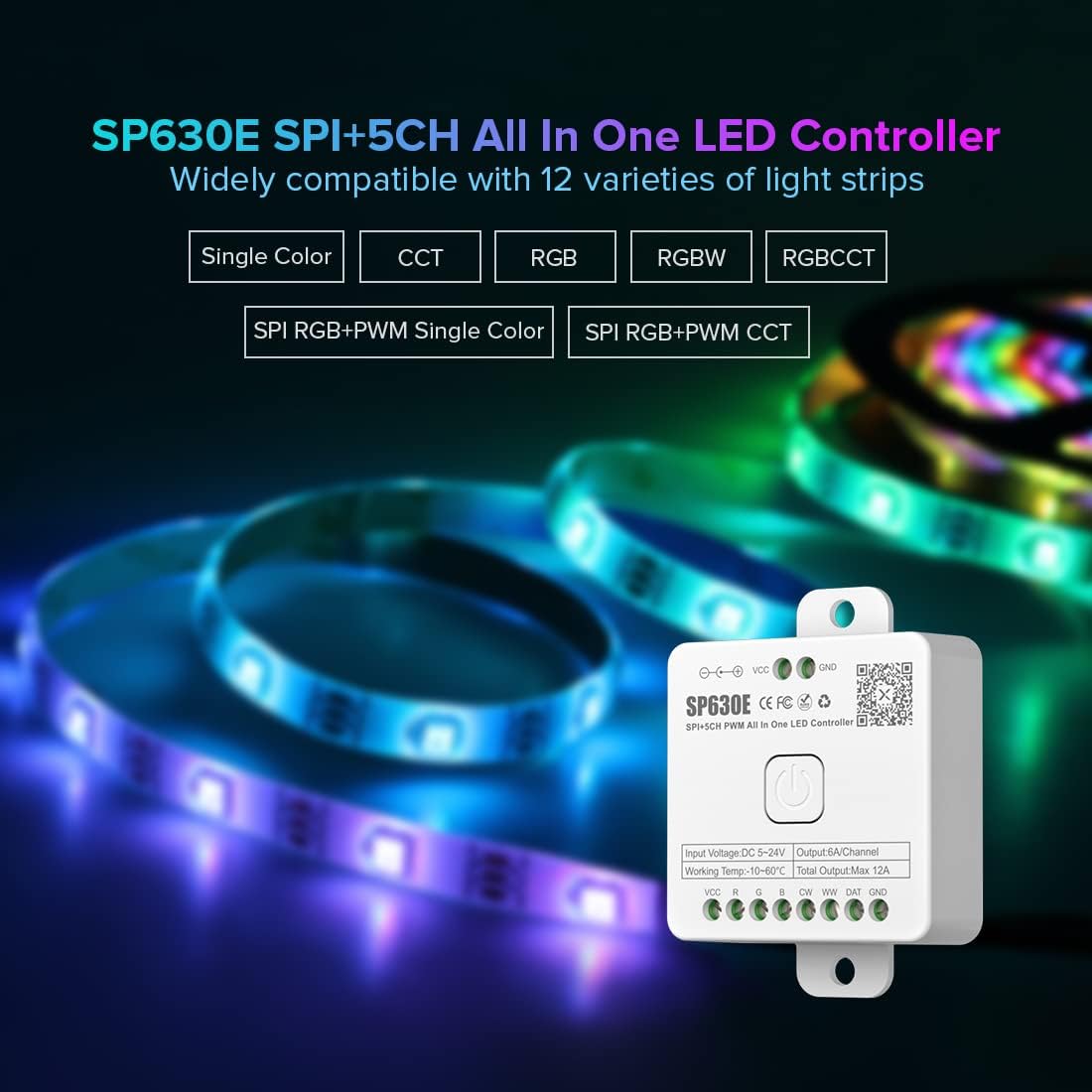

Broad compatibility for diverse strips

You can drive non-IC PWM strips for smooth dimming and steady color transitions, using standard two-pin or three-pin formats. It also supports addressable IC strips that use SPI or TTL chips, including popular models in the WS2811/WS2812B/WS2813 family, so you can render dynamic color patterns across zones or segments. Note that plain monochrome or CCT strips do not support DIY color effects.

• PWM non-IC strips for smooth dimming and reliable color blocks
• Addressable IC strips such as WS2811/WS2812B/WS2813 for dynamic effects
• Ability to mix SPI and PWM for combined, multi-protocol setups

Capacity and performance you can rely on

The SP630E SPI interface defines clear upper limits depending on strip type. It can control up to 600 ICs for single-color, 600 ICs for CCT, 600 ICs for RGB, 450 ICs for RGBW, and 300 ICs for RGBCCT under optimal conditions. You can run SPI and PWM concurrently to orchestrate mixed-strip scenes in a single project.

• Single-color: up to 600 ICs
• CCT (dual-color temperature): up to 600 ICs
• RGB: up to 600 ICs
• RGBW: up to 450 ICs
• RGBCCT: up to 300 ICs

Smart control, DIY creativity, and app-driven rhythm

You’re not limited to hardware alone. The SP630E supports DIY lighting effects and is designed for use with the Banlan X app. You’ll find three interfaces—static, dynamic, and music-driven—so you can craft visuals with simple taps or automate them to suit the moment. Bluetooth pairing is quick, and color calibration helps align the app color with the actual LEDs for a cohesive look. A timing feature supports up to five timers, and memory preserves your settings after power loss so your scenes resume smoothly.

• Banlan X app with static, dynamic, and music interfaces
• Bluetooth control for quick setup and updates
• Color calibration to match screen and hardware colors
• Up to five timers with power-resume memory

Power, safety, and practical installation

Operate with DC power options of 5V, 12V, or 24V using a standard 5.5mm x 2.1mm power jack. The controller supports up to 6A per channel and up to 12A total, so selecting an appropriate power supply is important for stable performance across connected strips.

• DC5V / DC12V / DC24V support
• 5.5x2.1 mm power connector
• 6A per channel, up to 12A total

Why consider the SP630E

Designed for flexibility, the SP630E brings together non-IC and addressable strip control, multi-protocol compatibility, and user-friendly app features. It’s crafted to help you explore nuanced lighting effects with confidence and room to grow, without promising guaranteed results.
