BTF-LIGHTING SK6812 RGBW LED Strip – 12V, 16.4ft, IP30, Individually Addressable

Overview

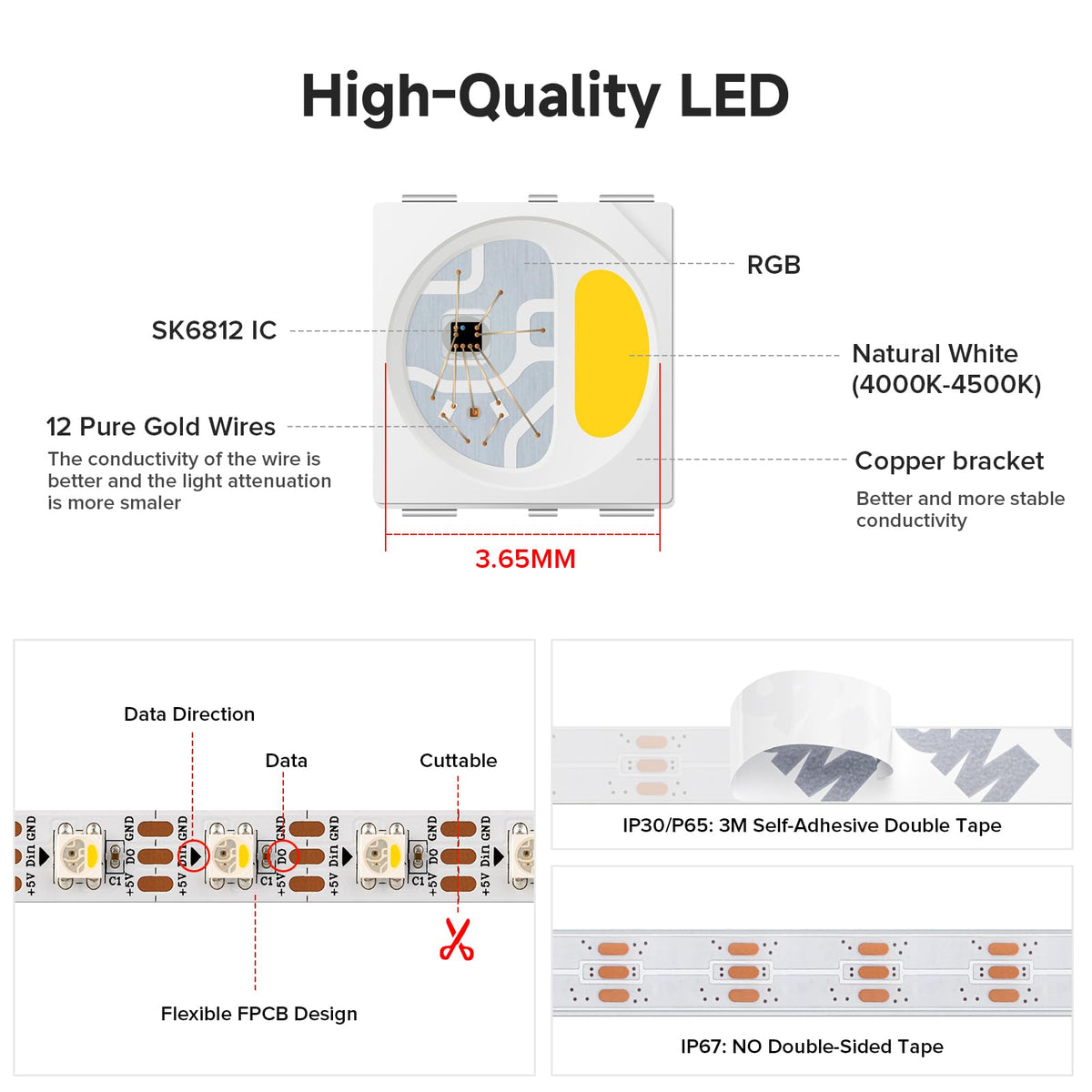

The BTF-LIGHTING SK6812 RGBW LED strip blends a built‑in SK6812 RGBW IC with a long, flexible 16.4 ft (5 m) run. With 60 LEDs per meter, it delivers true pixel‑level control, allowing each diode to be colored and animated independently. The 8‑bit grayscale (256 levels) and 32‑bit color depth enable precise color shifts and smooth gradients across the strip, making complex effects possible with compatible controllers. The 4000K natural white channel adds a dedicated white dimension, expanding past traditional RGB to create richer palettes and more nuanced lighting scenes. This combination supports vibrant visuals while maintaining energy efficiency and minimal heat across the full length.

Pure White Light and Color Quality

The RGBW architecture includes a dedicated white channel, delivering clean 4000K natural white that reduces color casts when white is part of a scene. This structure broadens color-mixing possibilities and helps maintain true whites in dynamic displays. The system is designed for energy efficiency, helping to keep temperatures lower during extended runs and to extend the strip’s practical lifespan in busy environments.

Safety, Mounting, and Durability

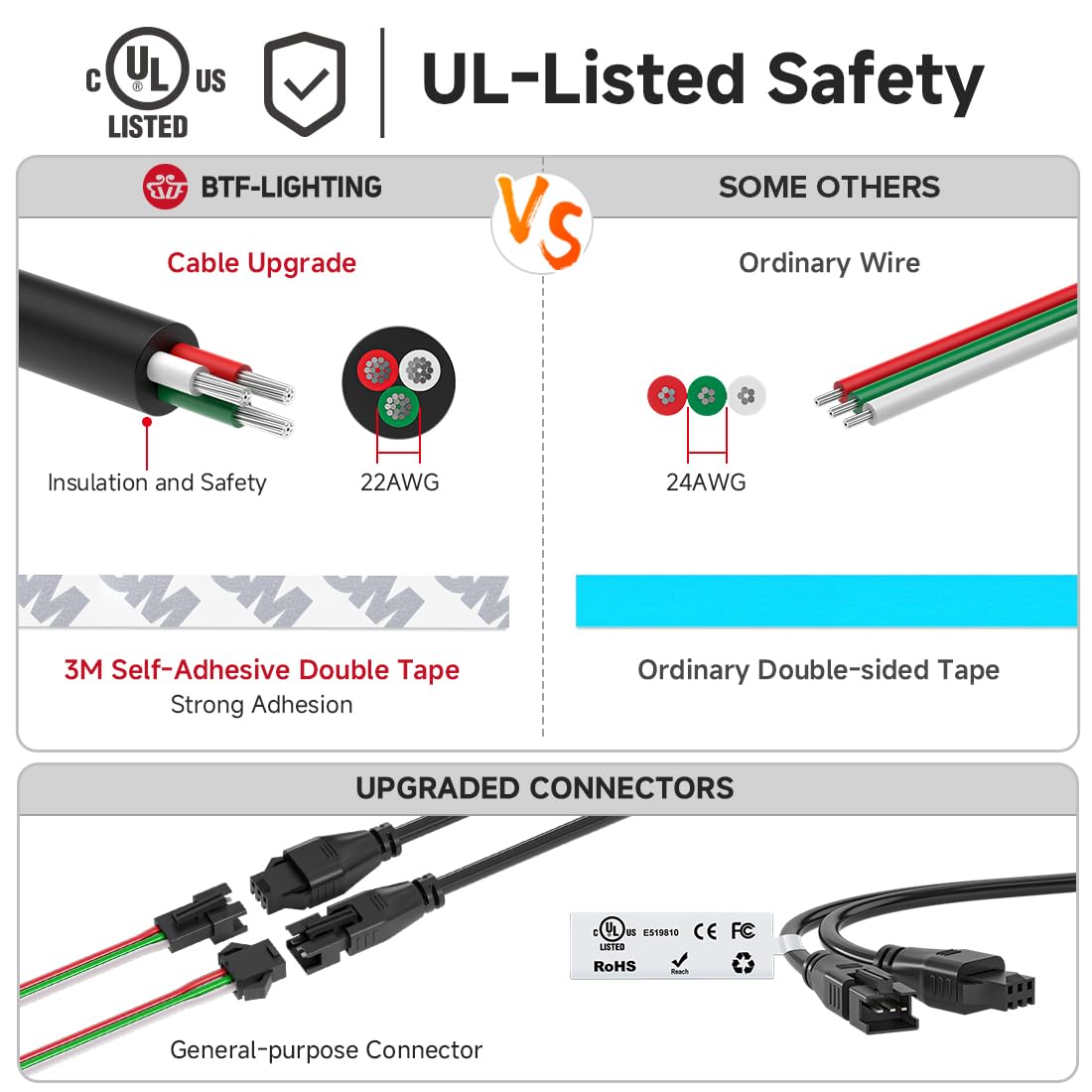

UL listing supports safety and reliability for professional projects. The strip ships with 3M double‑sided adhesive for quick mounting. Multiple IP variants (IP30, IP65, IP67, IP68) cover indoor and more demanding environments; IP30 stays indoors, IP65 handles damp spaces, and IP67/IP68 variants offer tougher outdoor protection with separate mounting methods. All variants use 3‑pin UL‑certified connectors for straightforward series connections. Note that some outdoor versions may require fastening clips rather than adhesive.

Flexibility, Compatibility, and Setup

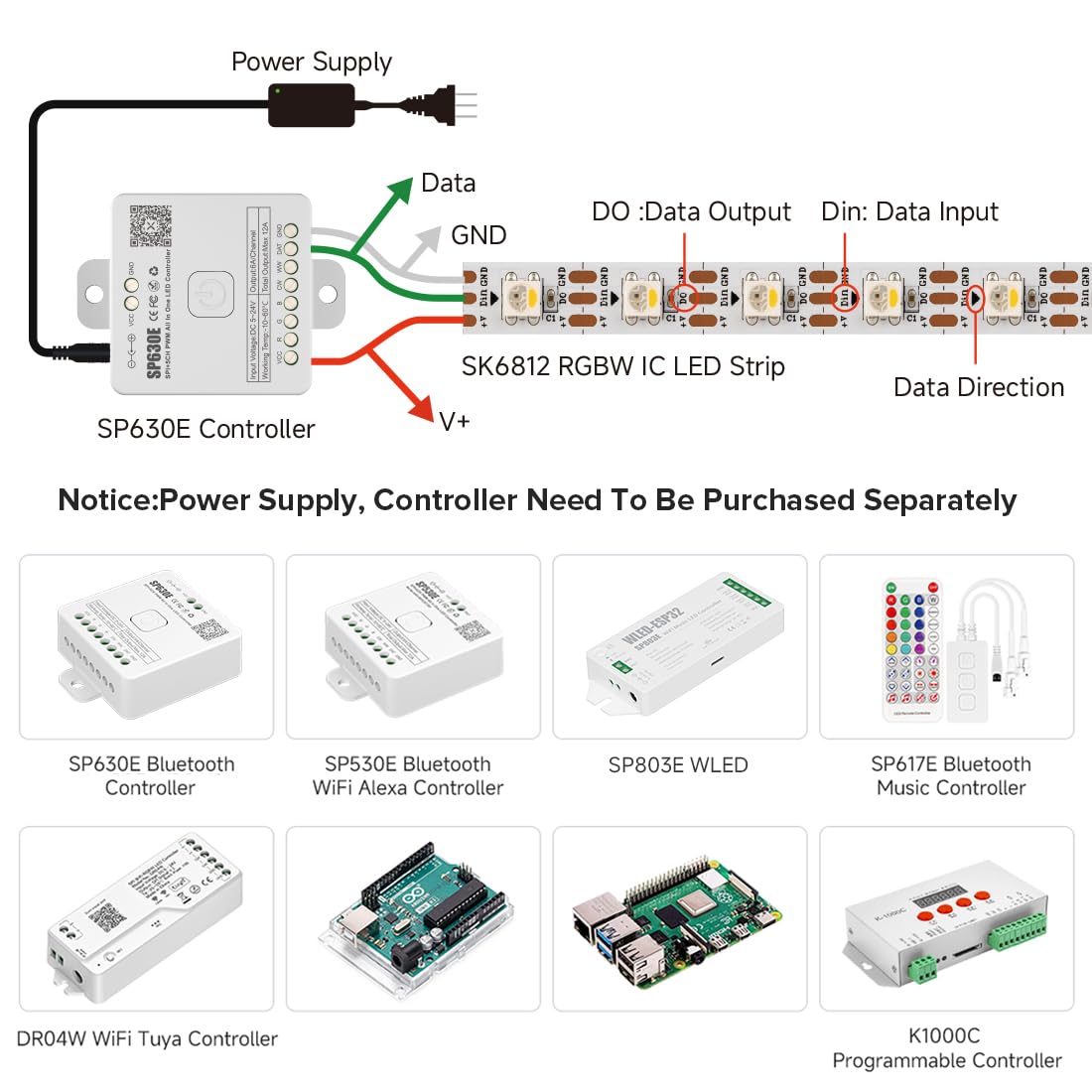

Each LED is individually cuttable, enabling custom lengths and shapes. Pre‑soldered 3‑pin connectors at both ends simplify daisy‑chaining in both series and parallel layouts. For best results, pair the strip with a DC12V power supply (a 5A, 60W unit is recommended for the 16.4 ft length) and the appropriate controller. Controllers and power supplies are sold separately. The strip is compatible with a wide range of DIY controllers and apps, enabling a broad spectrum of lighting scenes—from simple color changes to synchronized animations.

Key specs at a glance

• DC12V operation
• 16.4 ft length (5 m)
• 60 LEDs per meter
• RGBW color mixing with natural white 4000K
• Individually addressable LEDs
• UL listed
• 3M adhesive backing
• Multiple IP variants (IP30/IP65/IP67/IP68)
• Pre-soldered 3-pin connectors
• Recommended power: DC12V 5A 60W
• Controller and power supply sold separately

Popular applications

• LED displays, signage, and video walls
• Architectural and ambient lighting in hotels, bars, and event venues
• Mood lighting for homes, weddings, and celebrations
• Stage decor and dynamic event lighting
