BORDERSMOVER 4-Pack Barrel Gate Hinge 5 Inch - Heavy Duty Weld-On, 450 lbs Each

Rugged weld-on hinges for heavy gates

Designed for demanding gates, BORDERSMOVER 4 pack barrel gate hinges combine strength, precise engineering, and weather-ready finishes. Each hinge is built to withstand daily use on swing gates, trailer gates, or barrel doors, while a matte black powder coating helps resist rust and corrosion in outdoor settings. The result is hardware that can perform reliably under changing temperatures, humidity, and wind, without compromising alignment or operation.

Made from sturdy steel and machined for consistent tolerances, these hinges provide a solid mounting surface and a clean, square fit when welded in. The 5 inch overall length, together with a 0.6 inch barrel and a 0.55 inch pin, creates a balanced swing action that helps reduce sag over time. A mounting plate gap of 1-1/2 inches gives compatible clearance for common frame designs, making installation straightforward for professional welders and DIY installers alike.

Key specifications

• Length: 5 inches total
• Barrel diameter: 0.6 inches
• Pin diameter: 0.55 inches
• Mounting plate gap: 1-1/2 inches

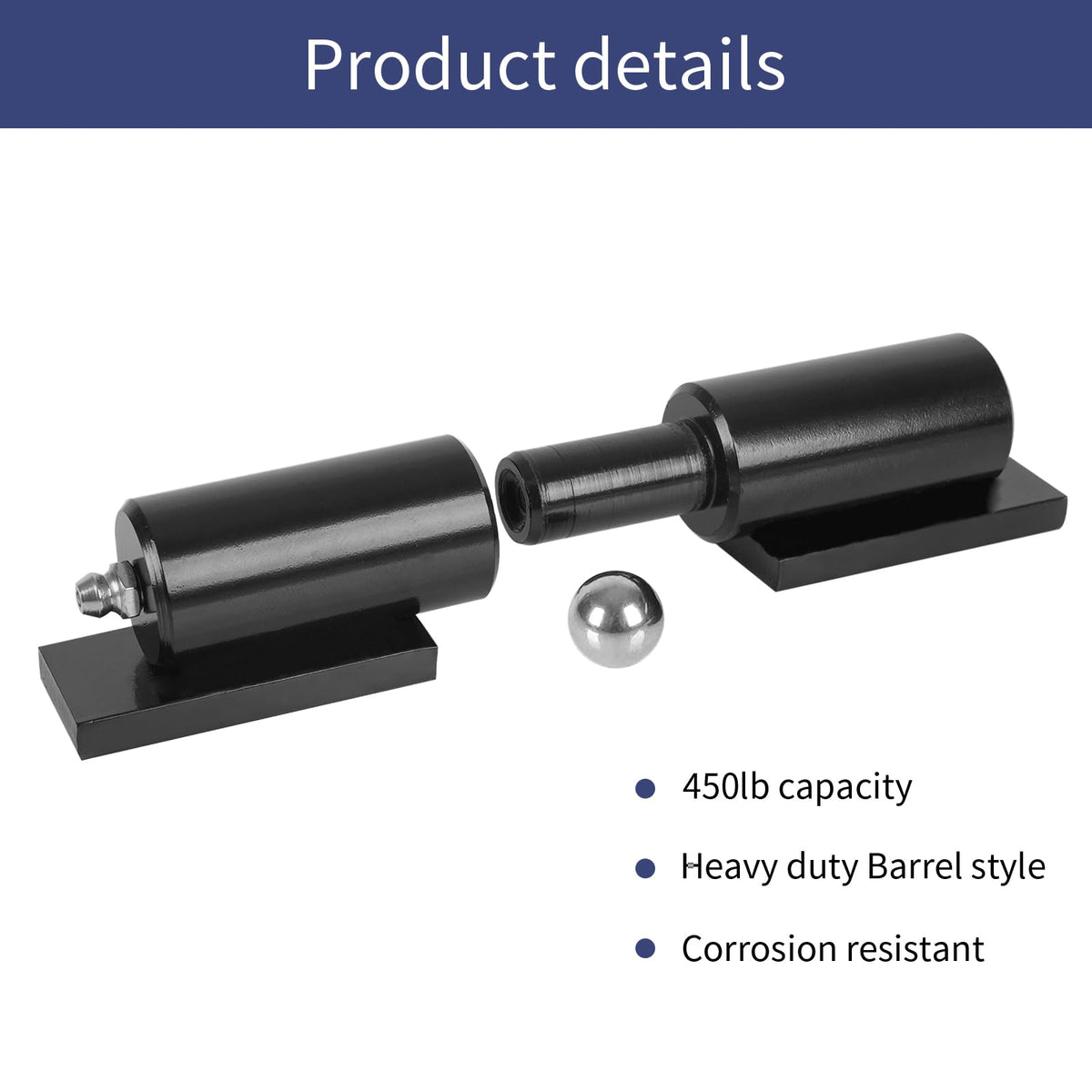

• Load capacity: 450 lbs per hinge; 900 lbs when used as a pair
• Finish: matte black coating with a grease nipple for bearing lubrication

Versatility and use

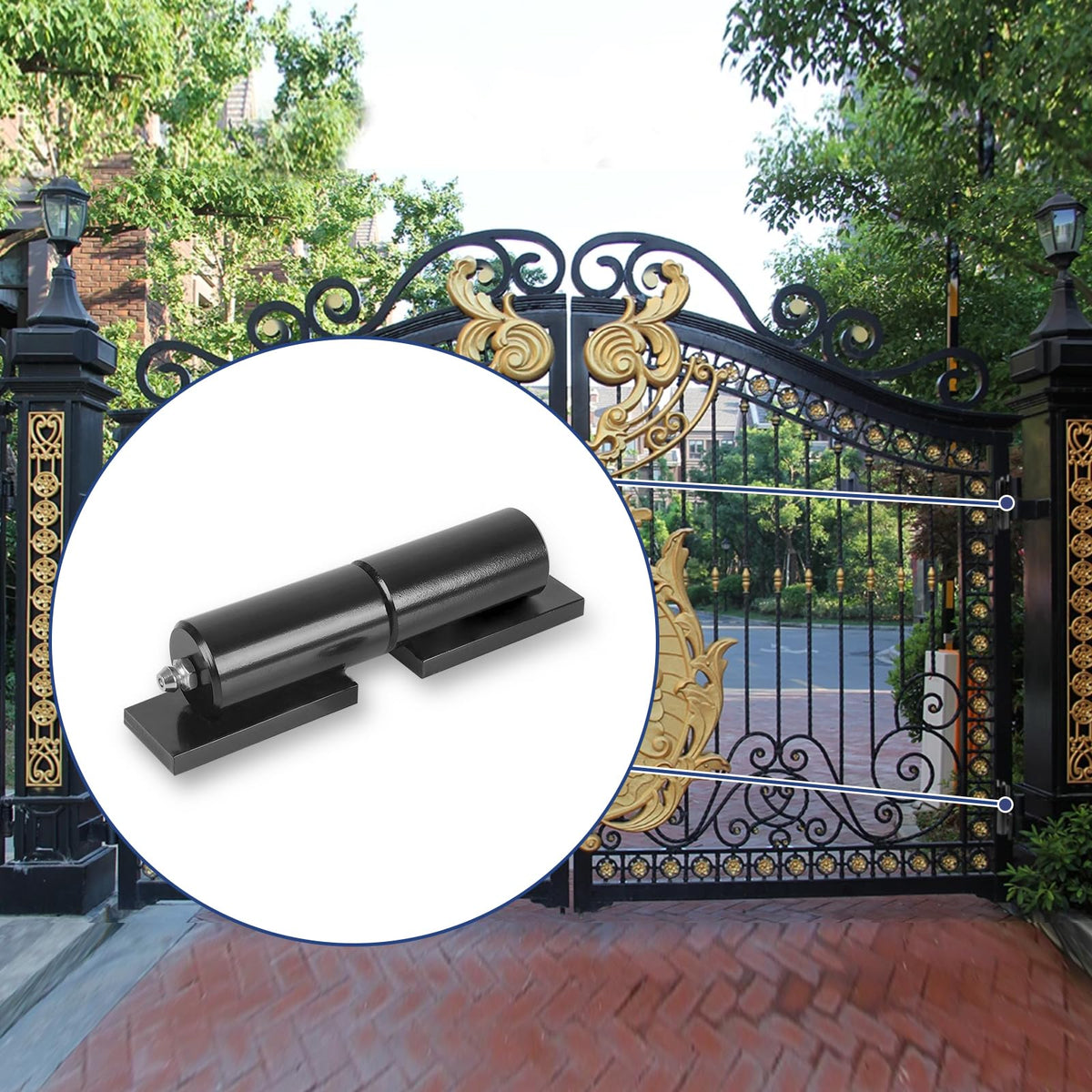

These hinges are purpose-built for outdoor gates as well as utility doors on trailers and barns. They support heavy doors while remaining relatively easy to install with standard welding methods. The matte finish also offers a subtle, low-reflection aesthetic for many projects.

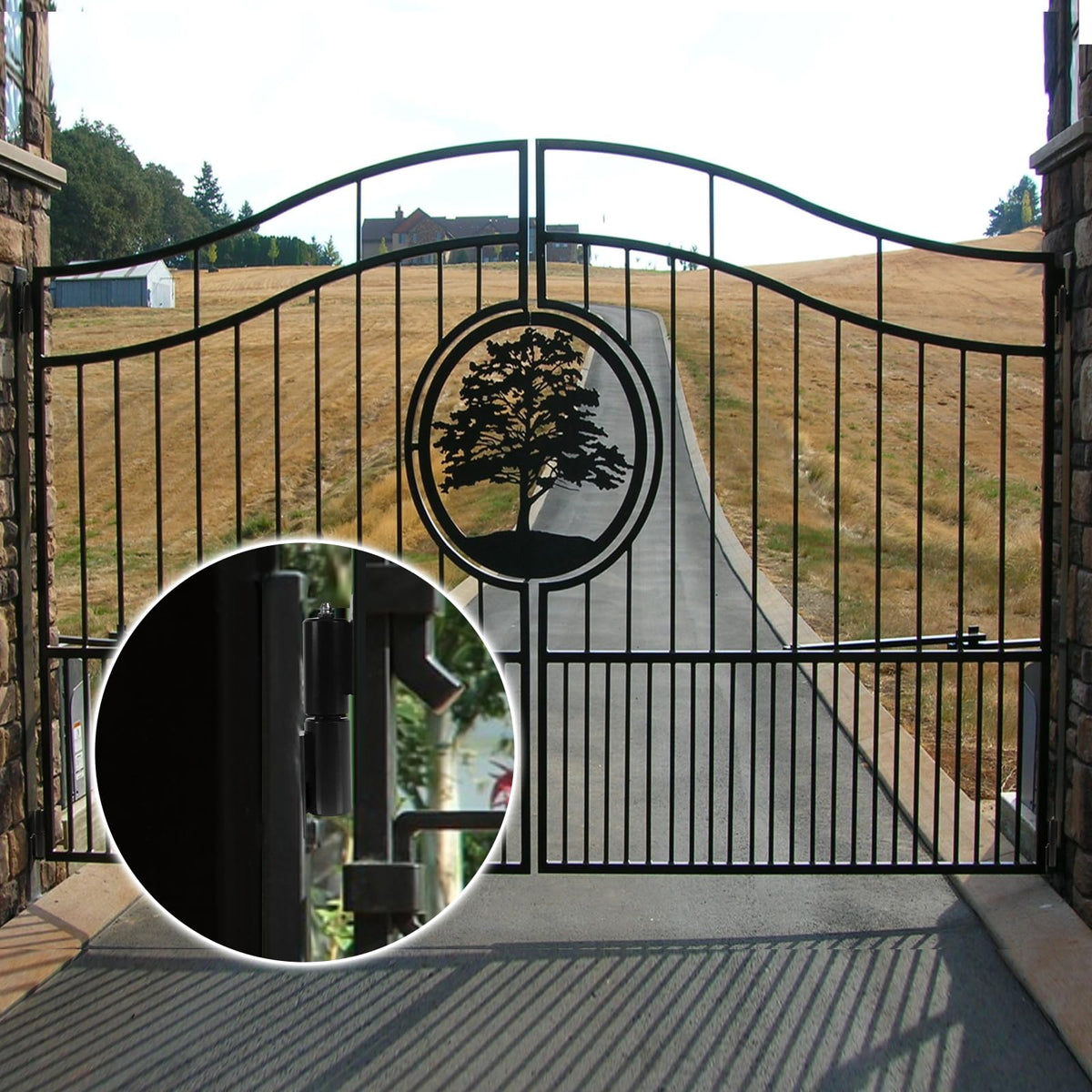

• Swing gates, trailer gates, and barrel doors

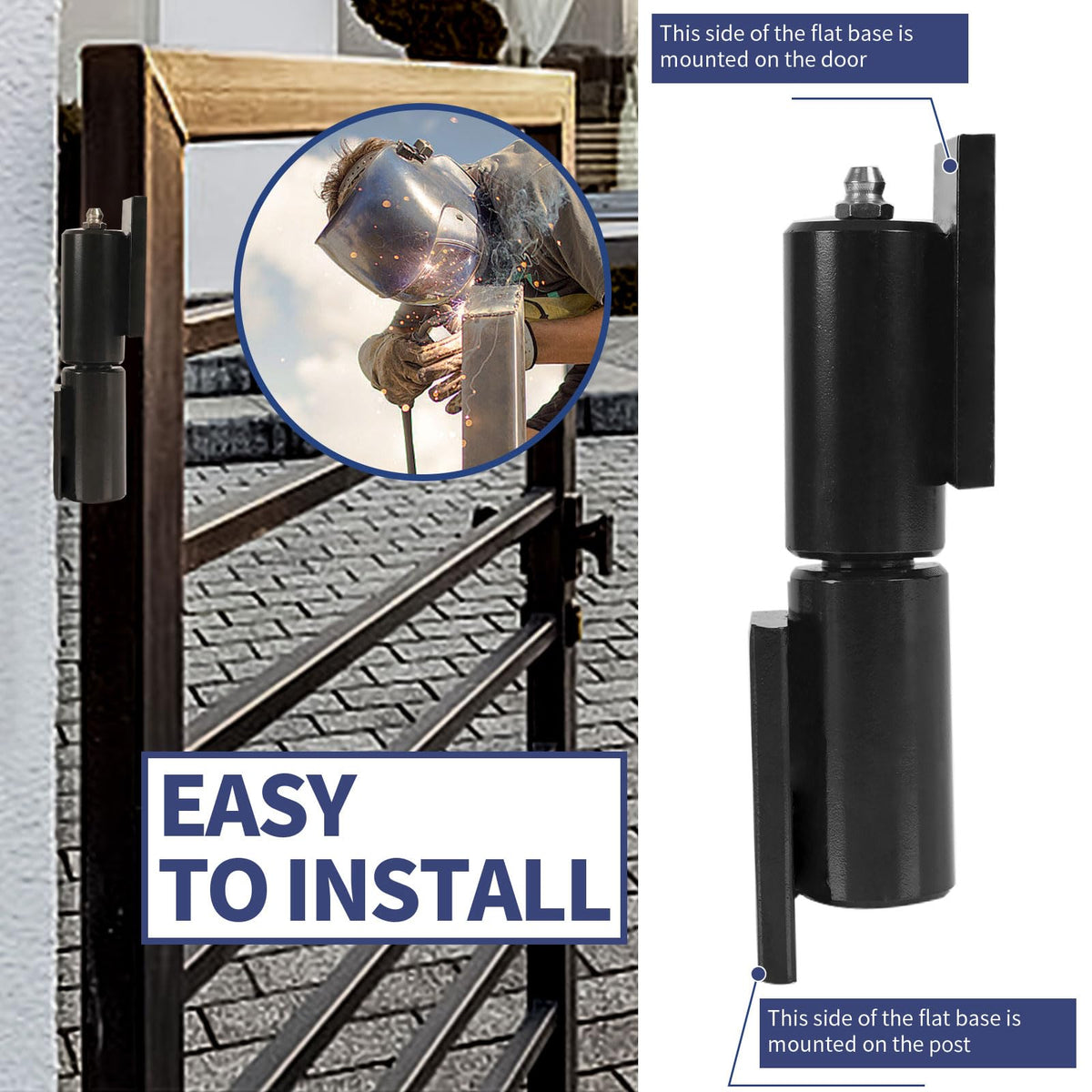

• Weld-on installation for robust mounting
• Suitable for outdoor and indoor environments

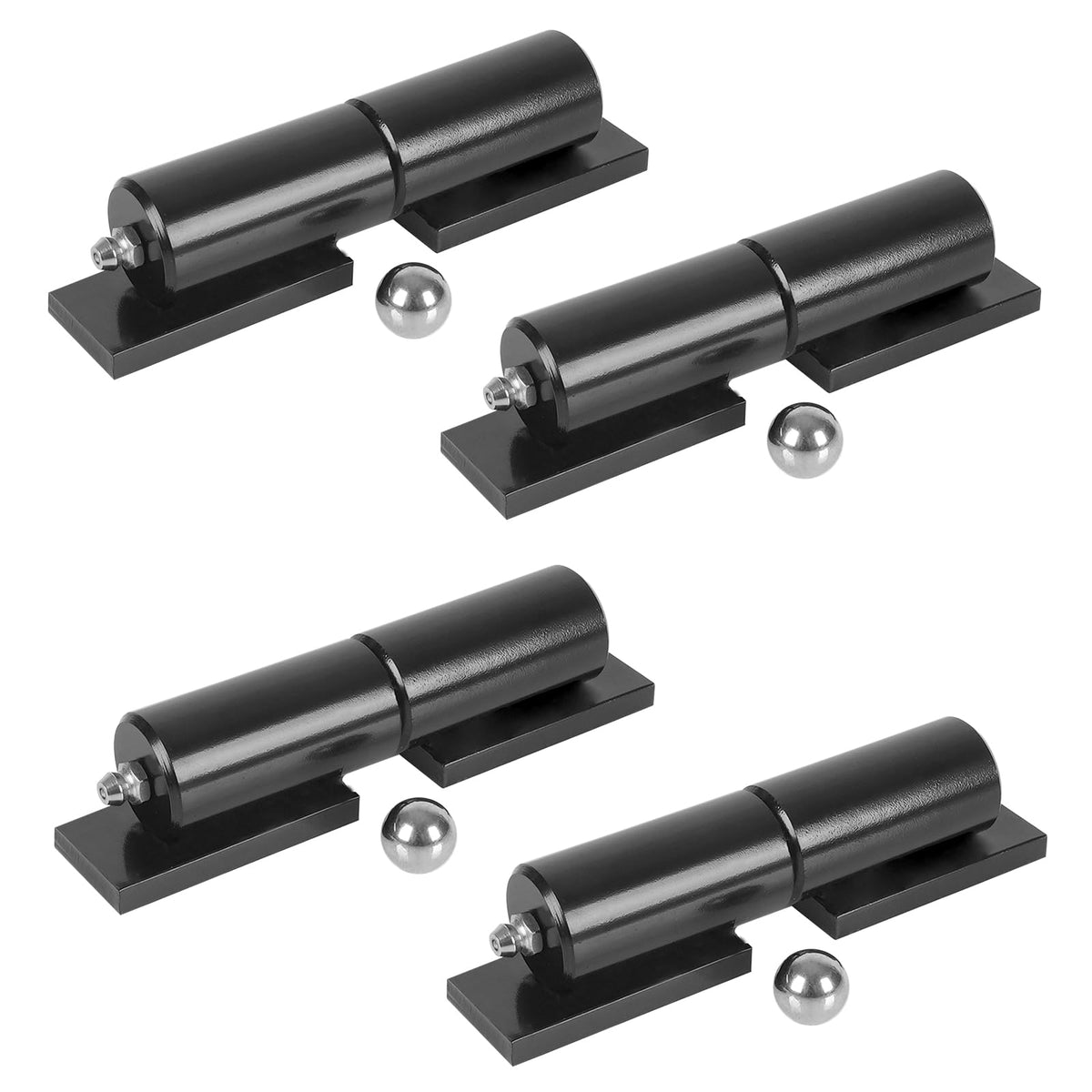

• 4 pack ensures consistent hardware across installations

Durability and maintenance

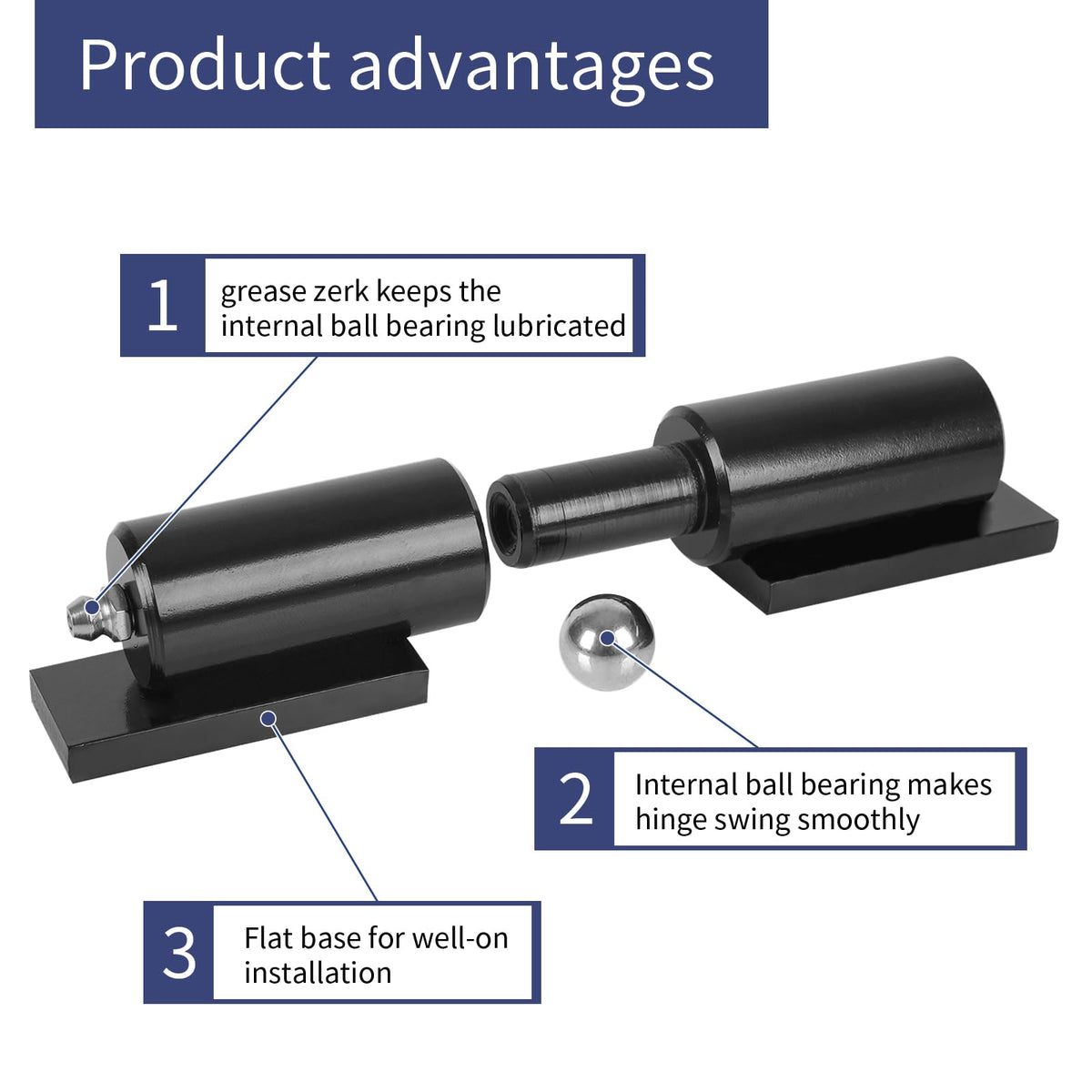

In addition to the powder coated finish, the design includes a grease nipple to lubricate internal ball bearings, helping to maintain smooth operation. Regular lubrication, proper torque on mounting hardware, and periodic inspection will extend the life of the hinge under frequent use.

• Rust and corrosion resistance from the durable coating
• Grease nipple for easy lubrication of internal bearings
• Sturdy steel construction designed for heavy-duty gates

Whether you are replacing worn hinges or building a new gate setup, these BORDERSMOVER hinges provide a practical, heavy duty option that aligns with a variety of installations. They pair well with other robust hardware and can help keep gates operating smoothly for years to come.
