Blue Sea Systems 5191 fuse block terminal mounted on a battery post for DC protection.

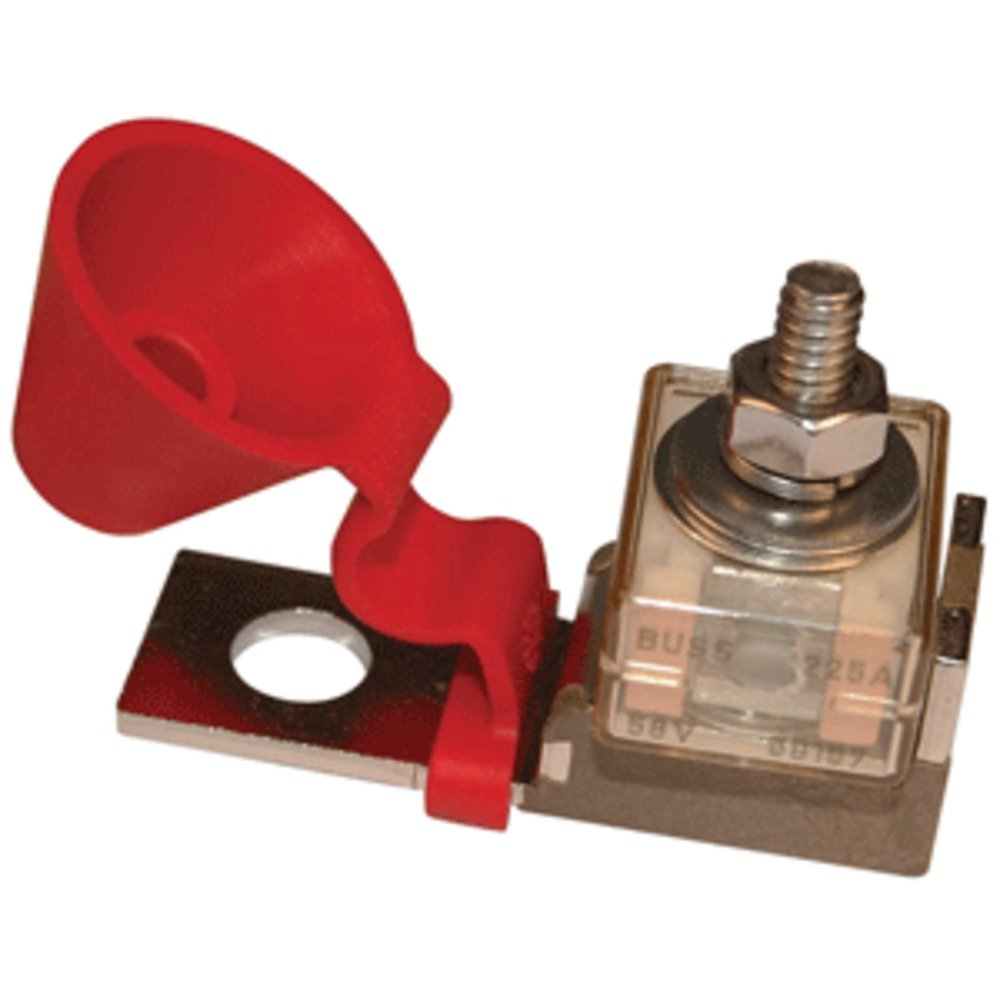

Blue Sea Systems 5191 on a battery post demonstrates compact, high-amp protection.

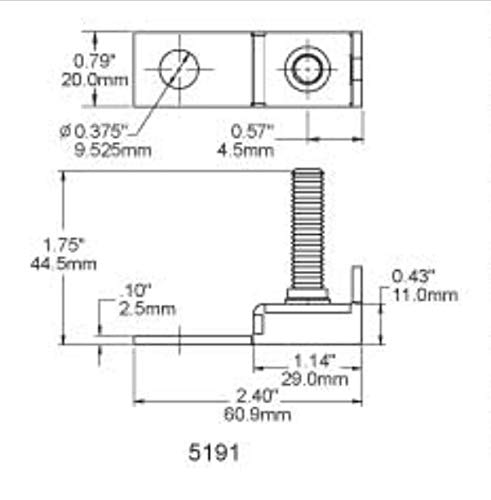

Blue Sea Systems 5191 fuse block terminal offers weatherproof protection for open cockpit boats.

Blue Sea Systems

Blue Sea Systems 5191 Fuse Block Terminal 30-300A | Battery Post Mount

High-performance tools and home improvement made for confident daily results

$31.96

3 shoppers currently have this item in cart.

Low stock: only 5 left in inventory. Add to cart before it's gone.

Shop Pay installment options may appear at checkout where eligible.

Free shipping Secure checkout 100% refund eligible
Bundle & save Buy 2 and save checkout time

Premium tools and home improvement quality selected for United States (USA) customers.

Routine pack Build your routine pack (3)

Fast dispatch with always-free shipping and secure checkout on every order.

Free shipping

i

Free shipping on every order. Fast dispatch, tracked delivery, and secure checkout included.

Easy returns

i

Simple return flow and responsive support for eligible items.

Peak-demand shipping delays

i

During high demand, deliveries may experience short carrier delays. Tracking updates remain active for every order.

24/7 customer support

Questions before checkout? Our team is available and ready to help.

Return & RefundEasy returns and policy details Shipping PolicyDelivery process and tracking info
Share

Why customers choose TaskHolt Tools

Overview

Designed for demanding marine electrical systems, the Blue Sea Systems 5191 fuse block terminal delivers robust protection in a compact form factor. It mounts to a 3/8\" battery post and accepts MRBF fuses from 30A to 300A, offering flexible protection for high-current DC circuits such as main feeders, inverters, windlasses, and bow thrusters.

The unit is built to withstand open cockpit environments and other harsh marine conditions, featuring a weatherproof body and an insulating cap that helps prevent accidental shorts during maintenance. When used with MRBF fuses, the fuse block can be ignition-protected, adding a safety-focused option for ignition-prone installations. Fuses are sold separately, and the block carries a universal fit for a range of configurations.

Key specifications at a glance

  • Voltage max operating: 58V DC
  • Amps max operating per block: 300A
  • Terminal fuses: 30A–300A
  • Terminal stud size: 5/16\"-18 (8 mm)
  • Mounting hole size: 3/8\" (MN10)
  • Mounting type: battery post mount, single 5/16\" stud for wire connections
  • Insulating cap helps prevent shorts during service
  • Ignition protected when used with MRBF fuses
  • Fuses sold separately
  • Fit type: Universal

Typical applications and benefits

  • DC main protection for space-constrained boats
  • Protection for inverter circuits and other high-current loads
  • Windlass and bow thruster circuit protection in compact layouts
  • Weatherproof design suitable for open cockpit and exposed decks

Note: The 5191 is designed to work with MRBF fuses and provides a dedicated connection point for organized wiring. This block is sold as a fuse block terminal without fuses.

FAQ

Q: What are the voltage and current limits of the 5191 fuse block?

A: It supports up to 58V DC and 300A per block, with MRBF fuses from 30A to 300A.

Q: How is the 5191 mounted and is it weatherproof?

A: Mounts on a 3/8" battery post with a 5/16" stud; designed for open cockpit and harsh marine environments.
