BINSTAK CNC Spoilboard Surfacing Router Bit – 1/4" Shank, 1-3/8" Dia, 2+2 Carbide Inserts

Overview

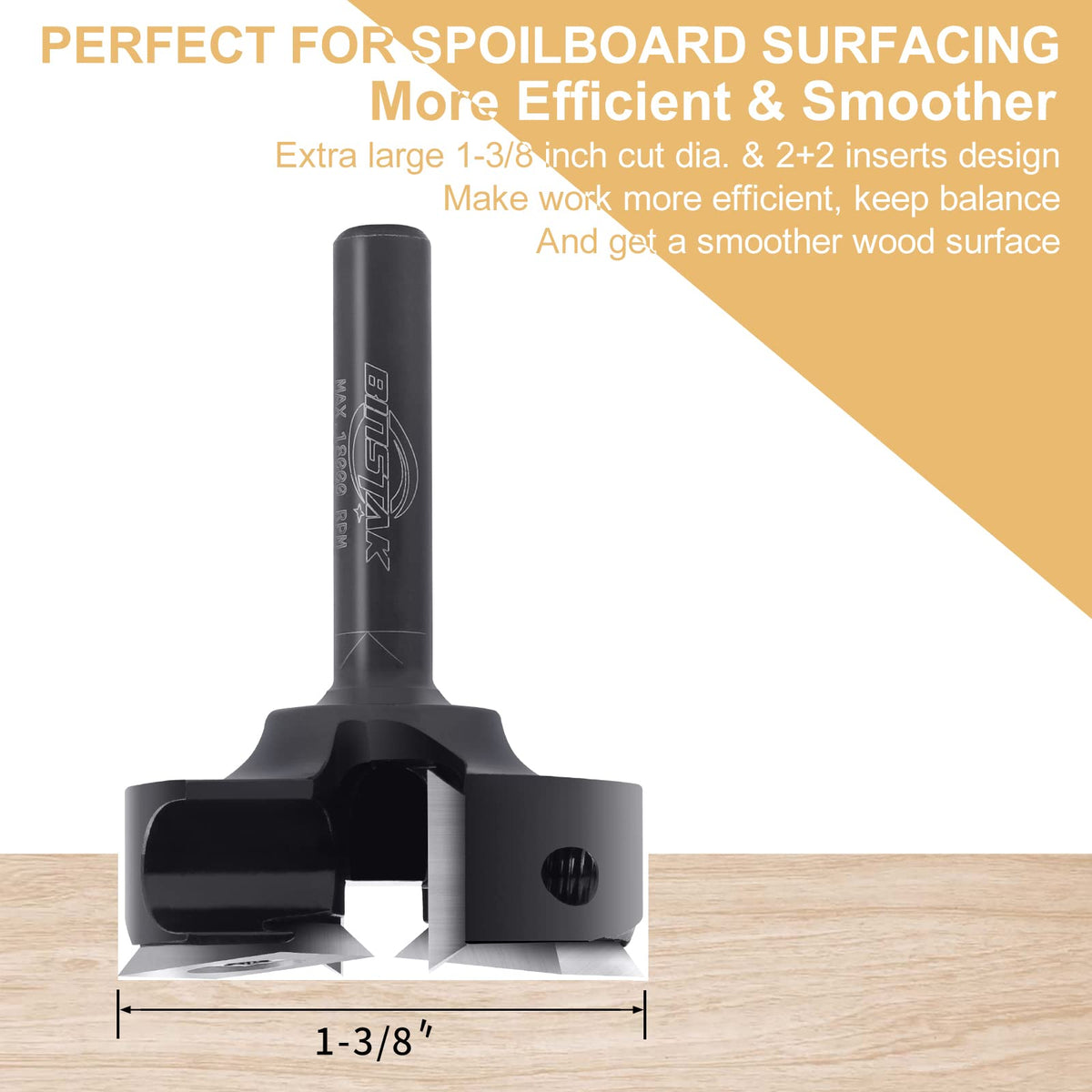

Upgrade your spoilboard work with the BINSTAK CNC spoilboard surfacing router bit. Built for reliable flatness and repeatable results, this bit pairs a 1/4" shank with a generous 1-3/8" cutting diameter to cover wide passes that remove high spots and leave a consistent top surface. The design supports smooth, controlled planing across various wood types and panel materials.

What makes it effective

• 2+2 inserts provide a balanced cutting action, reducing chatter and helping you achieve a cleaner finish even on uneven stock.

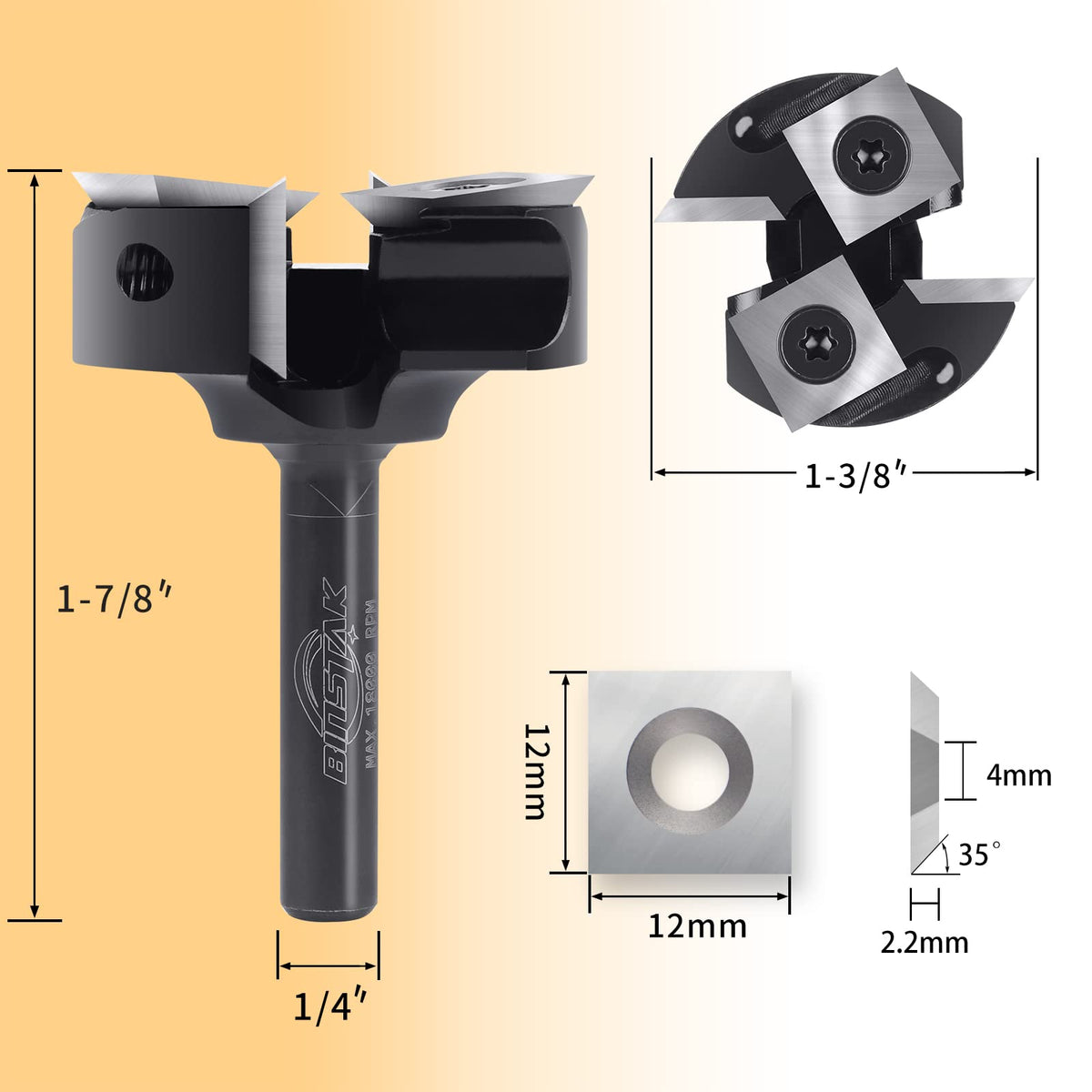

• Carbide inserts are 12×12 mm and four-sided, offering multiple usable edges to extend tool life without replacing the whole bit.

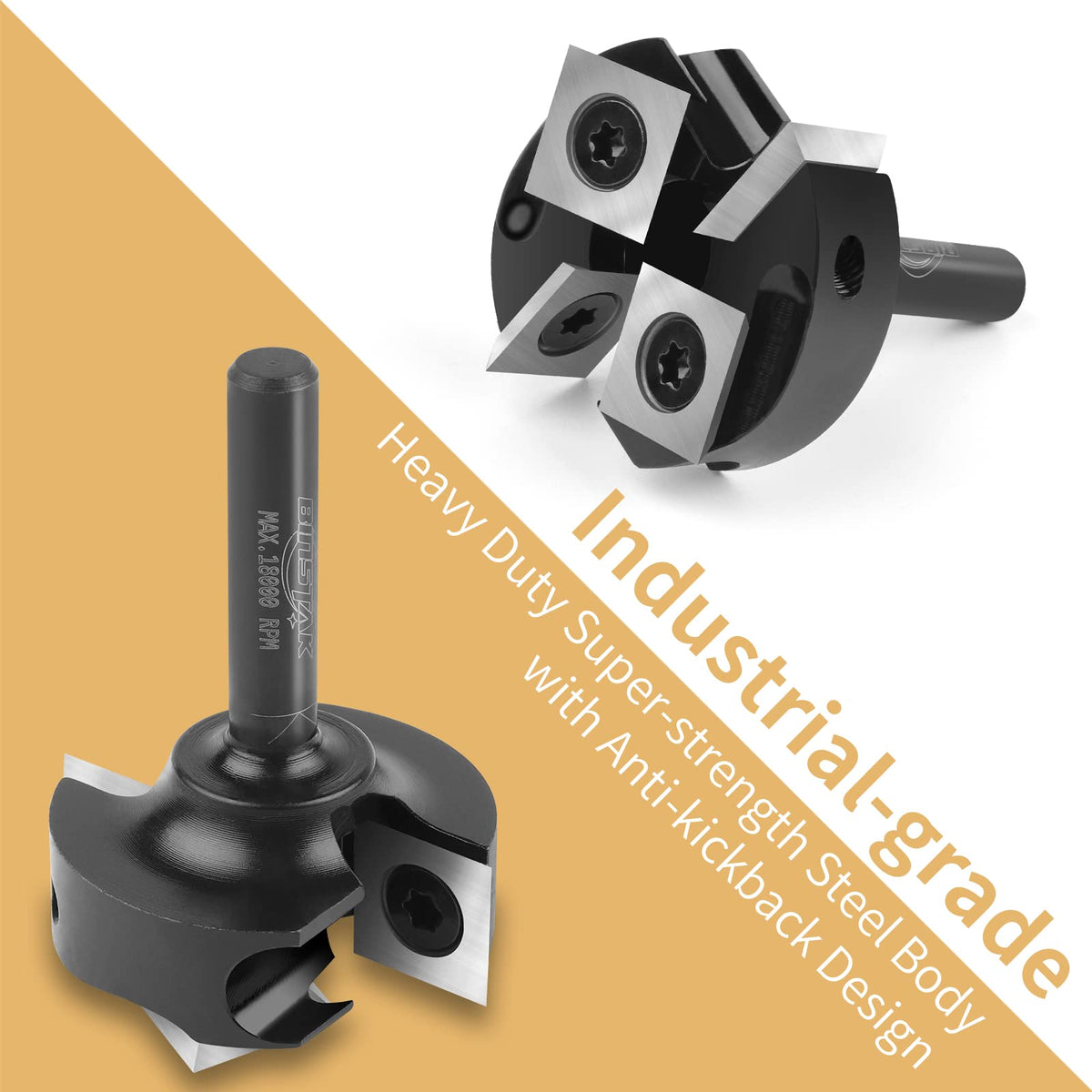

In practice, you’ll notice a more even surface when flattening spoilboards or resurfacing the top layer of a workpiece. The combination of a robust steel body and an anti-kickback design contributes to steadier runs and predictable results, particularly when handling both soft and hard woods.

Versatility and materials

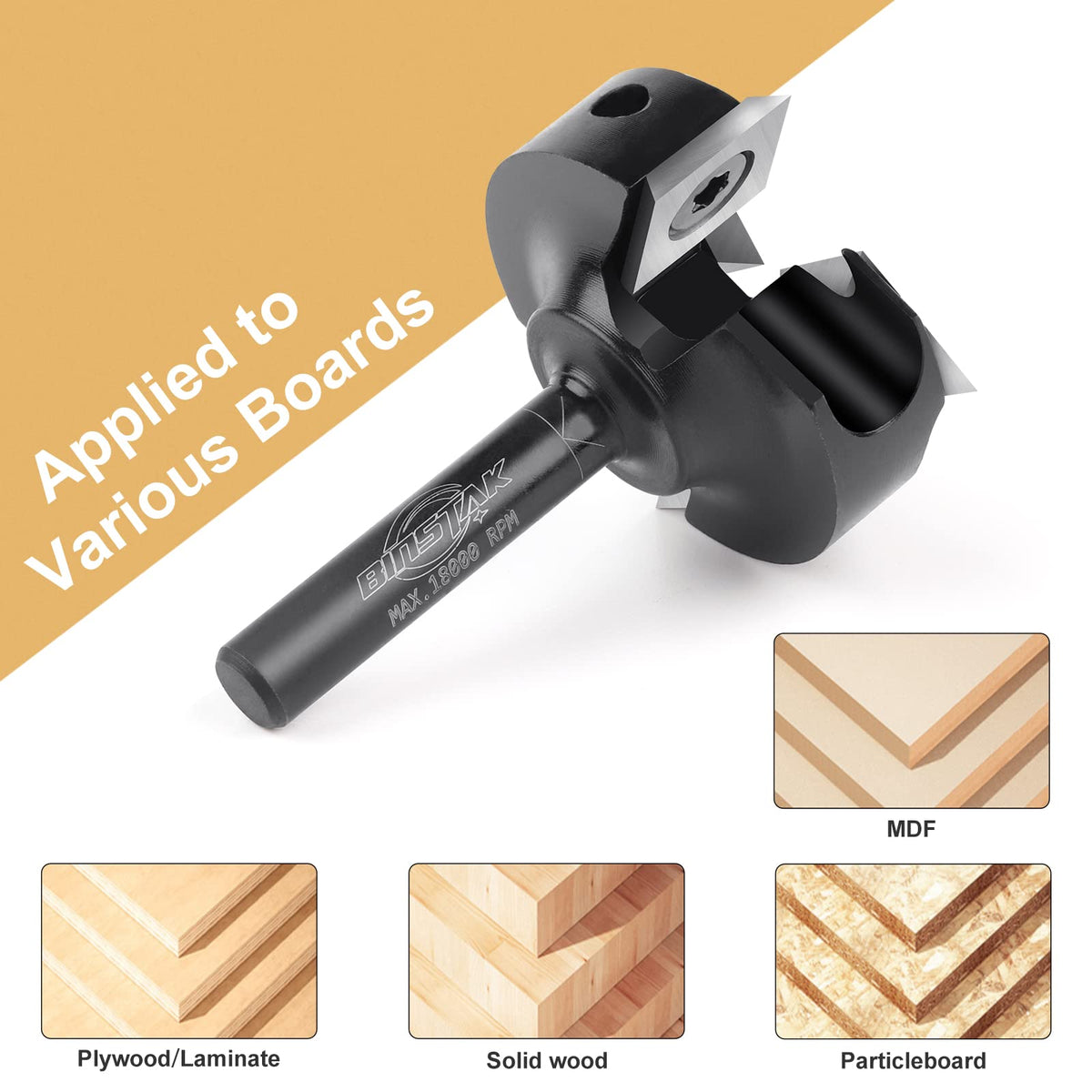

• Works on a range of materials including soft woods, hard woods, particle board, MDF, plywood, laminate, and even acrylic.
• Suitable for CNC machines, automated routers, as well as handheld and table-mounted routers, making it a flexible choice for shop setups.

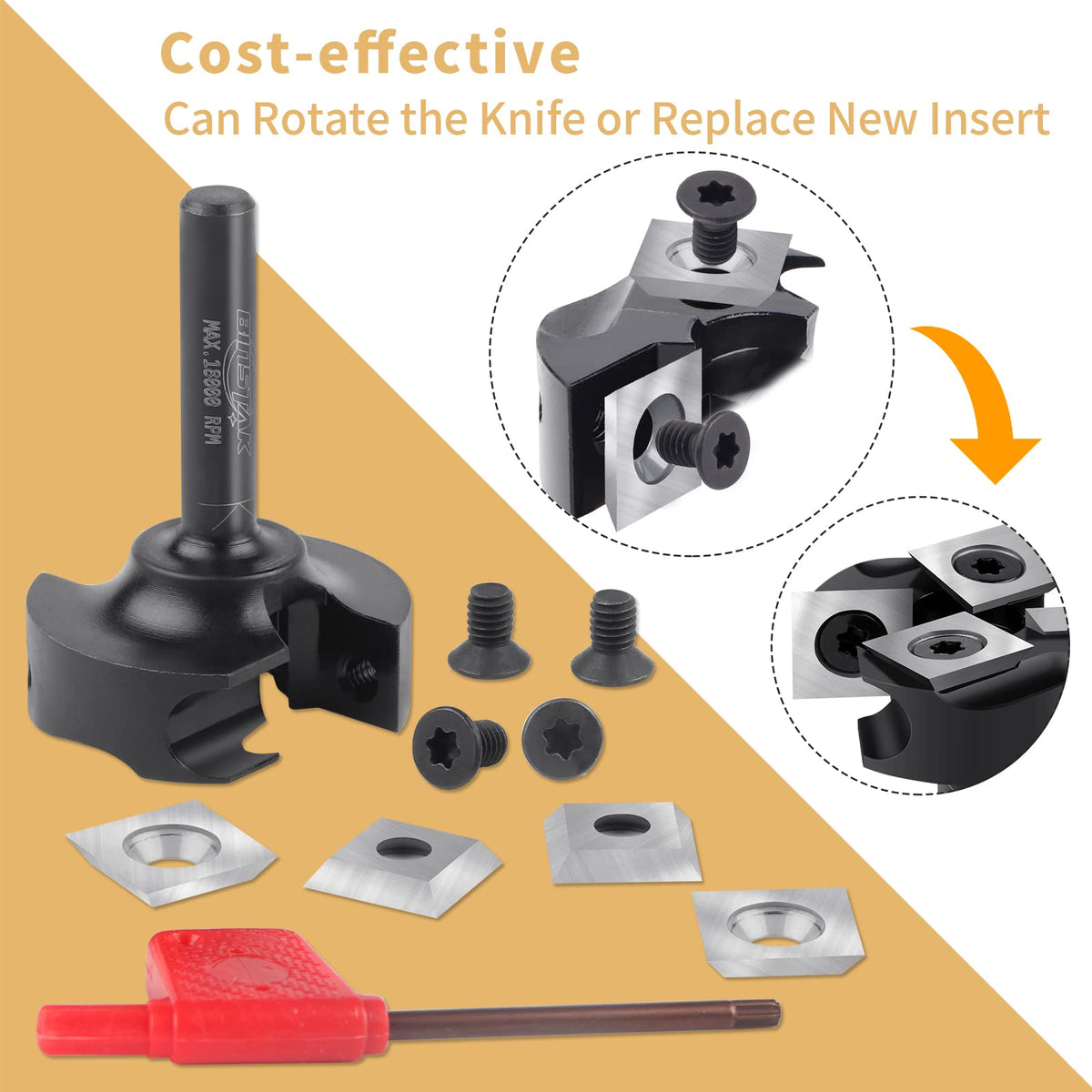

The insert-based construction keeps you in control of costs: replace worn carbide inserts when needed and rotate edges to maximize usage. This design offers a cost-effective alternative to brazed or solid carbide spiral bits while delivering consistent surface quality.

Use cases and real-life scenarios

• Flattening and resurfacing spoilboards before precise routing setup, ensuring true job reference surfaces.
• Planing the top surfaces of large panels, thermoplastic laminates, or composite boards for a uniform finish.
• Routine maintenance passes on jigs, fixtures, and clamped stock where a flat reference is essential.

Note: While the bit is designed to deliver improved surface quality, results can vary with feed rate, spindle speed, and material condition. Treat the inserts as replaceable consumables to manage costs effectively while maintaining performance.
