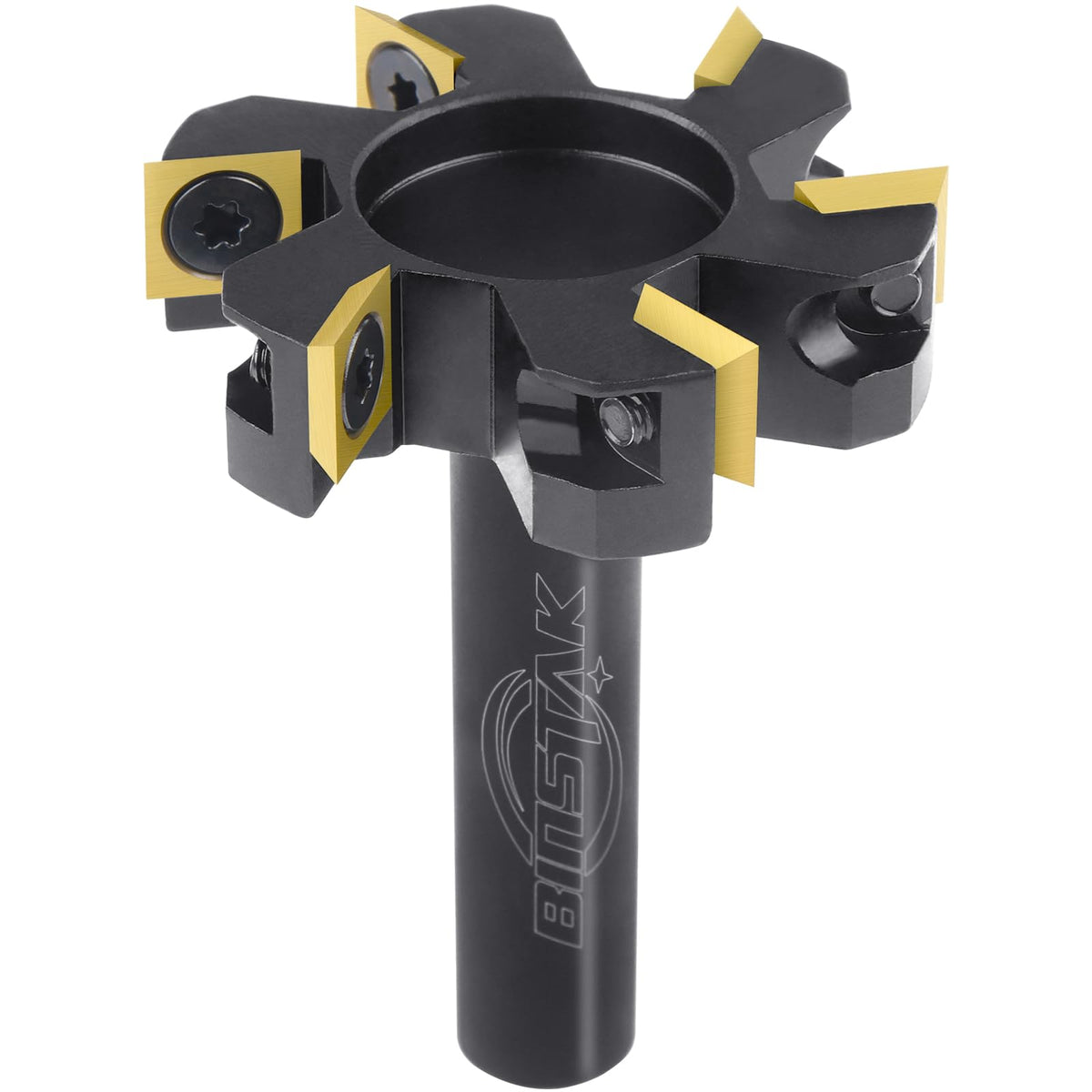

BINSTAK CNC Spoilboard Surfacing Router Bit – 1/2" Shank, 2" Diameter, 6-Wing Carbide Inserts

Meet the BINSTAK CNC Spoilboard Surfacing Router Bit, engineered to even out and reveal a consistent top surface on spoilboards. With a 1/2-inch shank and a 2-inch cutting diameter, this bit is built to handle high-volume surfacing tasks while maintaining balance and control as material moves under the bit.

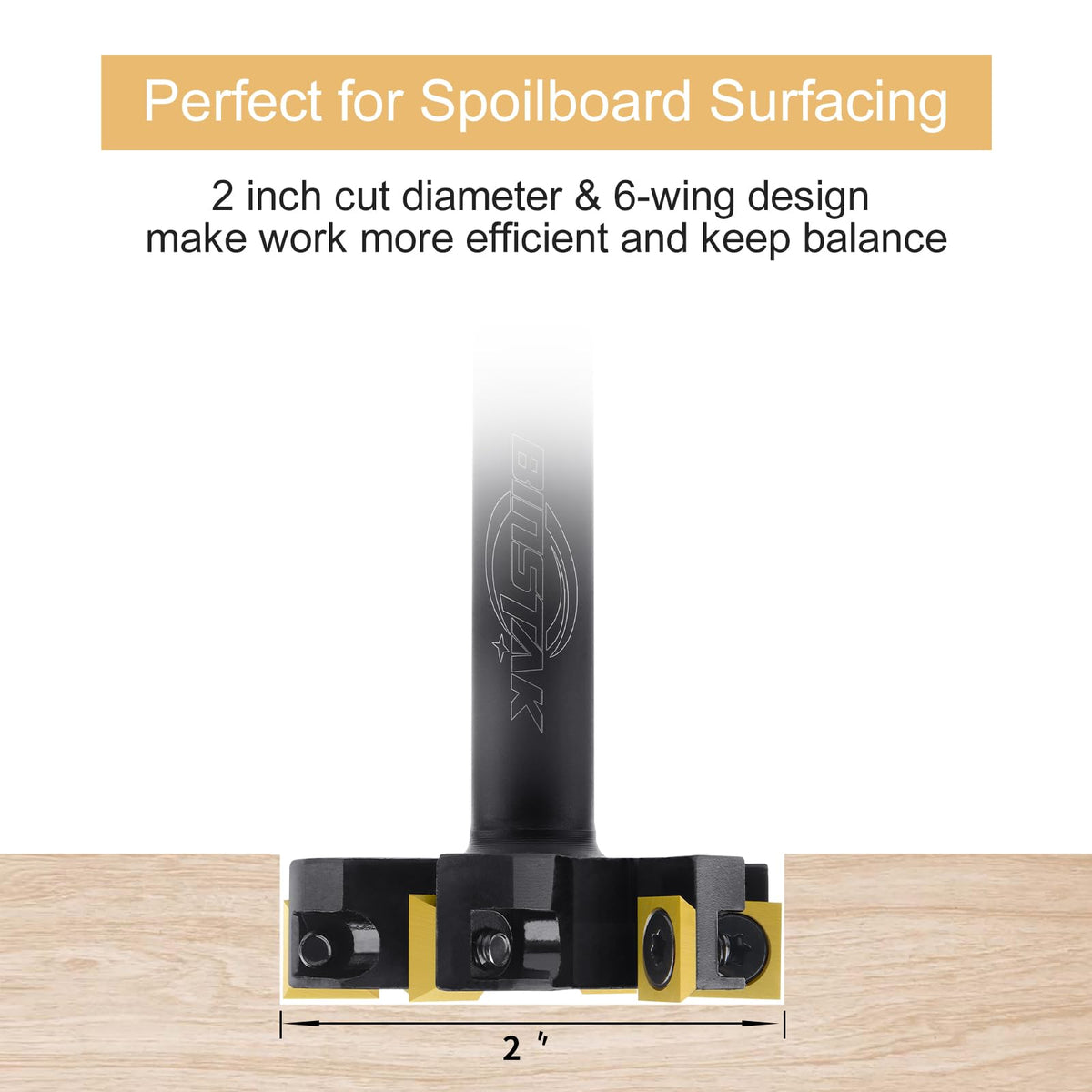

The core feature is the 6-wing carbide insert design. Six cutting wings work in harmony to deliver smooth, balanced cuts and efficient material removal. The inserts, sized 10x10 mm with a 2.2 mm thickness, can be rotated to extend life, and blades can be replaced as needed rather than discarding the entire bit.

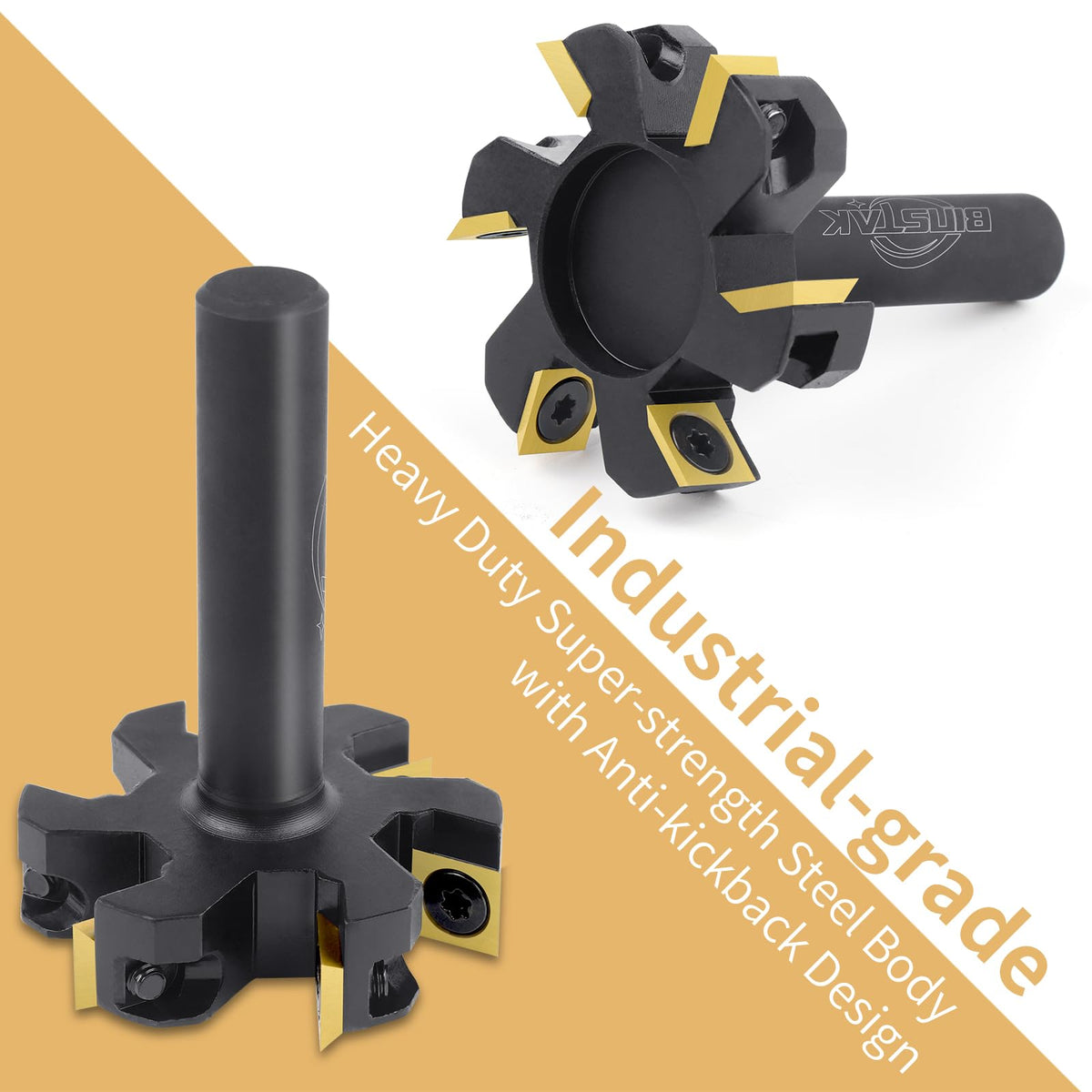

TiN coated carbide inserts contribute to longer life by reducing wear under demanding use. When compared with uncoated bits, the coating can offer up to 2.5x lifespans in some scenarios, helping you plan maintenance and tool changes with confidence. The tool body uses an industrial-grade steel construction with an anti-kickback design for better control and safety during planing and resurfacing tasks.

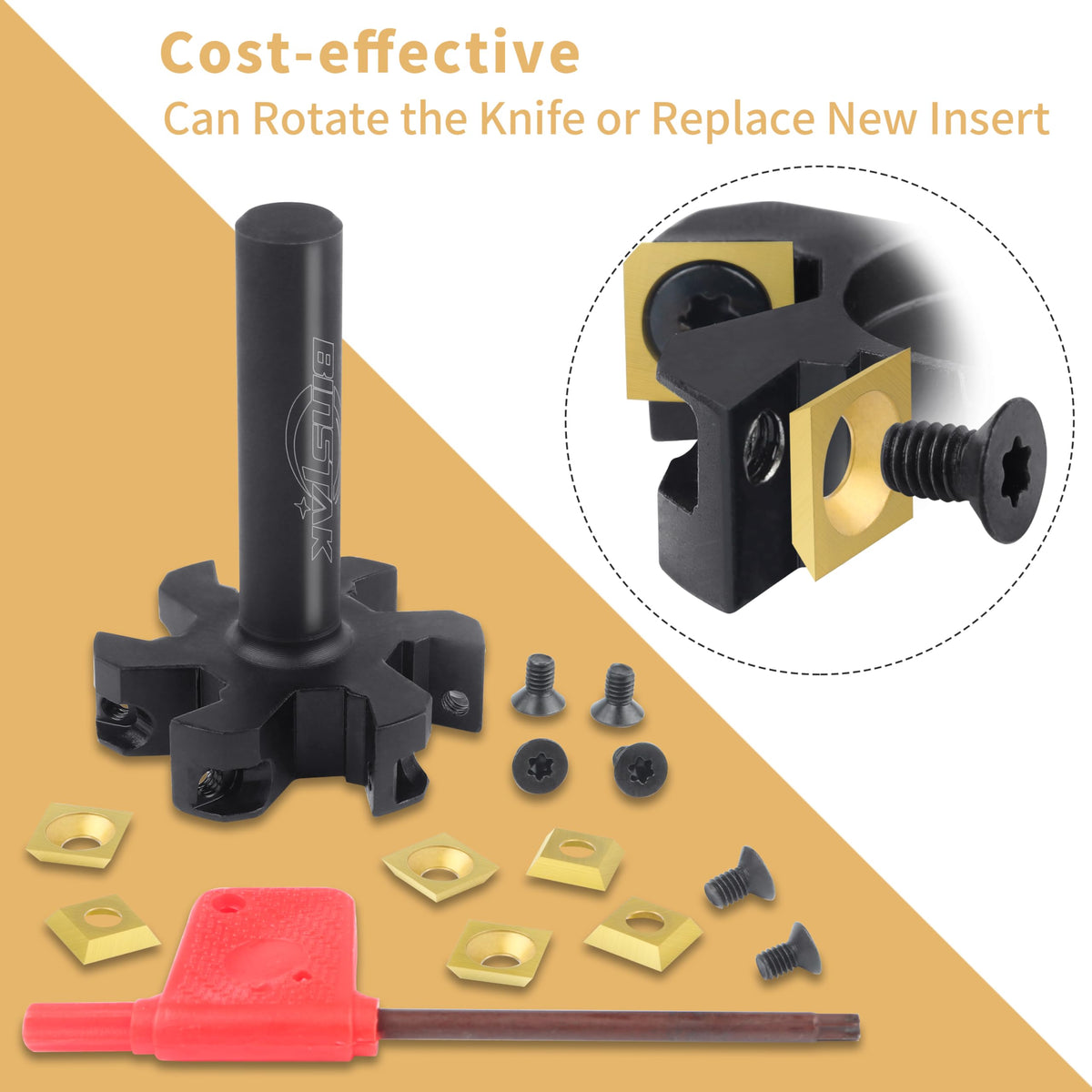

As a cost-effective solution, this bit uses four-sided solid carbide inserts. All four edges can be used; simply rotate or replace individual edges with a screwdriver to keep cutting sharp. This approach provides a lower overall cost per edge with compared to brazed or full-solid carbide bits, while still delivering solid performance on flat surfaces.

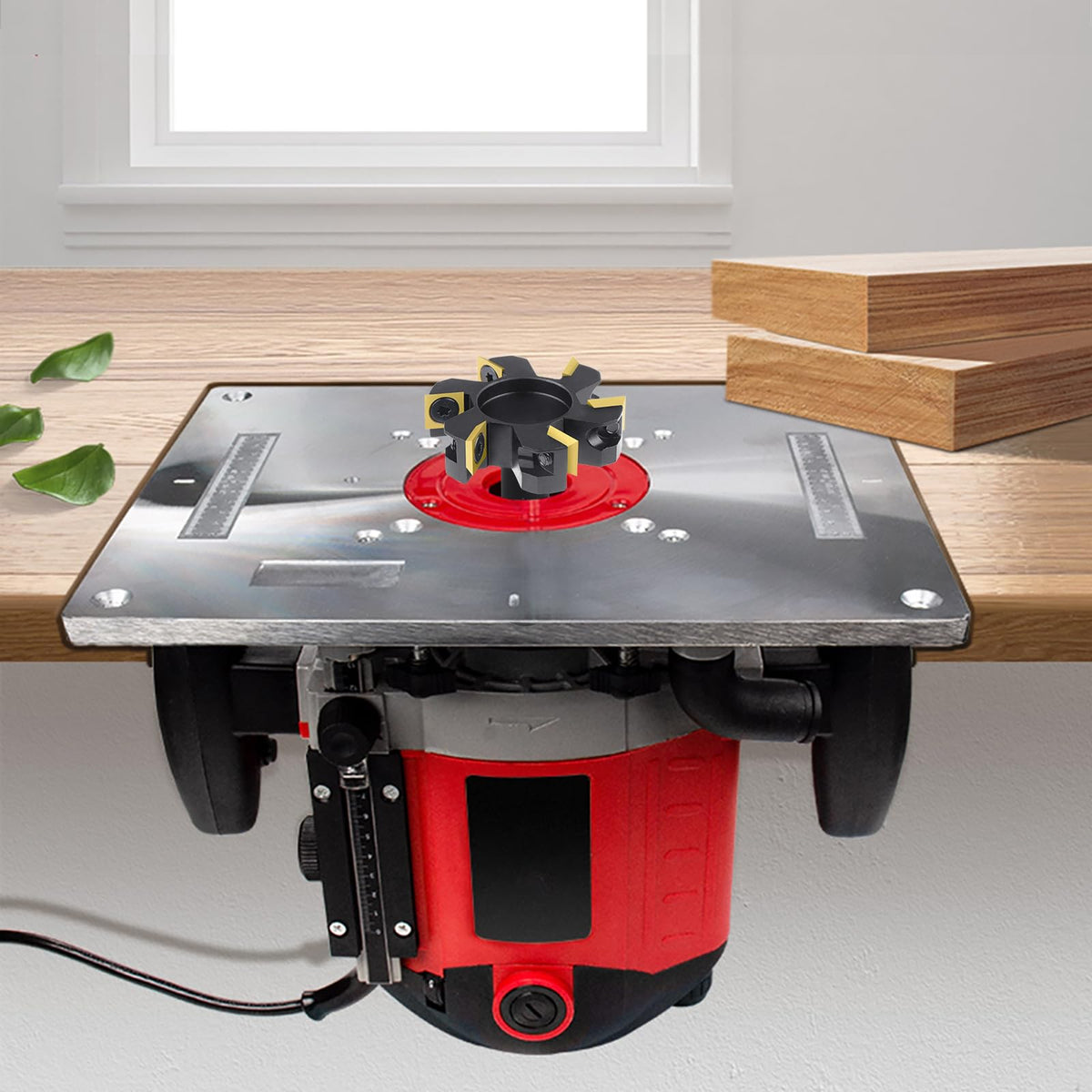

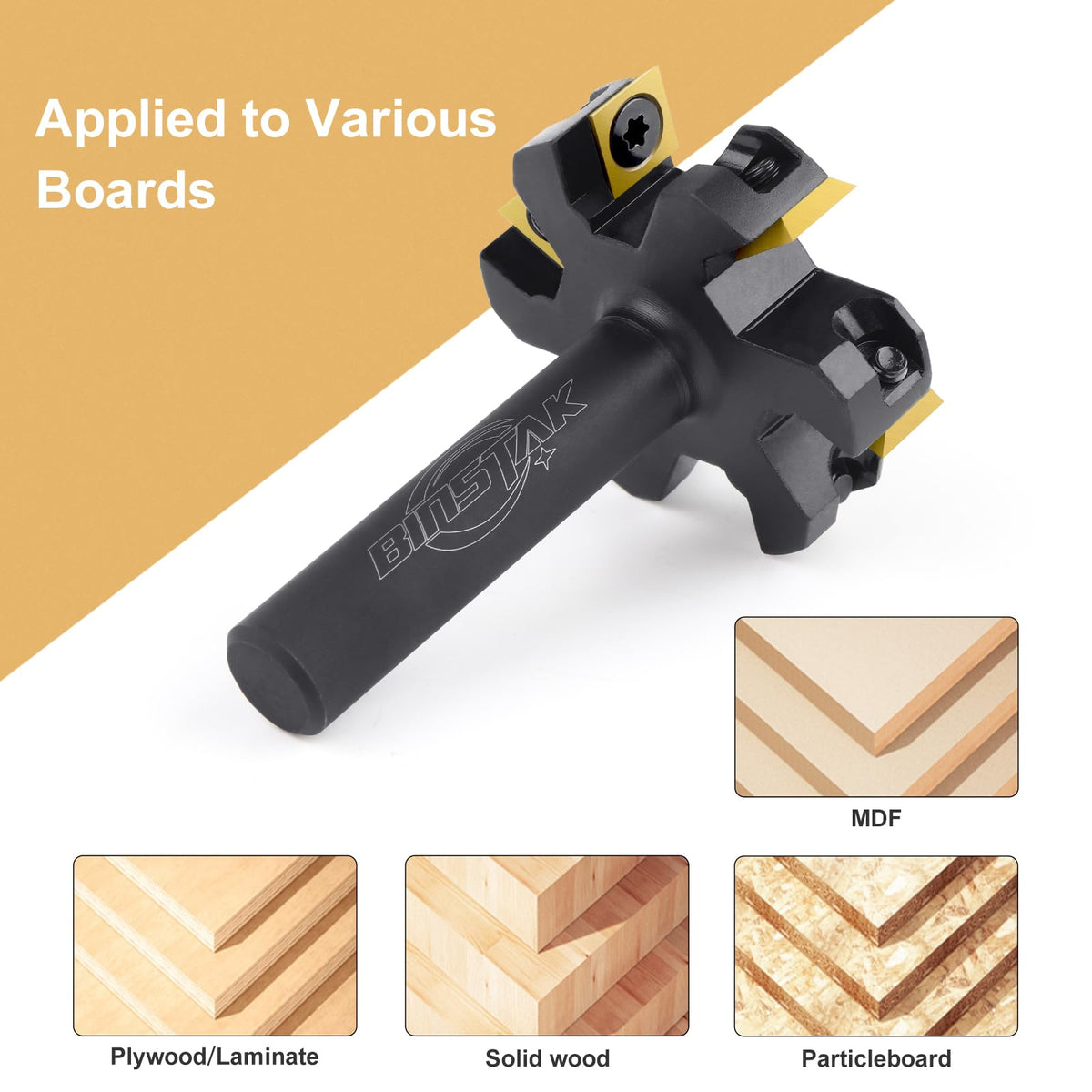

Ideal for wood slabs flattening, resurfacing, or planing the top surface of spoilboards, the bit handles a variety of materials—from soft to hard woods, particle board, MDF, plywood, laminate, and even acrylic. It is compatible with CNC routers and other automatic machines, as well as hand-held and table-mounted routers, enabling workflows across different workshop setups.

What to expect in practice

• Steady top-surface results with a balanced cut and reduced chatter.
• Versatility across soft and hard woods, composites, and panel materials.
• Cost-efficient edge usage by replacing inserts rather than entire bits.
• Broad compatibility with CNCs and manual routers alike.

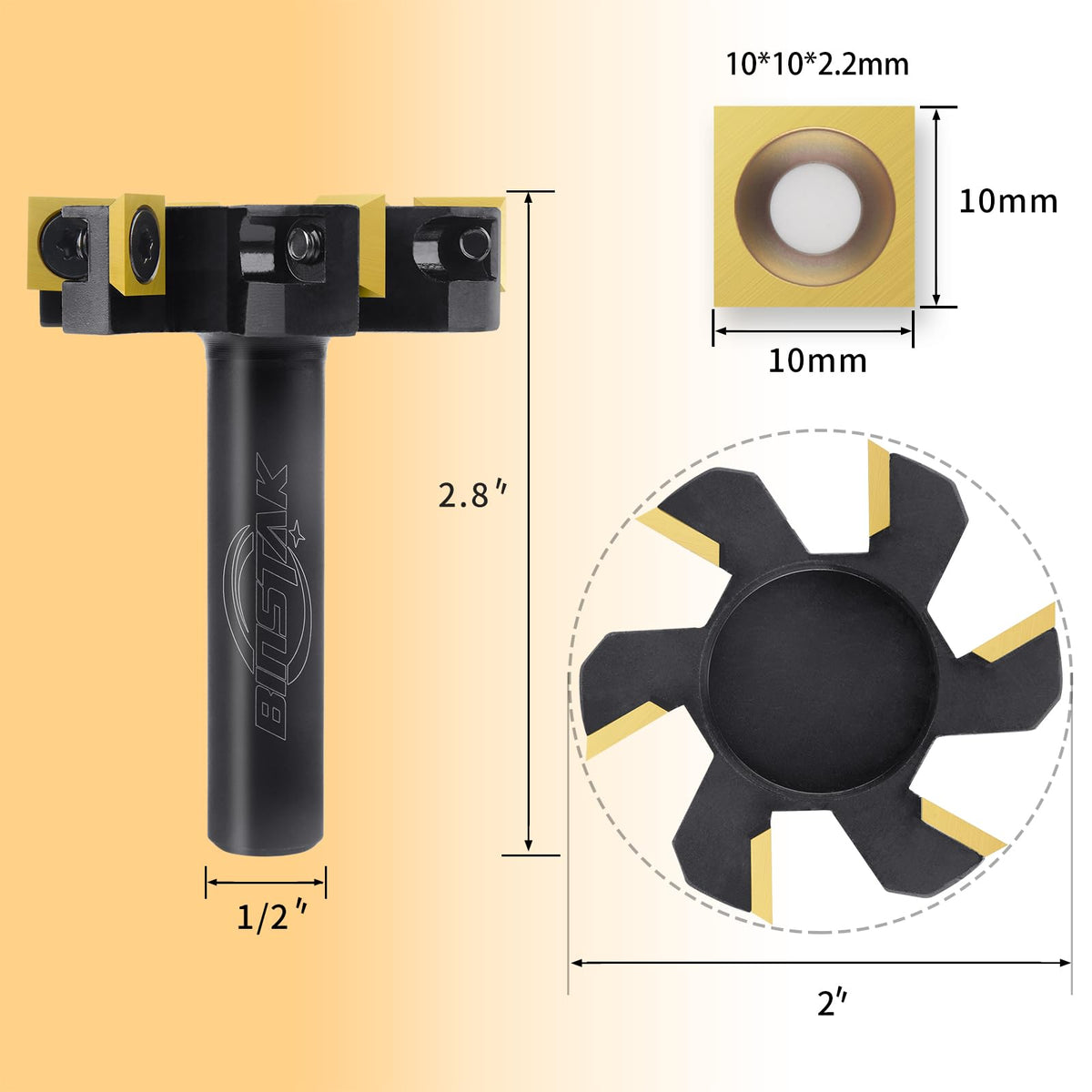

Technical highlights

• Shank: 1/2 inch
• Cutting diameter: 2 inches
• Carbide inserts: 10 x 10 mm, 2.2 mm thick
• 6-wing design for balanced, efficient cuts
• TiN coating for potential wear resistance
• Anti-kickback body for controlled operation
• 4-sided inserts for extended usable life
