bayite DC 8-100V 0-100A LCD Meter with 100A Shunt – 4-in-1 Ammeter

Overview

The bayite DC 8-100V 0-100A LCD Meter with 100A Shunt is a compact 4-in-1 monitoring solution designed for real-time insight into your power system. With a clear, large LCD, you can track voltage, current, active power, and energy all at once. This device is ideal for hobby projects, DIY power projects, solar setups, and portable electronics where quick, readable measurements help you stay in control of performance.

Key Specifications at a Glance

• Voltage range: DC 8–100 V
• Current range: 0–100 A
• Power range: 0–10 kW
• Energy range: 0–9,999 kWh

The meter stores energy data even when power is cut, making it convenient to review usage history after a session. A blue backlight can be turned on or off to suit ambient lighting and readability, ensuring the display remains legible in various environments.

Practical Uses

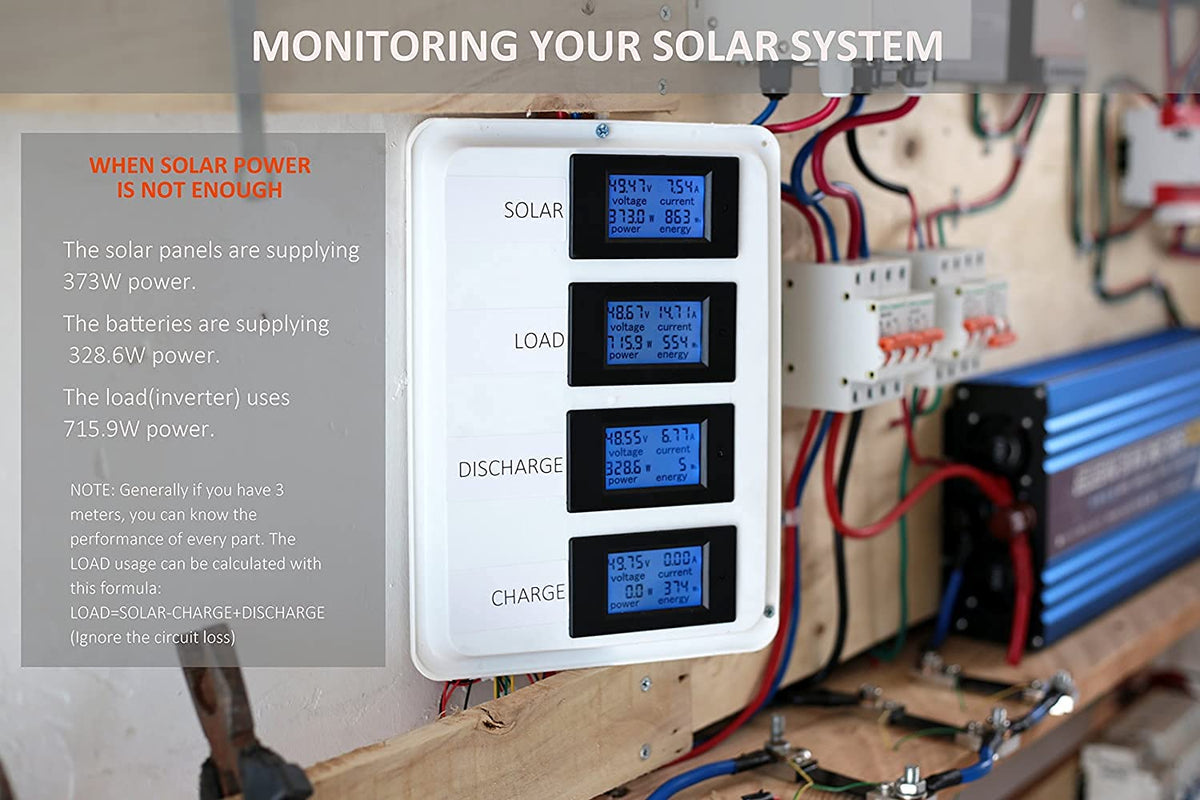

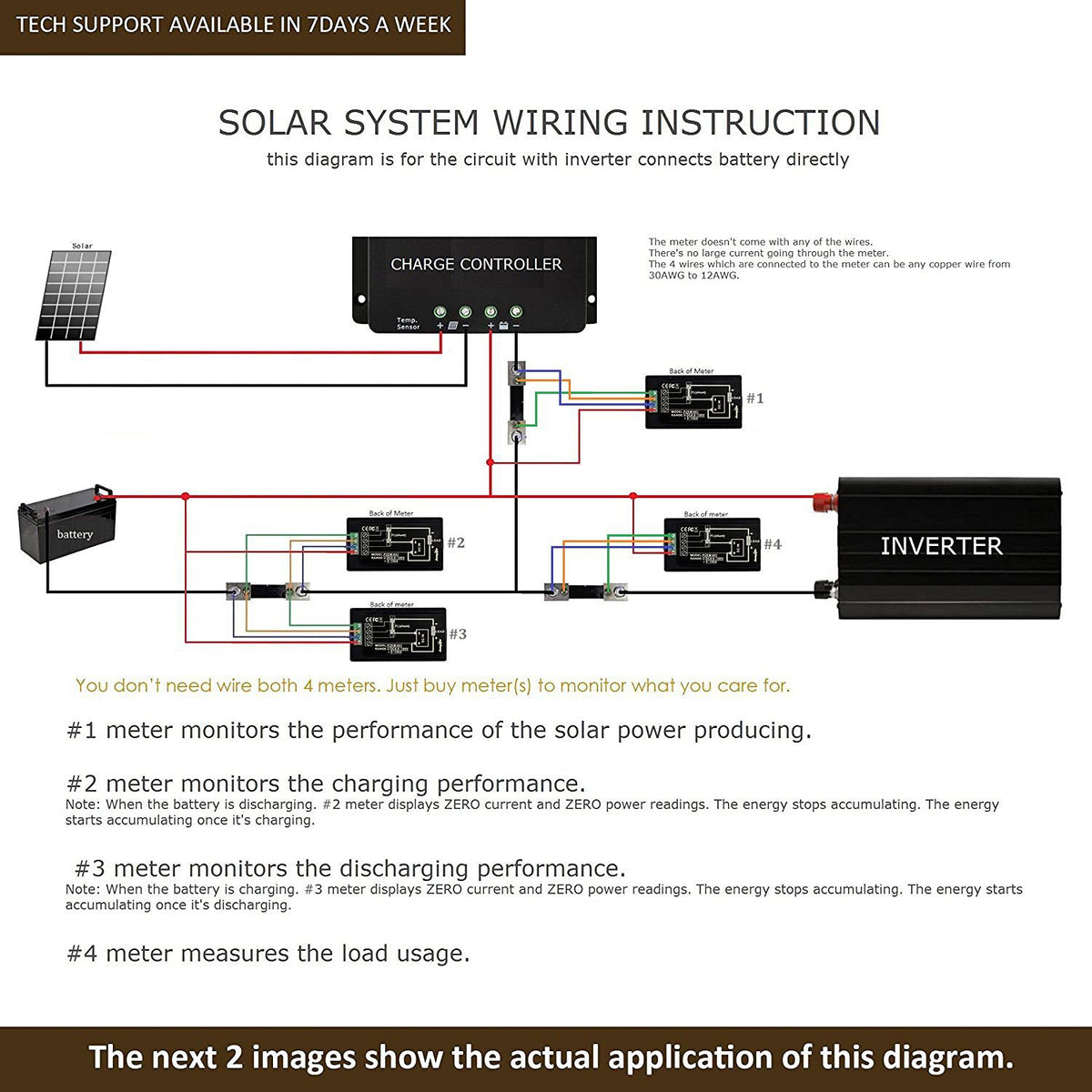

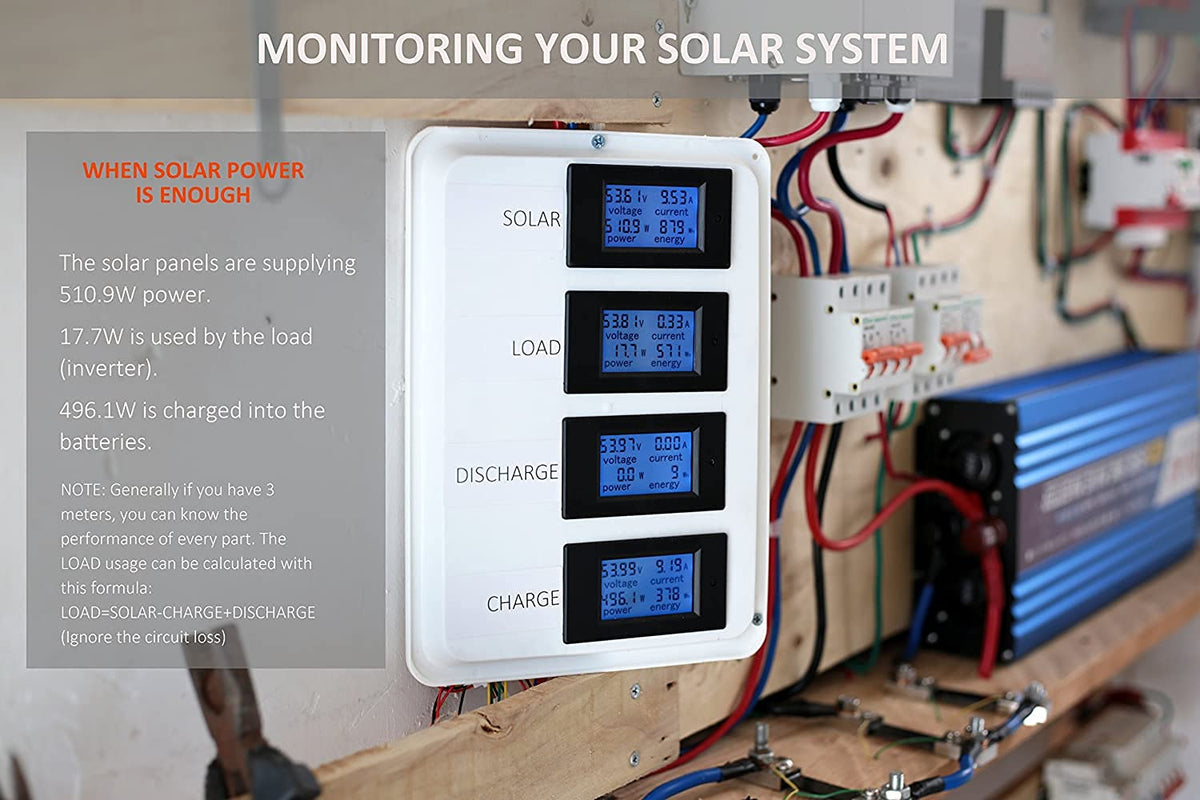

• Track battery or solar panel outputs in small-scale setups and charging stations.
• Monitor the live electrical load on workshops, hobby rooms, or testing benches.
• Compare energy usage across different devices or configurations without ambiguity.
• Use as a quick diagnostic tool to observe how changes in wiring or components affect voltage and current.

Design and Usability

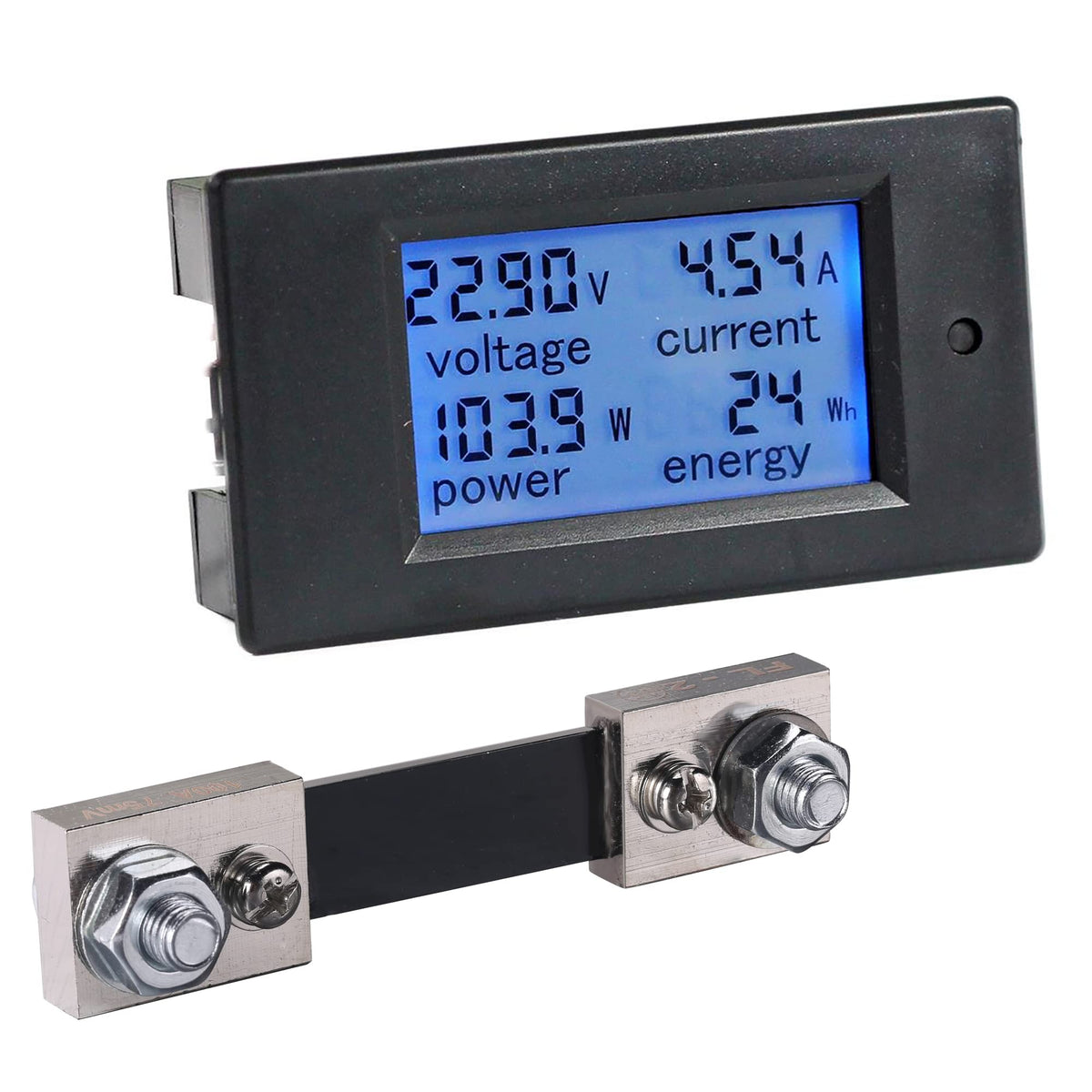

• 4-in-1 readout provides voltage, current, active power, and energy simultaneously on a single large screen.

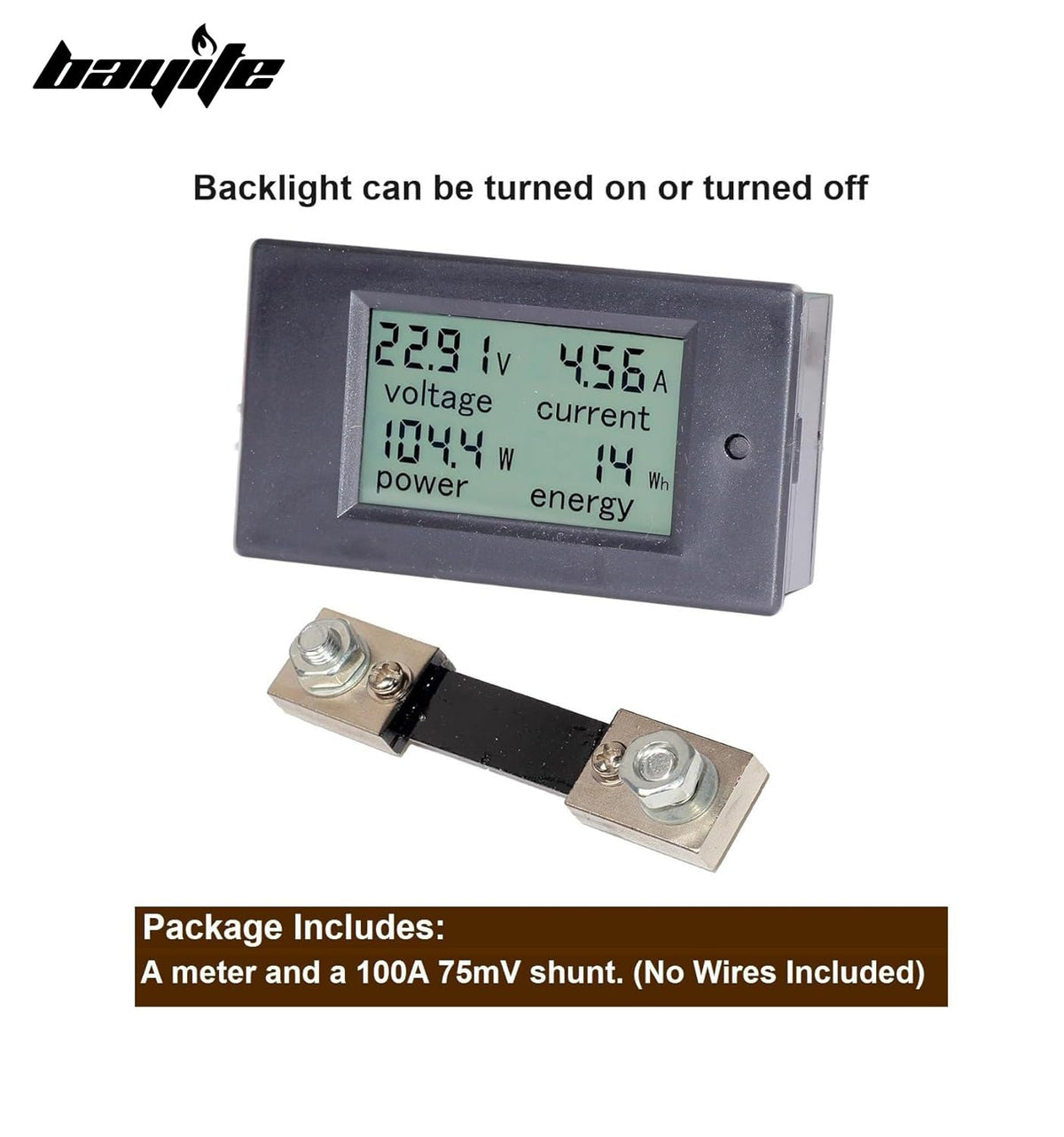

• Blue backlight improves readability in dim environments; it can be disabled when not needed.
• Overload alert feature flashes the power value if active power exceeds a programmed threshold, helping preempt overloads.

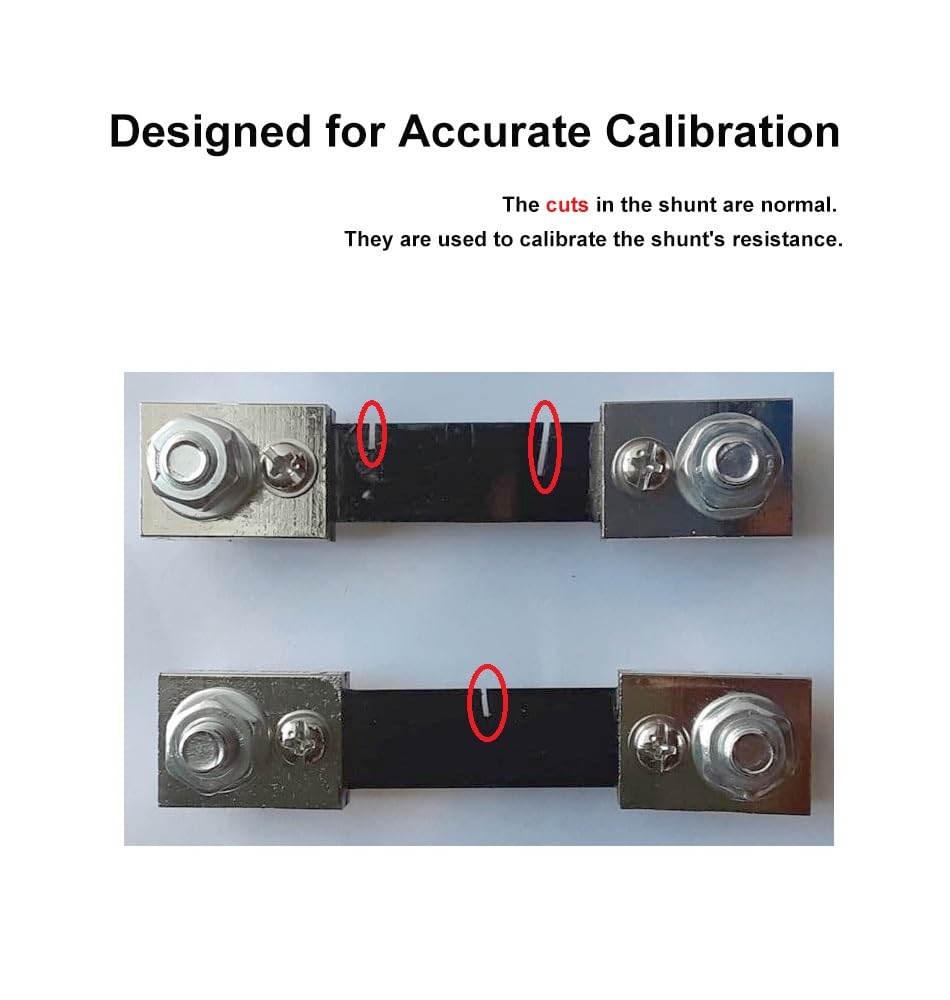

• Note: This listing includes only the display unit and the 100A current shunt; wires and other accessories are not included.

Setup Tips

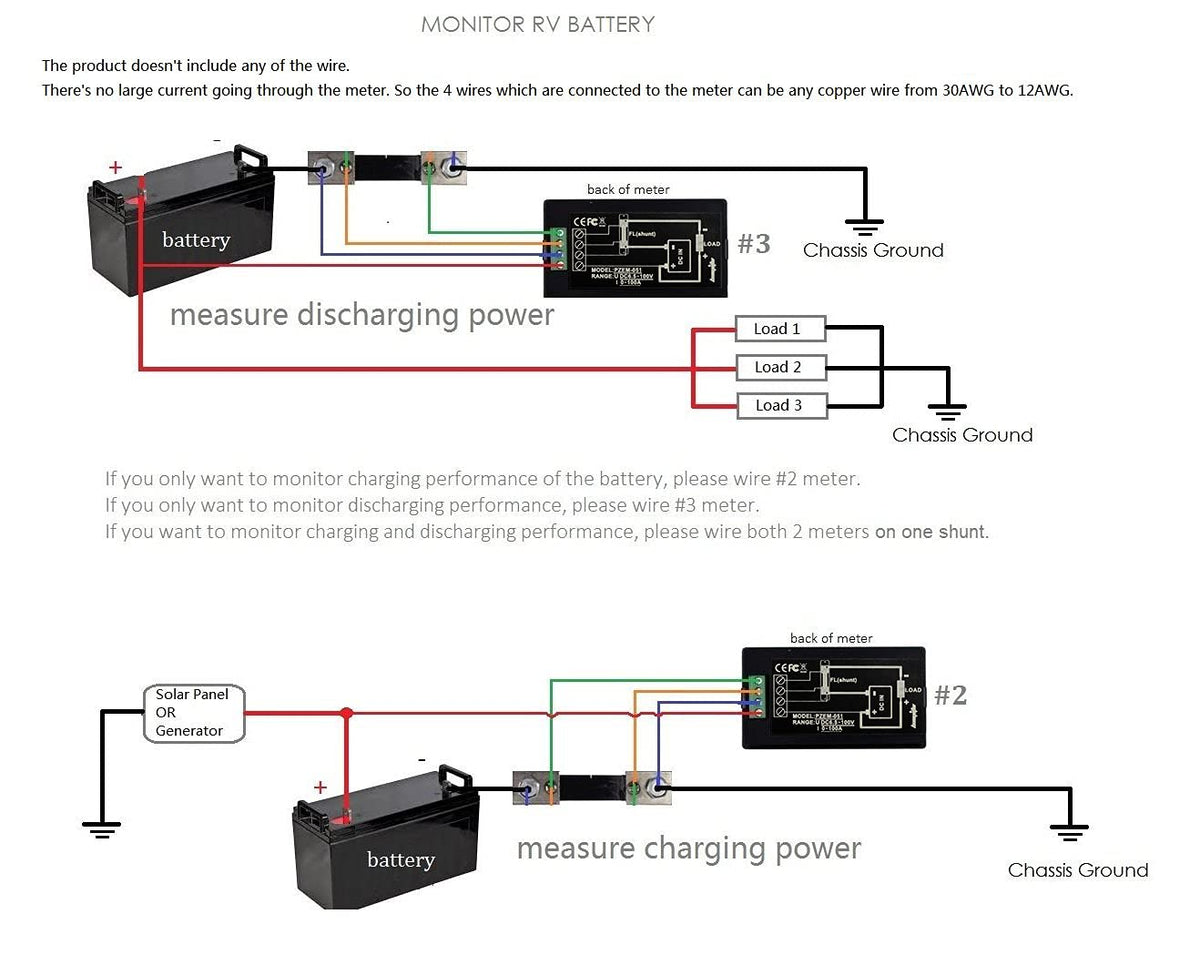

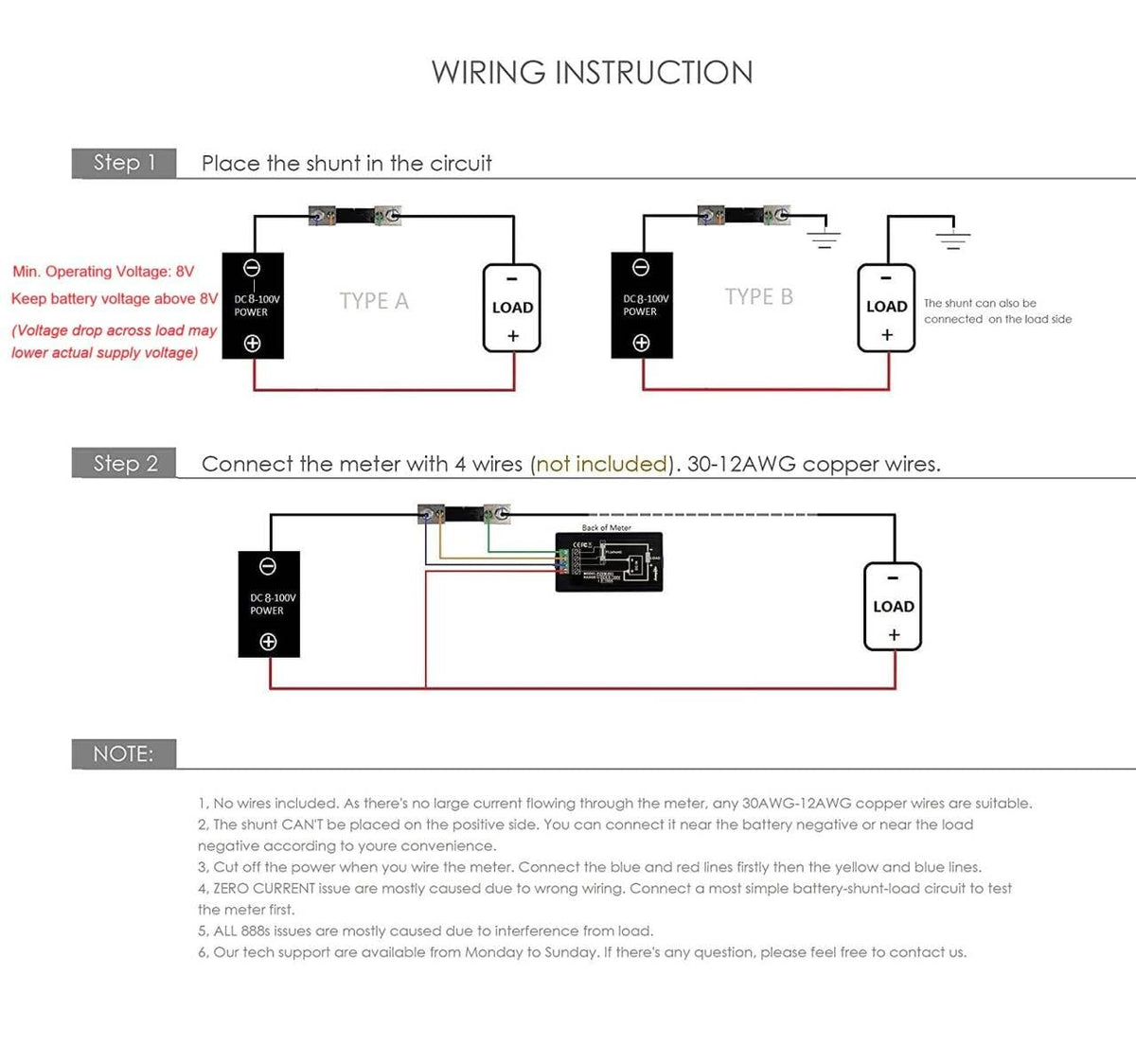

Plan your wiring layout so the shunt is placed in the main current path. Verify polarity and ensure the device remains within its voltage and current limits for accurate readings. The separate shunt means you’ll need appropriate wiring and connectors to complete the installation.

Why Choose bayite

Bayite designs practical, reliable meters that balance clarity with robust functionality. This 4-in-1 unit emphasizes straightforward monitoring, historical energy data, and intuitive alerts, making it a versatile companion for ongoing power projects and quick checks during assembly or testing.
