Arctic Hayes PH001 13g White Smoke Pellet – Tube of 6 for Air System Testing

Overview

Introducing Arctic Hayes PH001 13g White Smoke Pellet, a compact visual aid and test pellet designed for professionals who work with air systems. Supplied in a resealable plastic tube, these pellets offer a controlled source of white smoke that makes invisible air movement visible in real world settings. The crisp plume helps you observe how air travels around equipment, through openings, and within ducts, supporting informed decisions about layout and operation without relying on guesswork.

Whether you are testing air filters, evaluating fume hood performance, balancing airflow, or assessing fan behavior, this product provides a practical, non-oil based option to observe plume dynamics with minimal setup. The dense white plume delivers high contrast against most environments, making it easier to spot flow patterns, stagnation zones, and the influence of nearby devices. Each test event typically produces a distinct plume for about 30 seconds, giving you a reproducible window to observe movement and capture observations before the air returns to stillness. The packaging keeps pellets fresh and ready for repeated use, while the tube’s resealable cap minimizes exposure to humidity between tests.

Key benefits

• Approximate 18 cubic meters of dense smoke per test event for clear flow visualization
• Smoke duration around 30 seconds, providing a distinct yet temporary plume
• Non-toxic and oil-free formulation for safer handling and cleaner workspaces
• BS5440-1 compliant, offering a reliable baseline for basic ventilation checks
• White smoke with high-contrast visibility across typical testing environments

Usage and ideas

Use the pellets to explore common air movement scenarios in laboratories, workshops, or industrial settings. The resealable tube supports secure storage between tests, while quick setup helps you run multiple checks in a single session. This makes it suitable for routine maintenance, equipment verification, or educational demonstrations where a temporary, visible plume can illuminate airflow paths.

• Test air filtration efficiency and filter integrity during routine checks
• Observe how air flows around equipment such as fans or balance systems
• Verify fume hood airflow and capture zones during maintenance
• Support photography, stage effects, or product demonstrations with temporary white smoke
• Educational demonstrations of airflow concepts in teaching labs

In the box and practical considerations

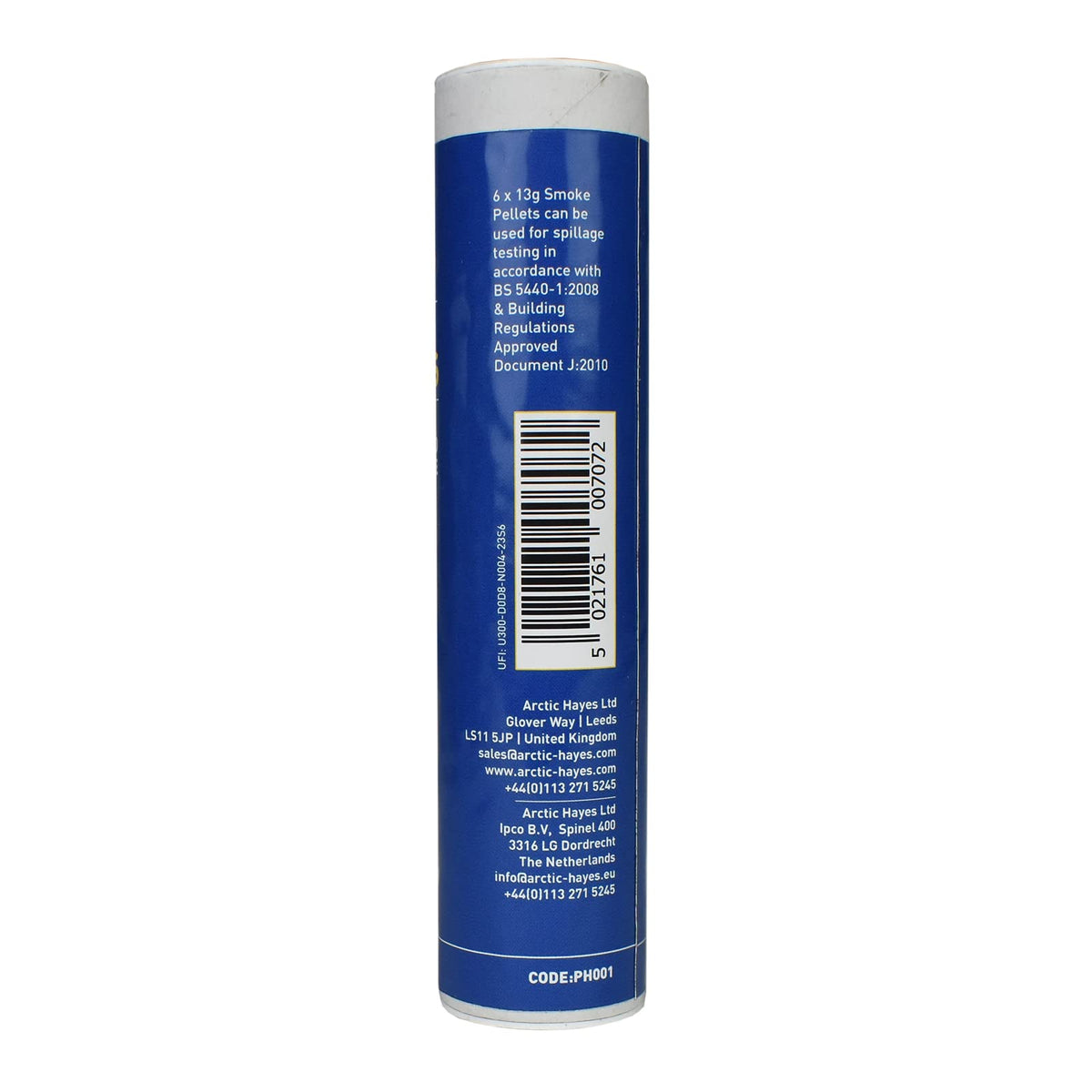

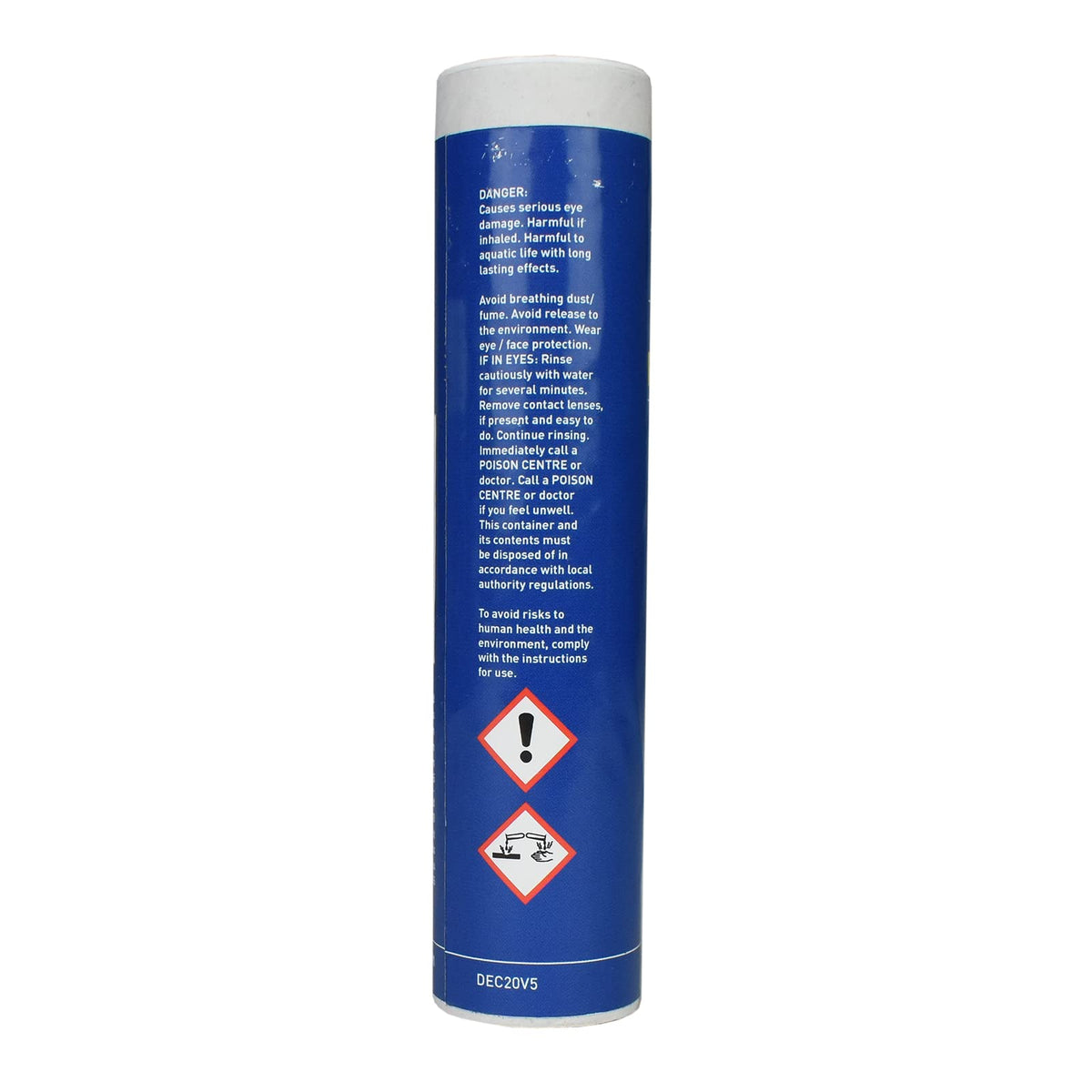

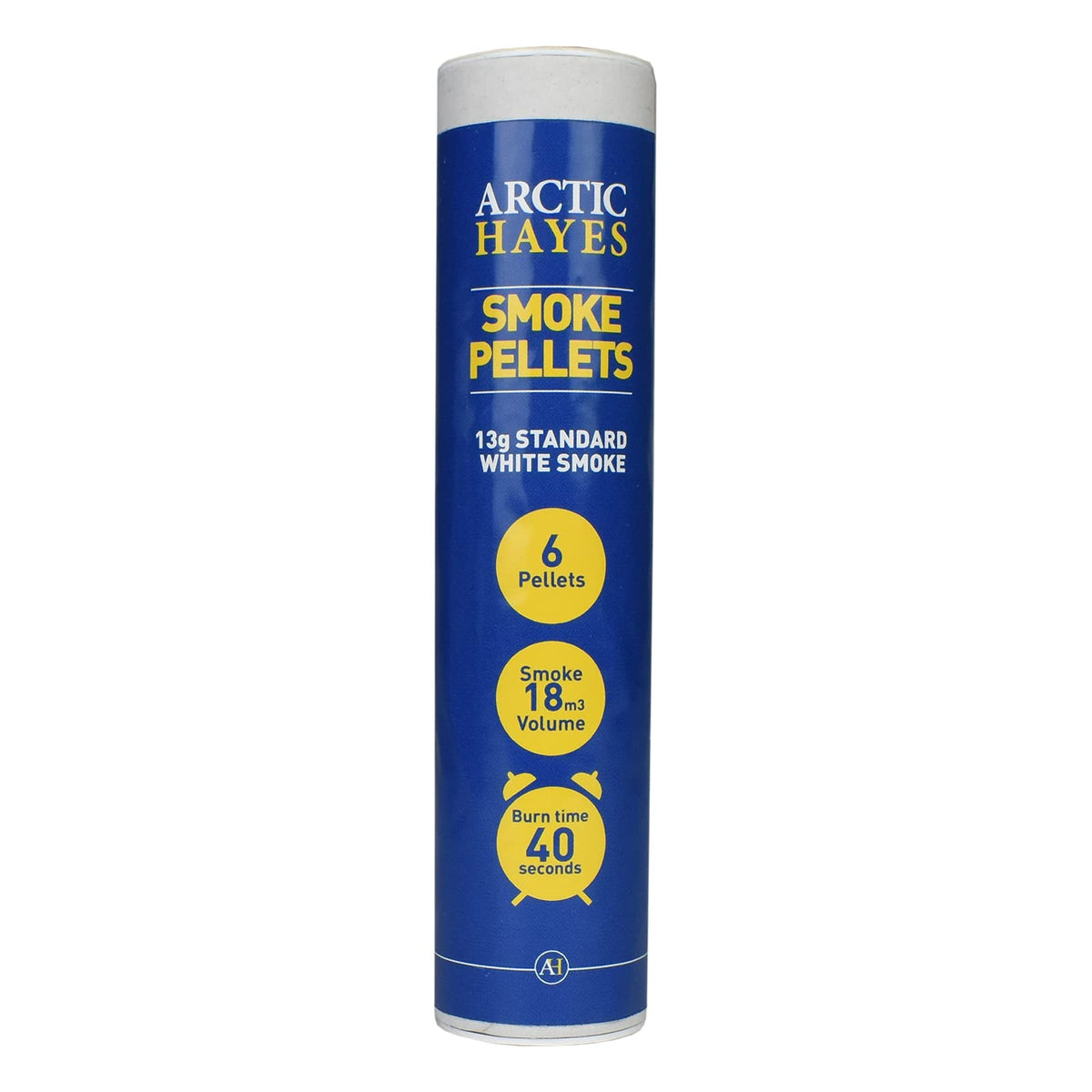

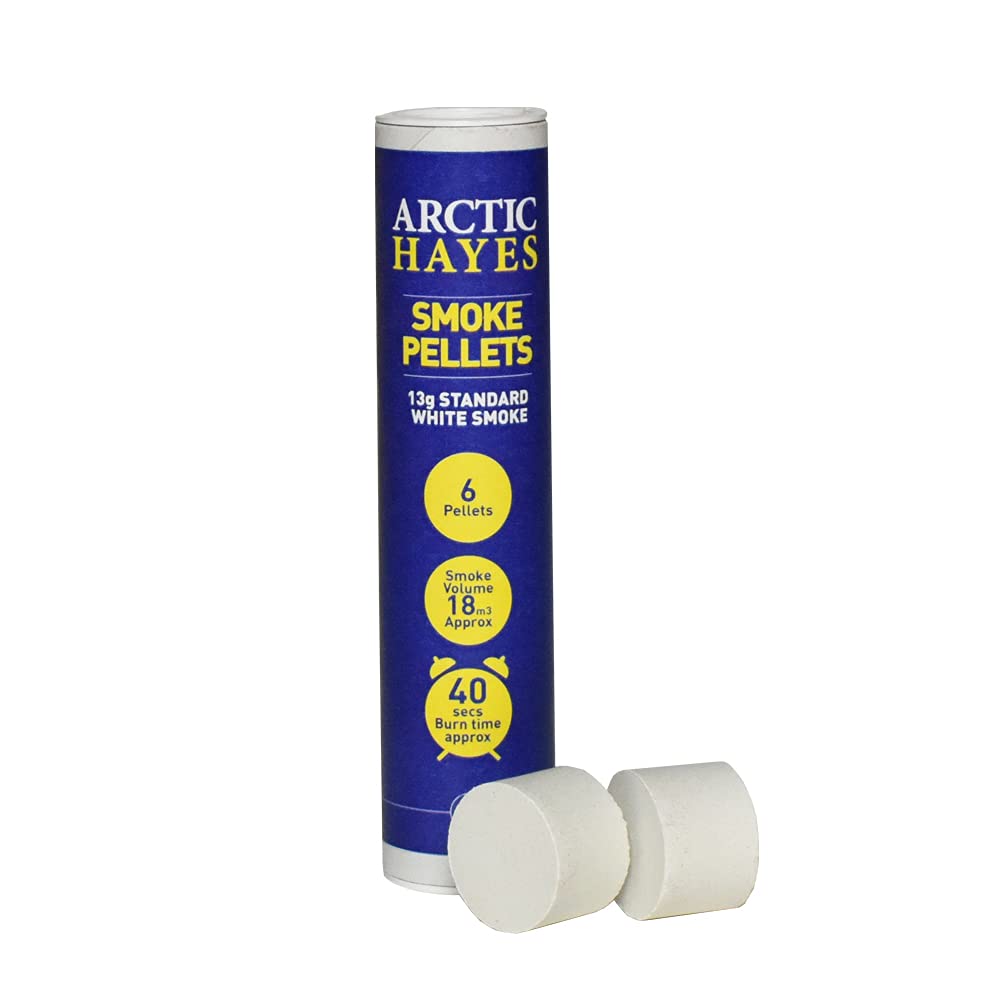

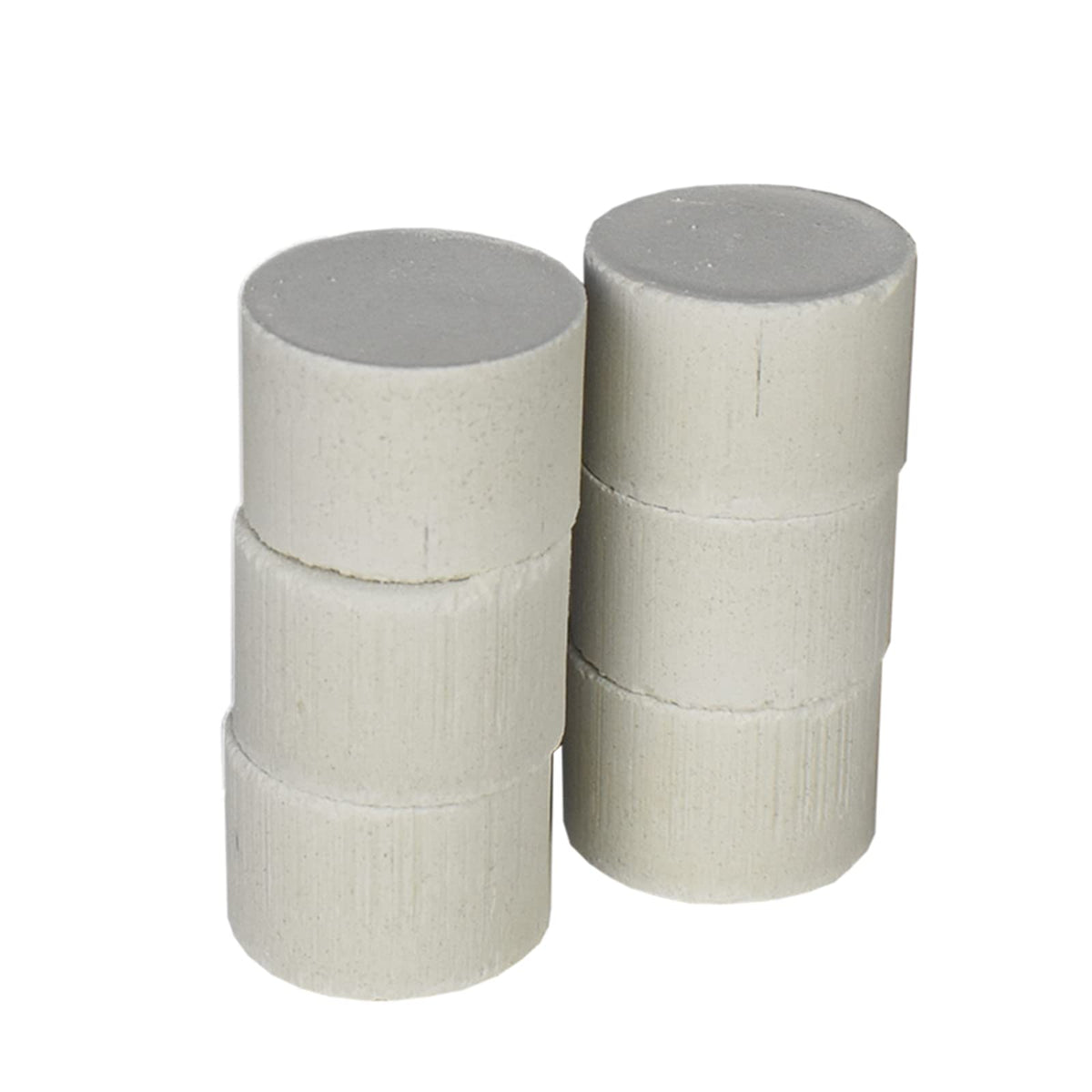

What’s in the box: a resealable plastic tube containing multiple 13 g white smoke pellets designed for repeated tests. The tube design enables easy transport and quick access on site. For best results, operate in well-ventilated areas and avoid direct inhalation. Use as a controlled demonstration aid rather than a substitute for professional ventilation testing.

Specifications

• Pellet weight: 13 g
• Smoke volume: ~18 m³ per pellet
• Smoke duration: ~30 seconds
• Color: White
• Compliance: BS5440-1
