American Standard 6581001.020 Maybrook Universal Washout Top Spud Urinal, 1.0 GPF, White

Efficient, commercial-grade urinal design

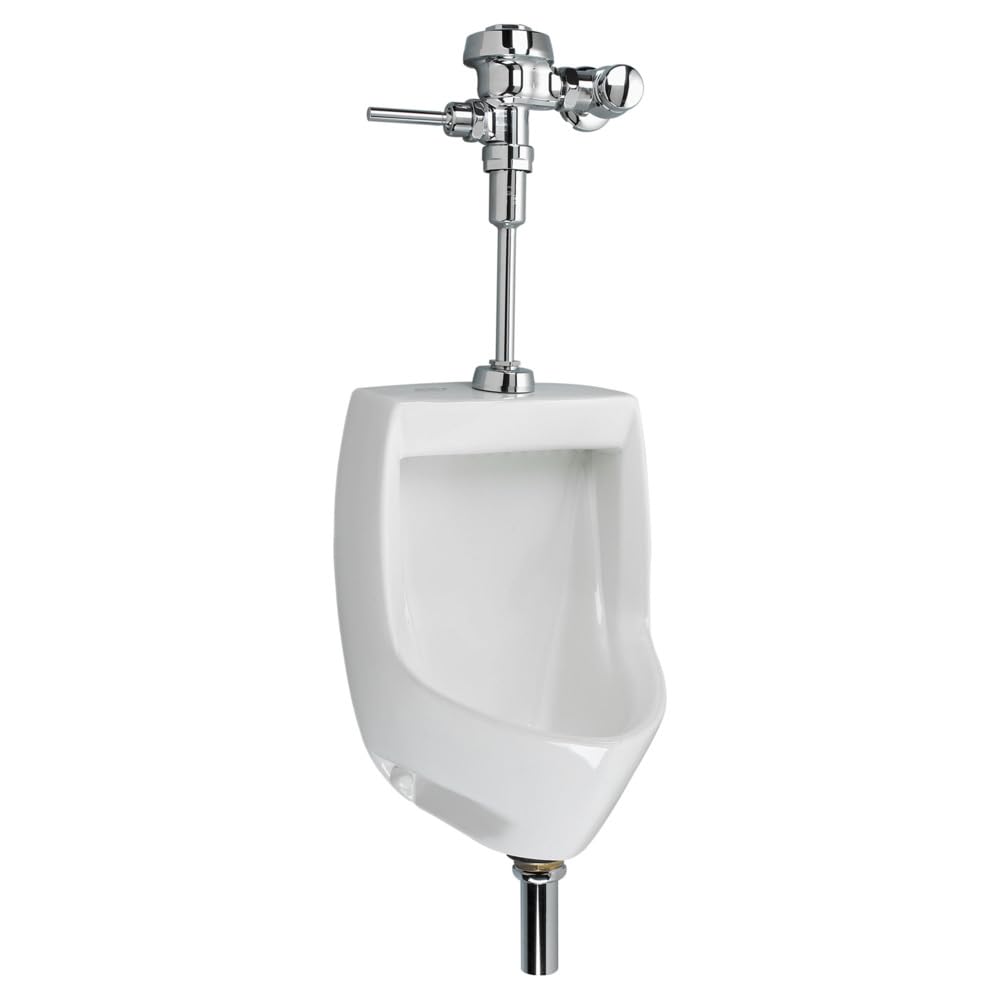

Meet the American Standard 6581001.020 Maybrook Universal Washout Top Spud Urinal, a compact solution for modern restrooms that demand efficiency and dependable performance. It operates in the range of 0.125 gpf to 1.0 gpf, letting you align flush control with your plumbing setup. Note that flush valves are not included, giving you flexibility to pair with your preferred valve options.

Key benefits

• Ultra-high efficiency: low gallons-per-flush capability supports water conservation while maintaining effective flush action.
• Washout flush action: the flushing rim works with a washout flush, helping clear the bowl with confidence.
• Dependable build: integral strainer and sturdy connection points promote long service in busy spaces.

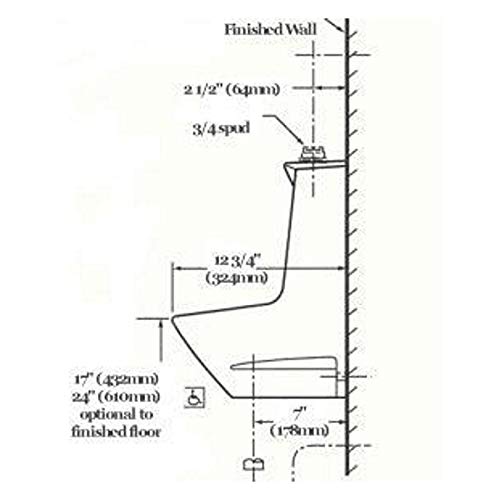

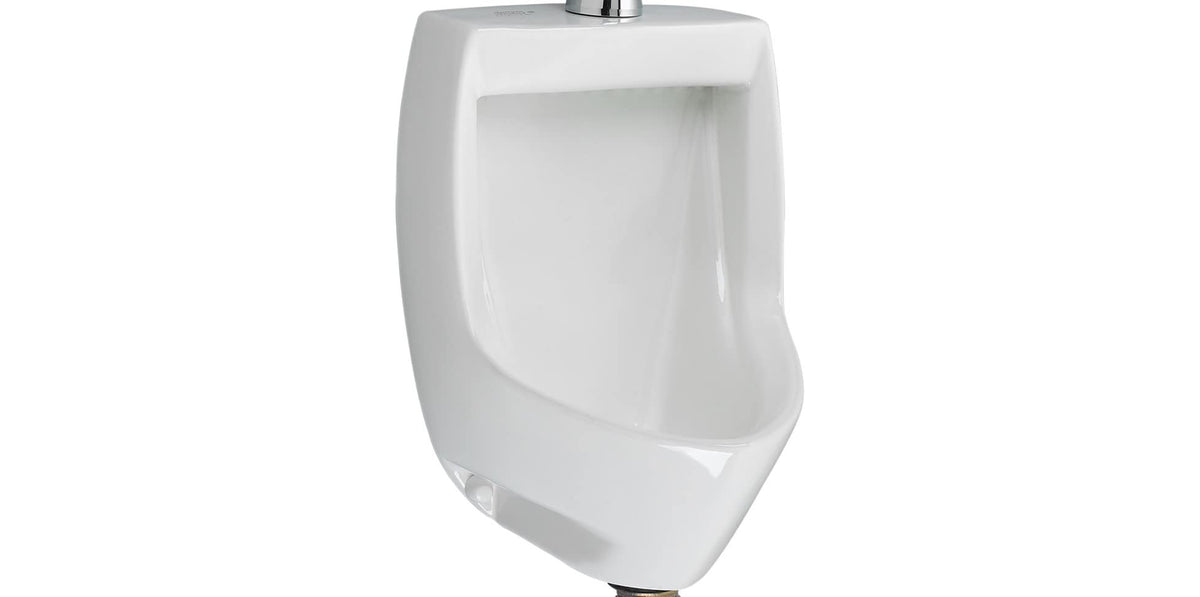

Design and installation details help facilities teams plan ahead. The unit features a 3/4 inch inlet spud and a 1-1/2 inch outlet spud with a tubing tailpiece, plus a wall hanger for secure mounting. Its compact 12-3/4 inch square footprint and 18-inch height fit standard restrooms without crowding surrounding fixtures.

What’s included and how it ships

• One Maybrook urinal with tubing tailpiece
• Wall hanger for quick wall mounting

Real-world use cases span high-traffic commercial settings such as offices, schools, airports, and retail centers. Users may notice reduced water usage over time, while maintaining a clean, reliable flush. The durable construction supports daily wear, and the flush rim design helps maintain bowl hygiene between cleanings.

Tips for selection: consider pairing with compatible flush valves that fit within the 0.125–1.0 gpf range and your local water efficiency policies. This Maybrook top-spud urinal is designed for commercial reliability and streamlined maintenance, not as a guaranteed outcome; expect possibilities rather than promises.
