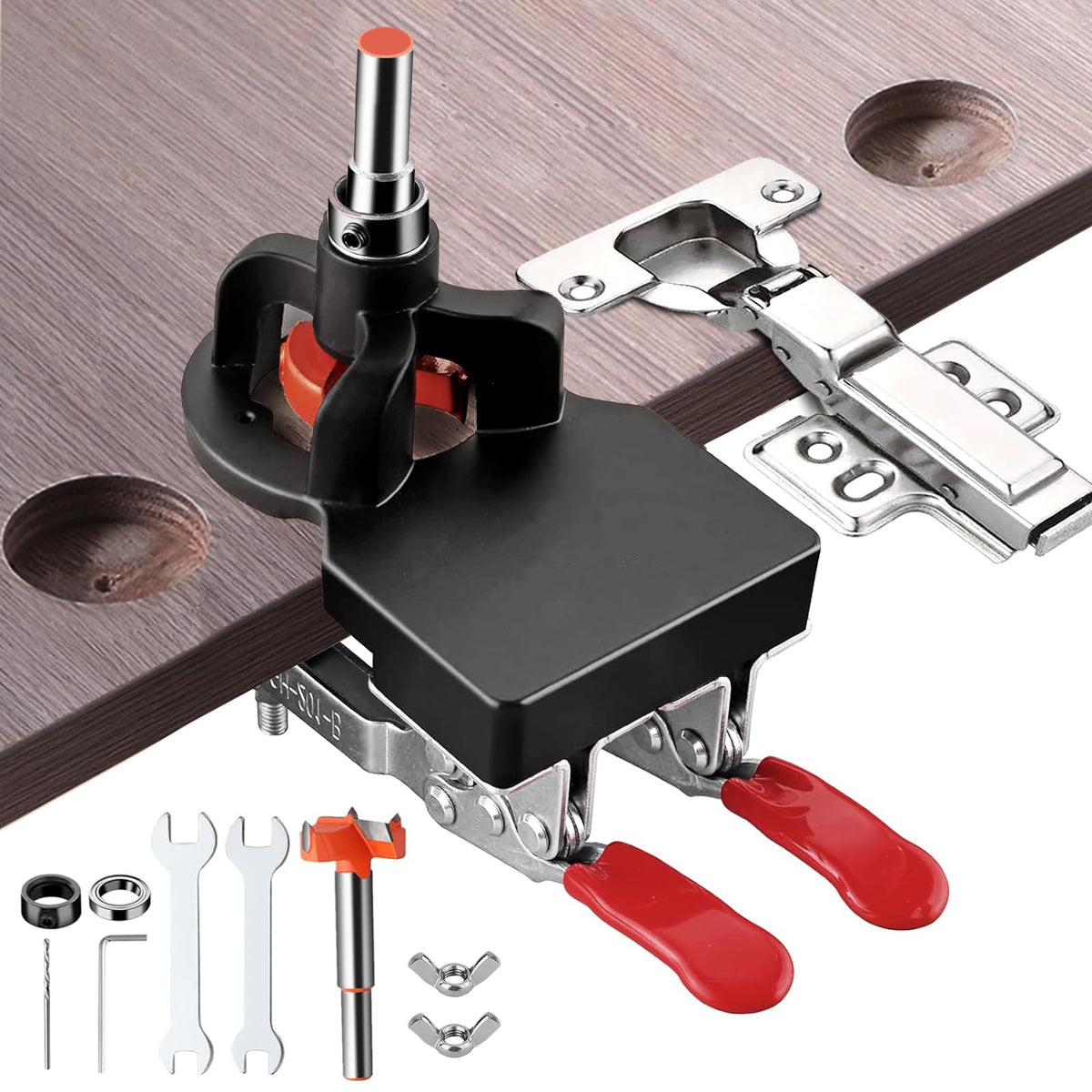

Adoles 35mm Concealed Door Hinge Jig – Accurate Locking Cabinet Hinge Guide (Aluminum Alloy)

Meet the Adoles 35mm Concealed Door Hinge Jig, a precision guide tool designed to simplify the installation of concealed hinges. Built from high-quality aluminum alloy, this jig delivers a smooth, sturdy feel and reliable alignment, helping you achieve clean, flush cabinet doors in a range of DIY projects. Whether you’re refreshing kitchen cabinetry, revamping a closet, or upgrading a vanity, this jig is crafted to support accurate hinge placement with minimal effort. The tool’s lightweight yet rigid construction reduces fatigue and stands up to repeated use, making it a practical addition to any DIYer’s toolkit.

Core capabilities at a glance

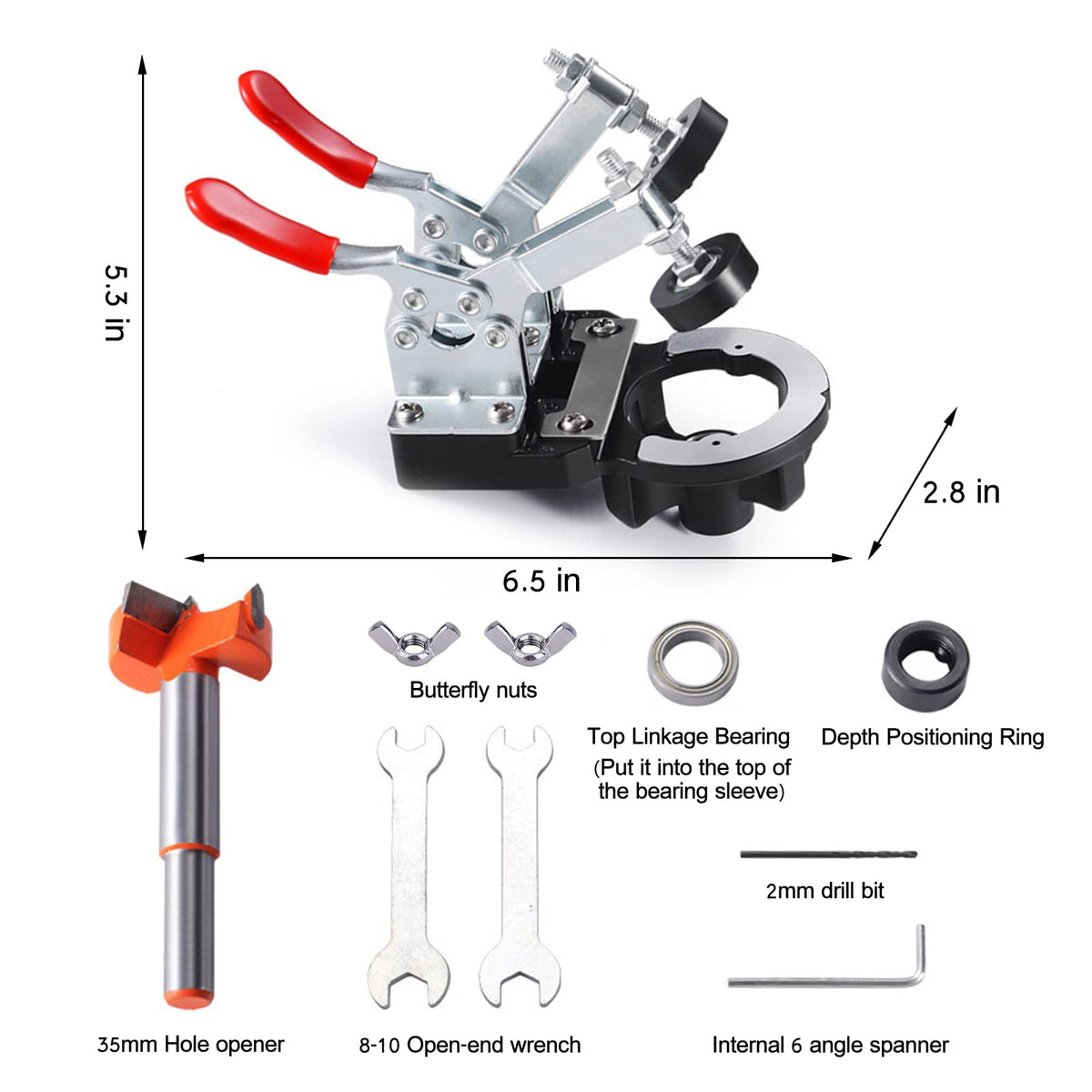

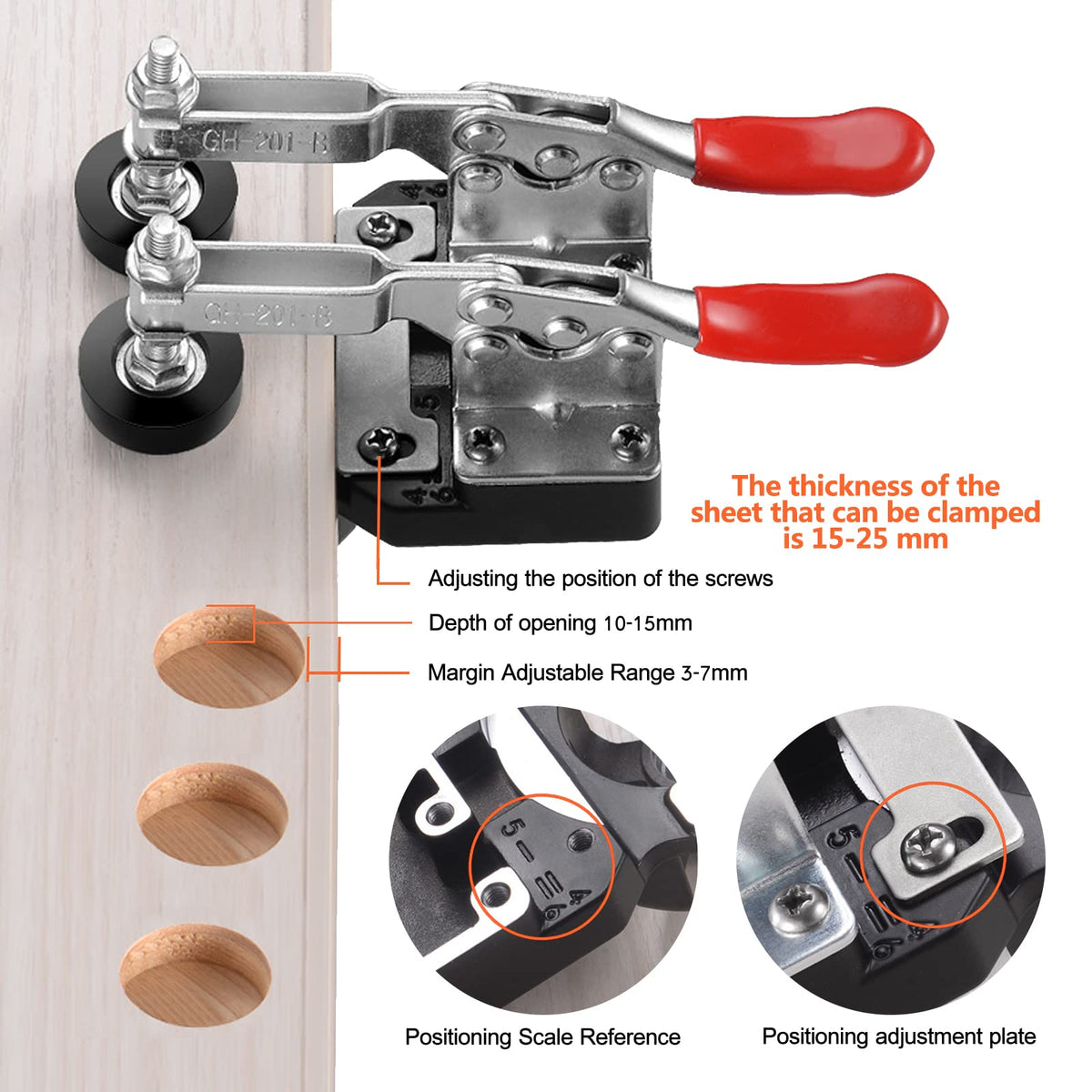

• Adjustable double clamping plate supports 15–25 mm panel thickness for versatile mounting.
• Opening depth is adjustable from 10 to 15 mm, enabling precise hinge insertion depth.

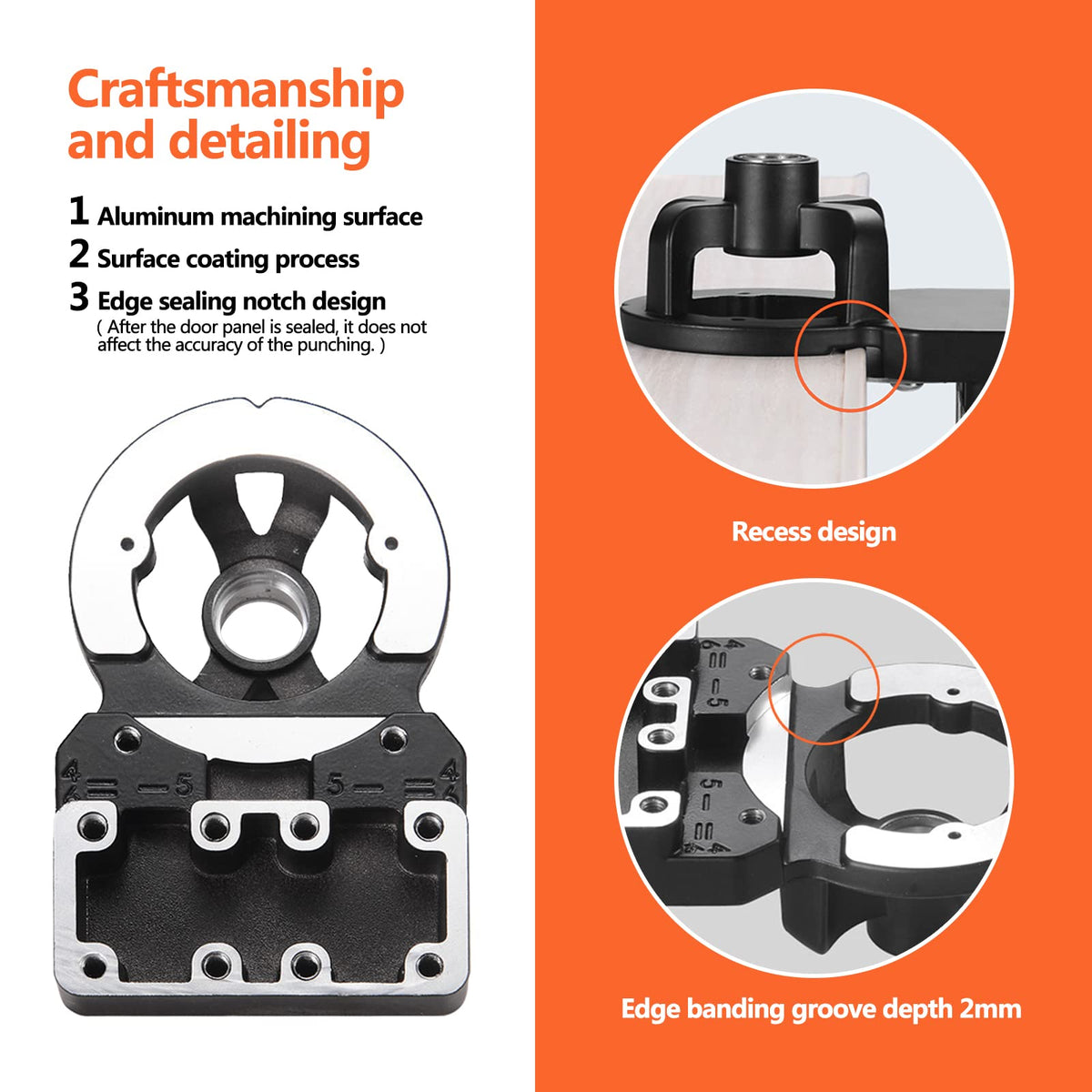

• Drilling edge distance can be set between 3 and 7 mm for flexible hinge alignment.

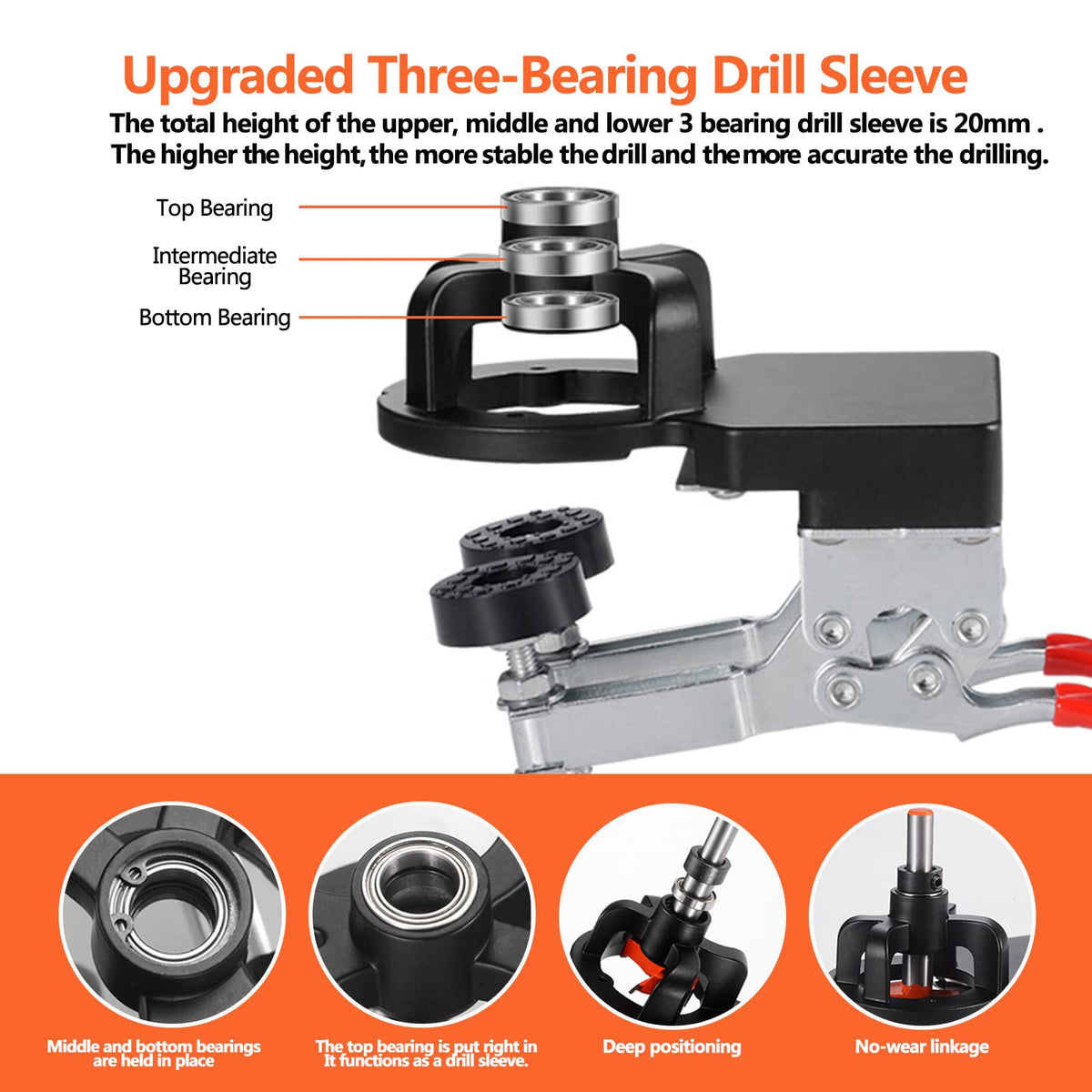

• Upper, middle, and lower three bearing drill sleeves ensure smooth, controlled drill motion and accurate hole openings.

Practical use cases

• Ideal for DIY cabinet projects where neat, concealed hinges are preferred for a clean look.
• Suitable for multi-angle drilling, allowing fast setup for various door configurations without specialized equipment.

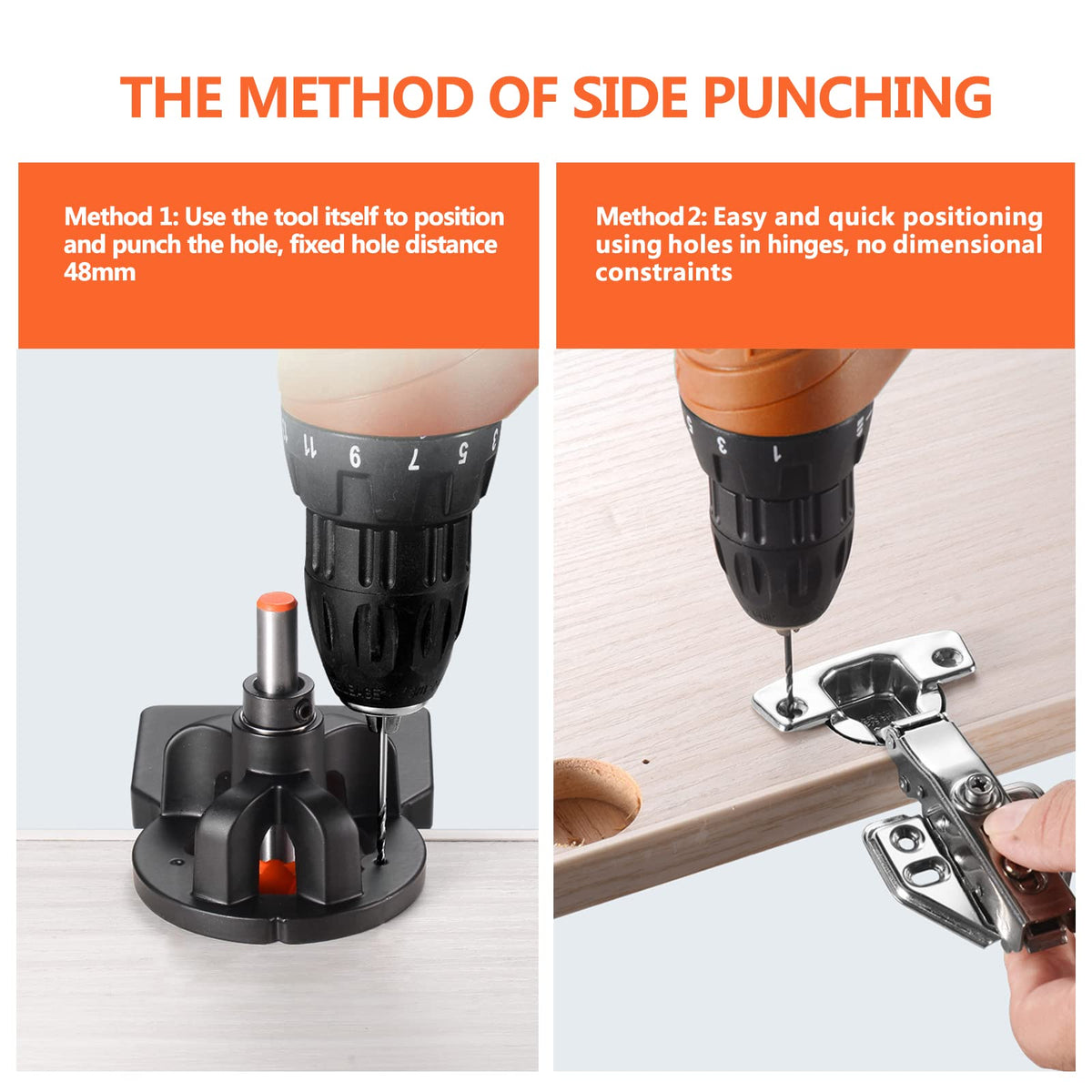

• Easy to use with any standard drill, making it accessible to first-time woodworkers as well as seasoned handymen.

What you get and why it matters

• Premium aluminum alloy construction for durability and a light, cool-to-the-touch feel.

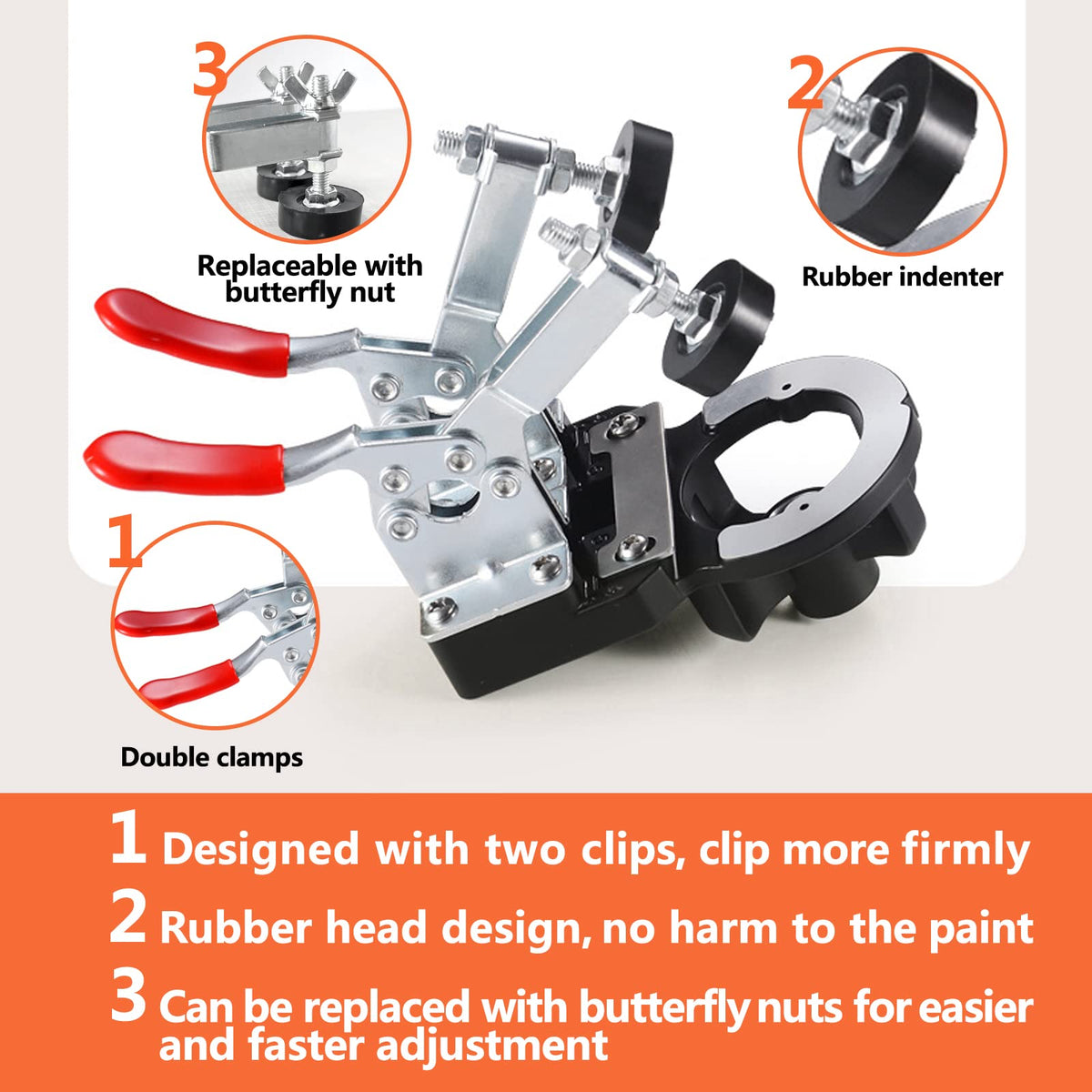

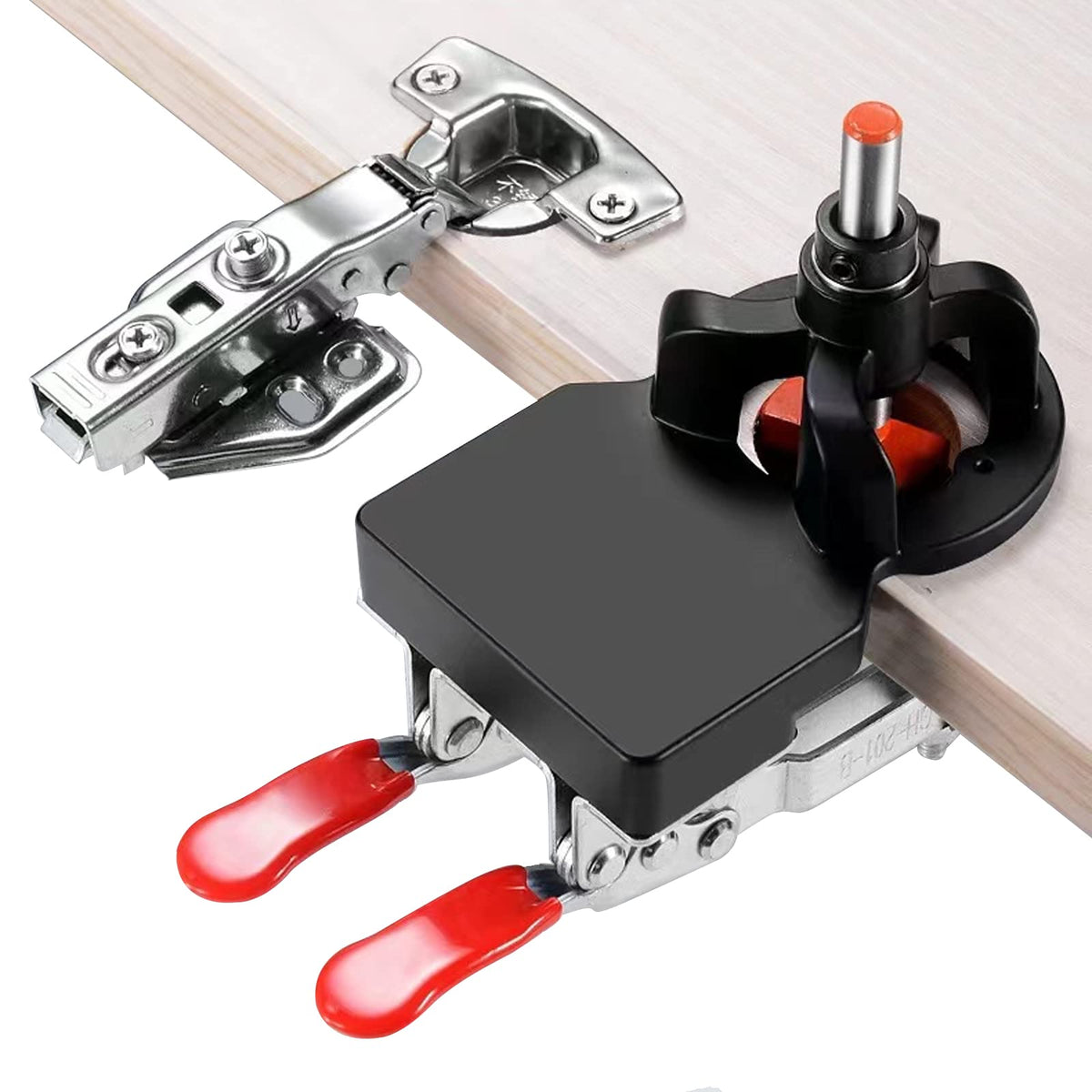

• Includes 2 retaining clips for secure hinge retention during installation.
• Designed to fit most 35 mm cabinet hinge jig clamps, enhancing compatibility across projects.

Note: This jig is designed to improve control and precision during hinge installation. Benefits described are possibilities based on the tool’s features, not guarantees. For best results, combine with careful measurements and proper drilling technique.
