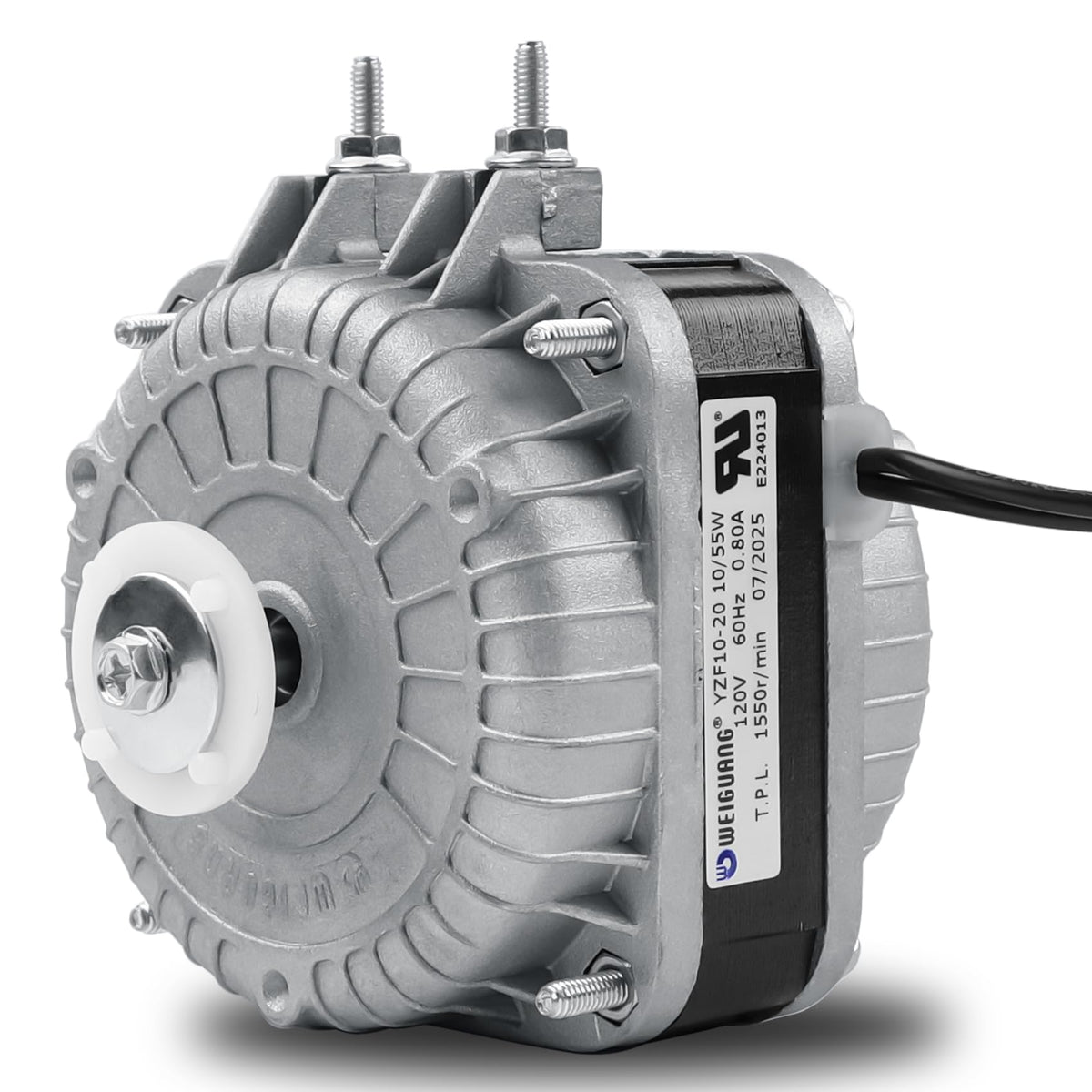

UHEGDRR YZF10-20 Fan Motor 120V 10W/55W 1550rpm – Shaded Pole Replacement

Elevate your equipment cooling with the YZF10-20 motor

Engineered for reliable performance in refrigeration and compact ventilation tasks, the YZF10-20 is a 120V shaded pole fan motor designed to move air steadily where space is tight. It delivers a steady airflow of up to 800 m³/h while fitting in a compact form factor, making it a practical replacement option for several cooling configurations.

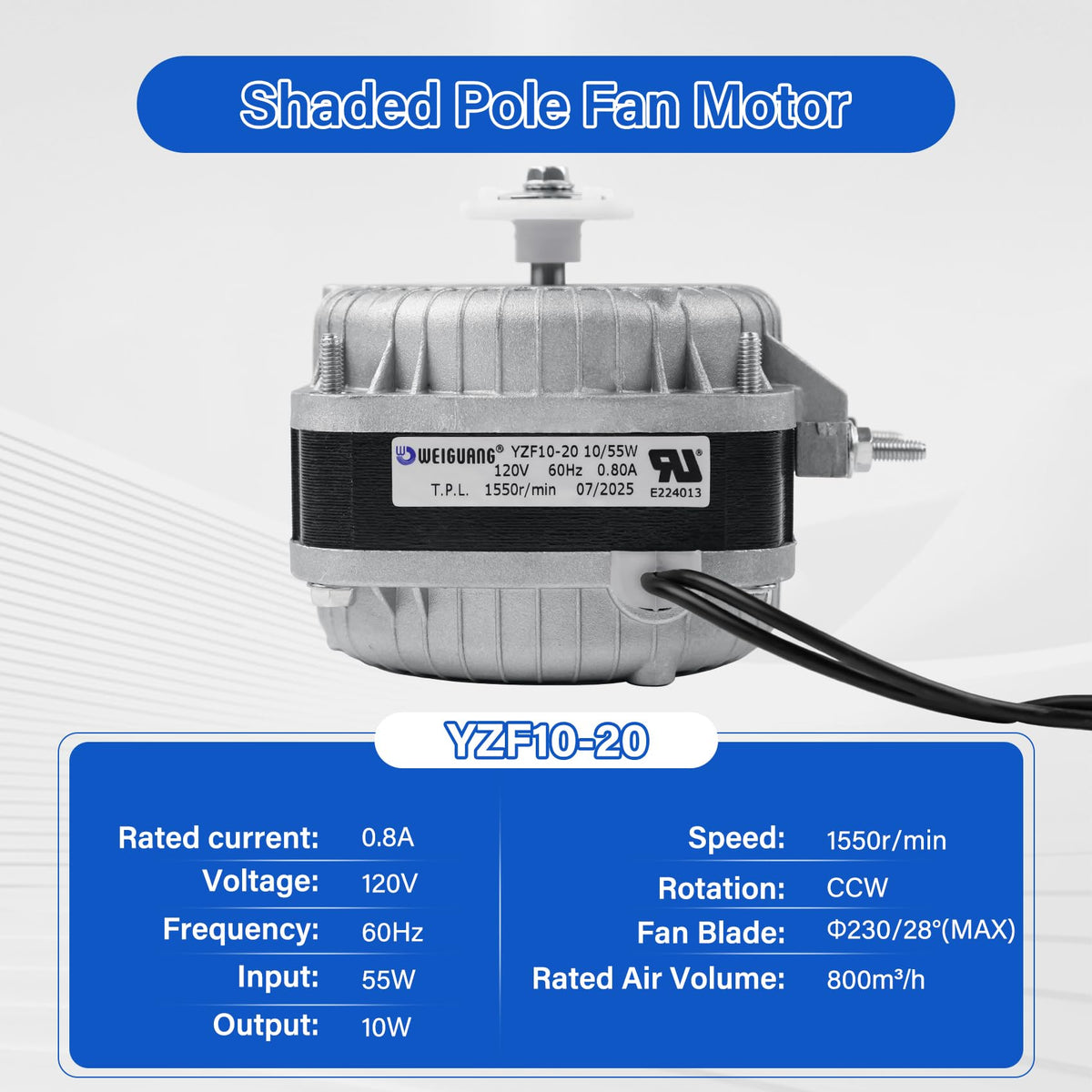

Key specifications at a glance

• Voltage 120V, current 0.8 A, output 10 W, input 55 W, 60 Hz
• Rotation CCW at about 1550 r/min
• Continuous operation potential beyond 20,000 hours with sleeve bearing

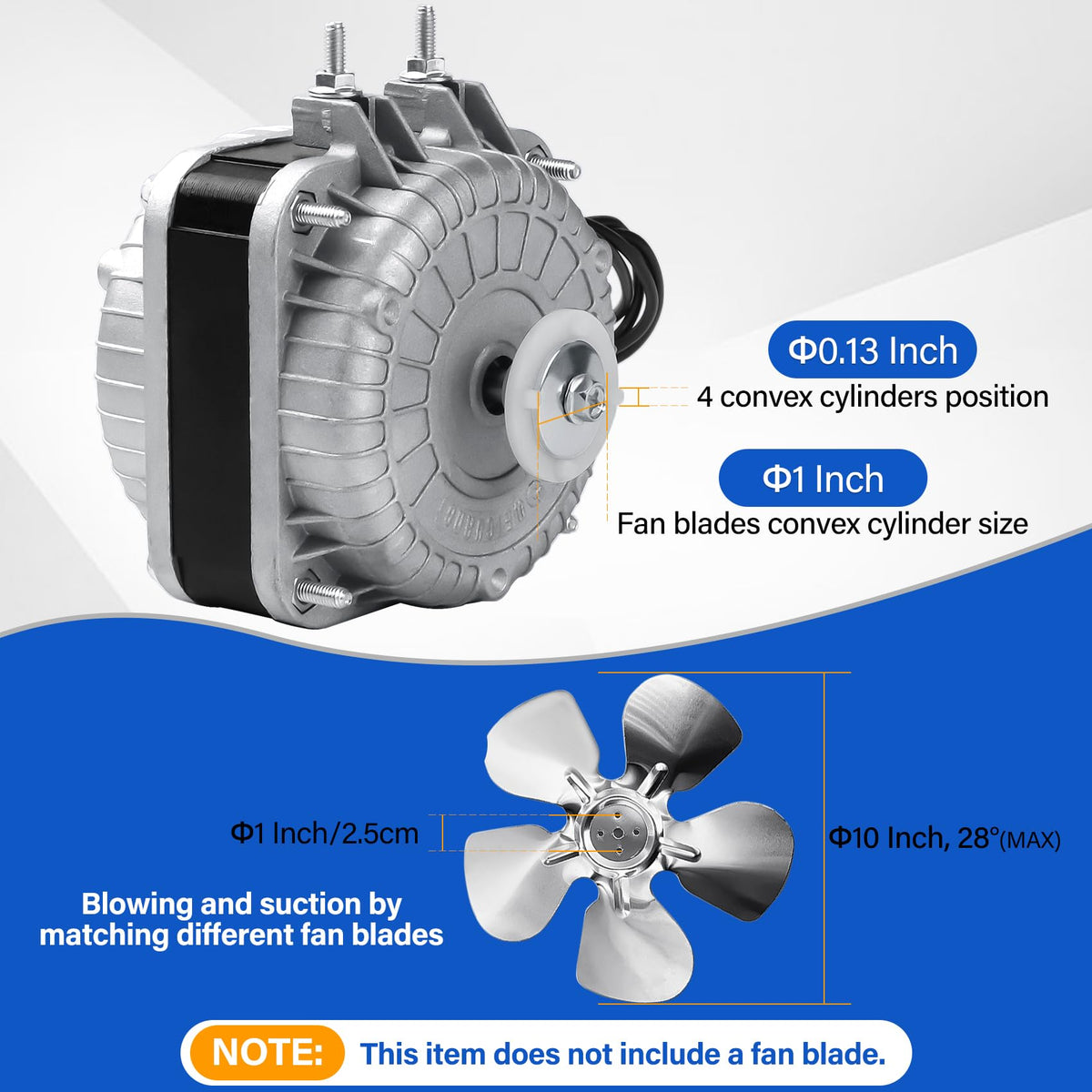

• Blade compatibility up to Φ230 mm with a 28 degree blade angle
• RoHS certified materials with high temperature and corrosion resistance
• UL/CSA certified for added reliability

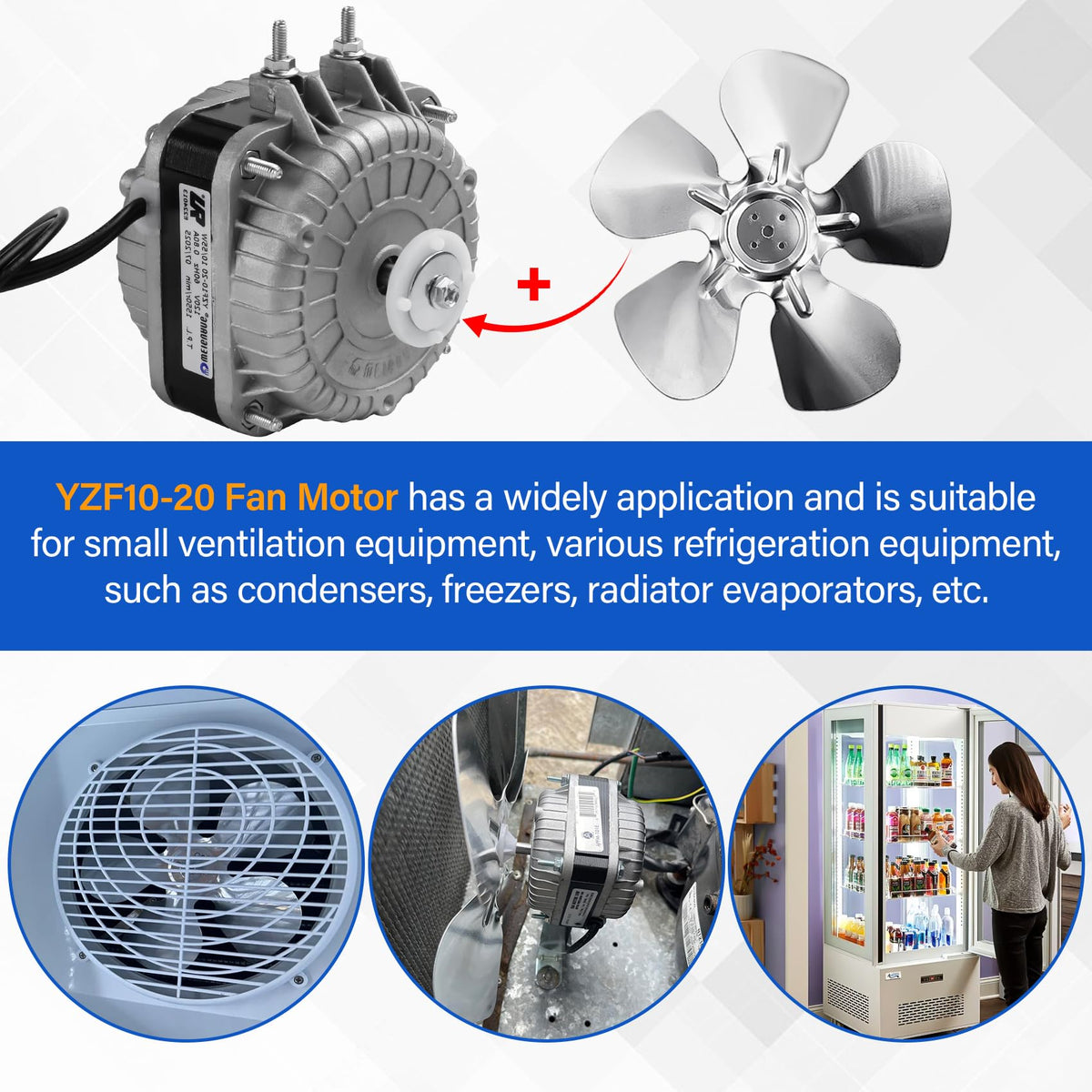

Where it fits

• Small ventilation devices and compact fans
• Condenser sections, freezers, radiator evaporators
• Broad brand compatibility including Atosa, Avantco, Fasco, Elco, Supco, Mars and more

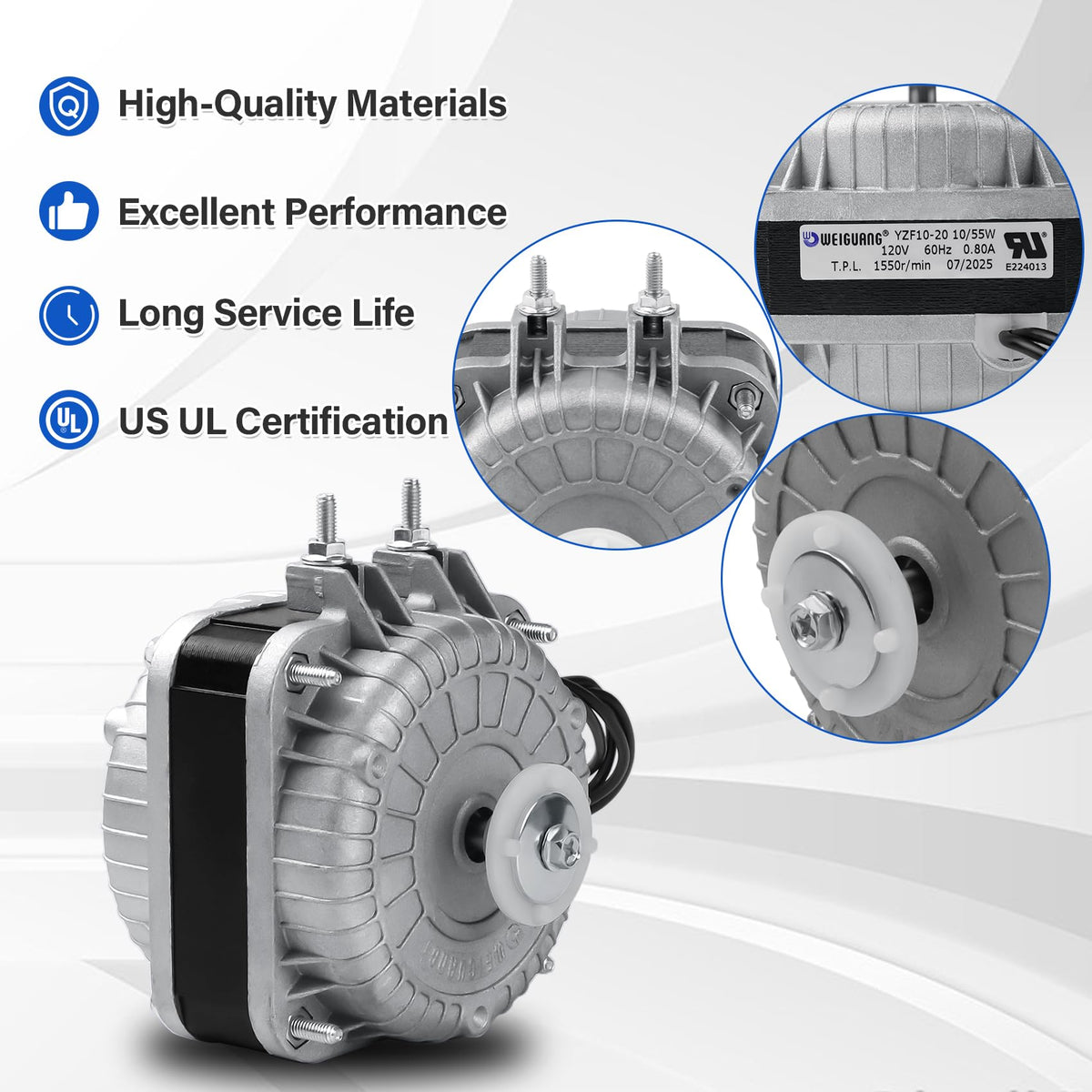

Quality you can rely on

The motor uses a sleeve bearing for smooth operation and is built to withstand heat and corrosion. Materials are RoHS compliant and the assembly is tested to align with UL/CSA standards, supporting long-term performance.

Installation and care

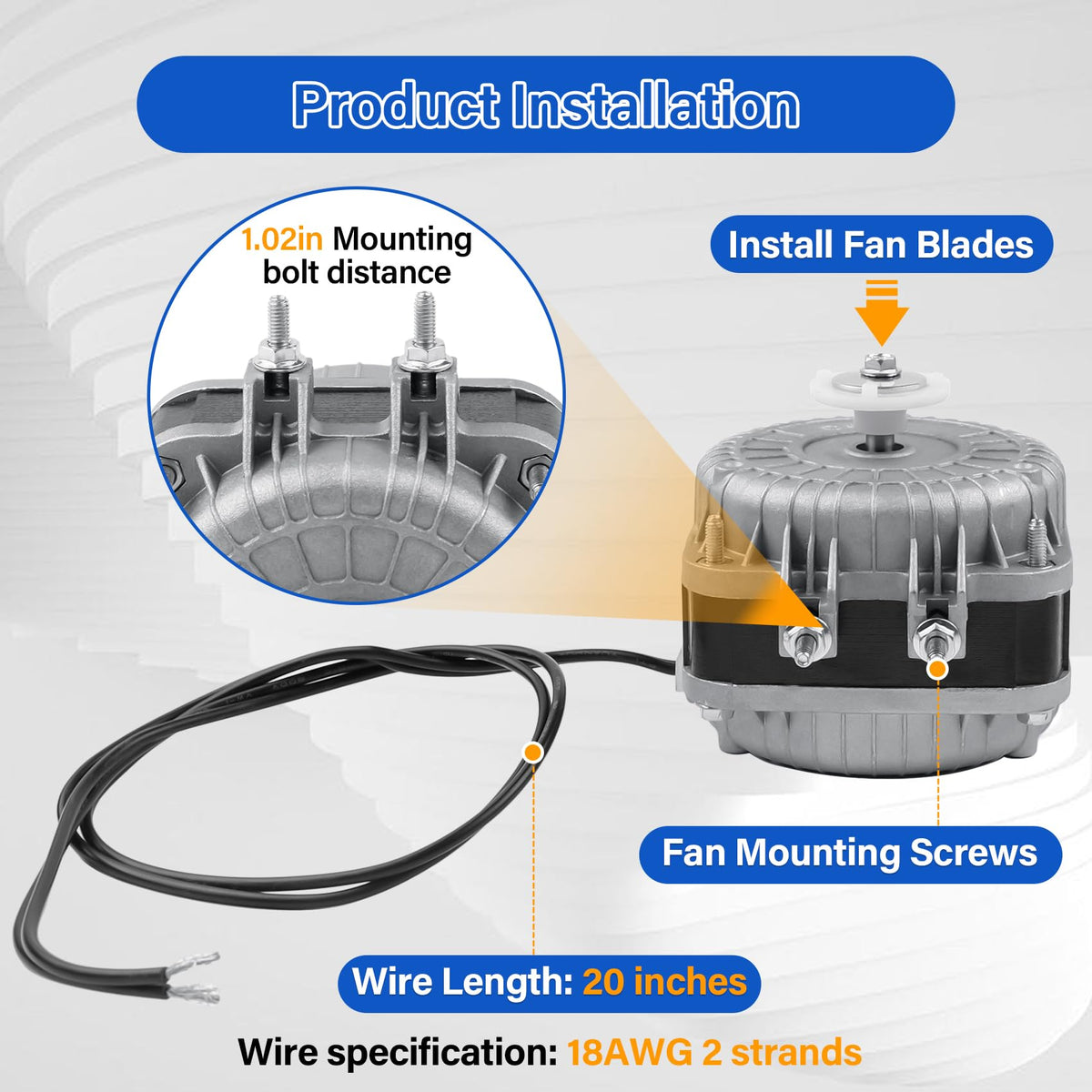

Installation is straightforward and does not require drilling or welding. For best airflow, mount horizontally. Note that blades are not included, so pair with your preferred blade. You can find helpful installation videos from reputable sources if needed.

Warranty and support

This YZF10-20 motor is backed by a two-year warranty. If you have questions or encounter quality concerns, contact us for assistance and we will work toward a satisfactory resolution.
