RectorSeal Safe-T-Switch 97637 Condensate Overflow Switch - Easy Access, 3/4-in Adapter

Overview

The RectorSeal Safe-T-Switch 97637 Condensate Overflow Switch is a compact, purpose-built solution for detecting condensate drain clogs and preventing overflow in HVAC systems. Designed to mount on the auxiliary outlet of the primary drain pan, it uses a magnetic reed switch and the included 3/4-in adapter to accommodate off-center placement while maintaining reliable operation. A float is adjustable, and the switch offers quick service access in tight spaces, making routine maintenance more straightforward without interrupting normal service.

Key benefits

• Prevent water overflow by detecting condensate drain clogs before they affect equipment.

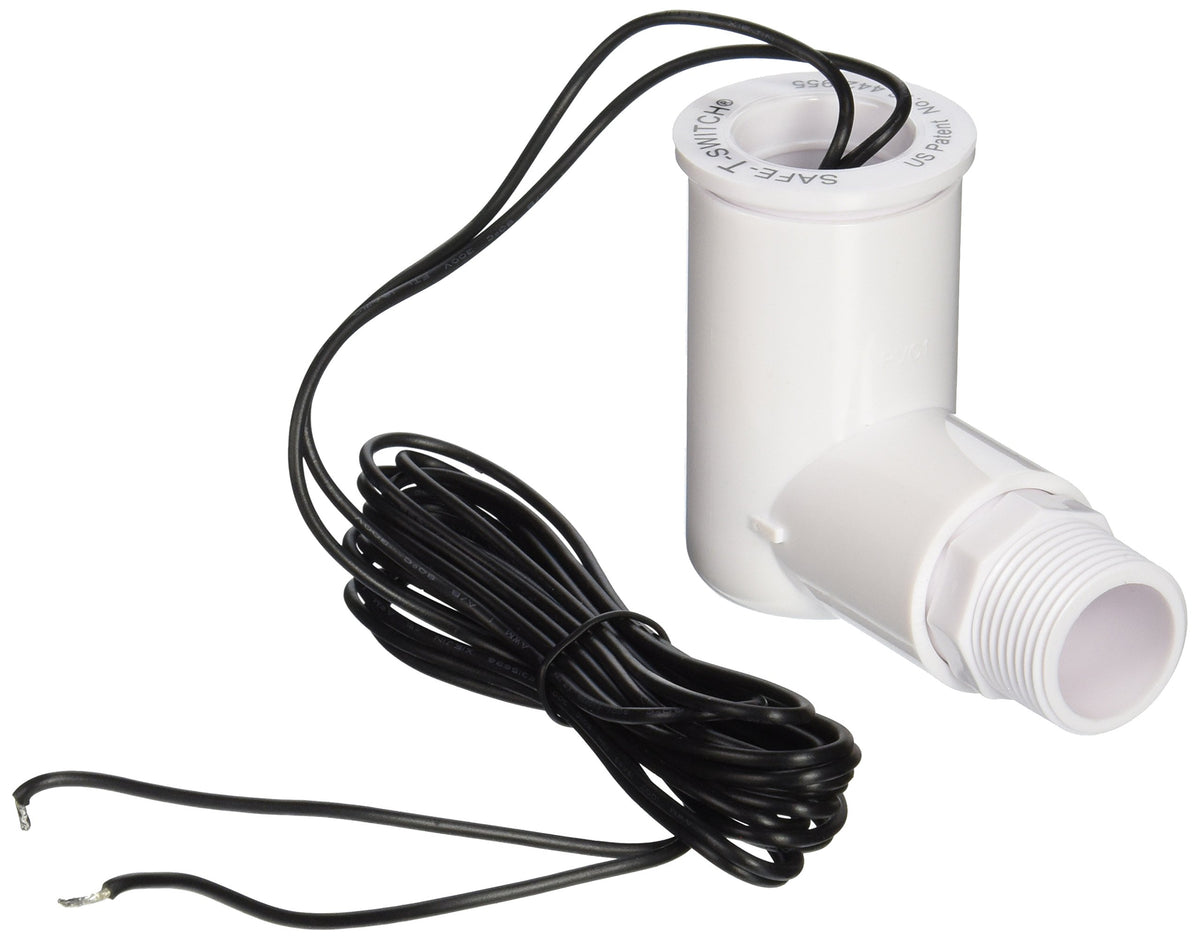

• Flexible installation with off-center capability thanks to the magnetic reed switch.
• Easy service access: adjustable float and straightforward access to the switch support quick maintenance.
• Compact L-shaped design designed for tight spaces and installations without a plug.

Installation and maintenance

• Installs on the auxiliary outlet of the primary drain pan using the 3/4-in adapter included in the package.
• Pre-wired with 4-foot 18 AWG wires for simple wiring and dependable electrical connections.
• Float adjustability allows you to set the activation point to match individual system configurations.
• Dual-function access: straightforward primary drain line access for service and quick checks.

Specifications and compatibility

The Safe-T-Switch operates on 24-volt AC with a 1.25-amp rating. It is designed for use in water-filled drain systems and includes a 3/4-in adapter to fit standard auxiliary pan outlets. The unit is compact, field-ready, and tailored for professional HVAC/R, plumbing, electrical, and construction environments.

Real-world use cases

In spaces where drain pans are closely fitted or when the primary drain outlet is hard to access, the off-center capability and compact shape help installers position the switch without sacrificing function. The pre-wired harness simplifies wiring in utility rooms, closets, or service bays, while the adjustable float supports a range of pan designs and water level expectations. For technicians, the module provides a reliable safeguard that can be added during new installations or retrofits to enhance system resilience without significant downtime.

What you get

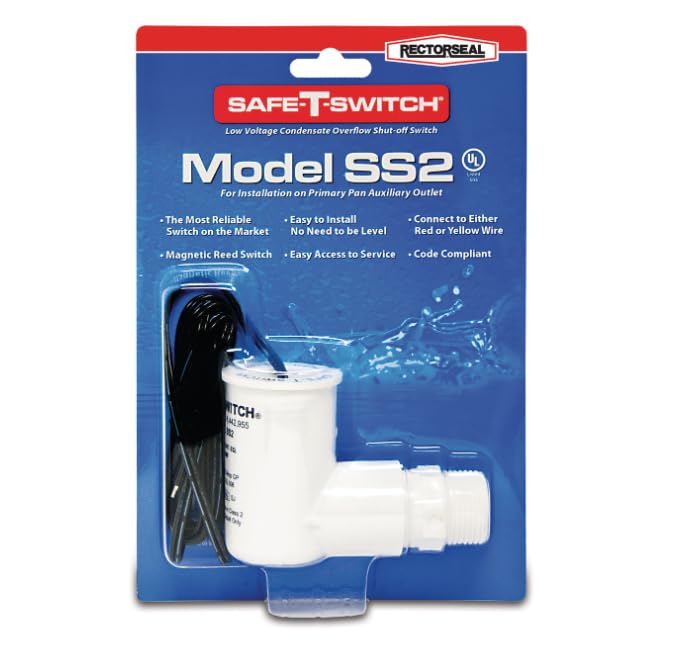

One Safe-T-Switch with an included 3/4-inch adapter, a compact L-shaped body, and a 4-foot pre-wired lead extension ready for field connection.
