FNIRSI LCR-P1 Transistor Tester | MOSFET, Diode, Capacitor & LCR Meter

Overview

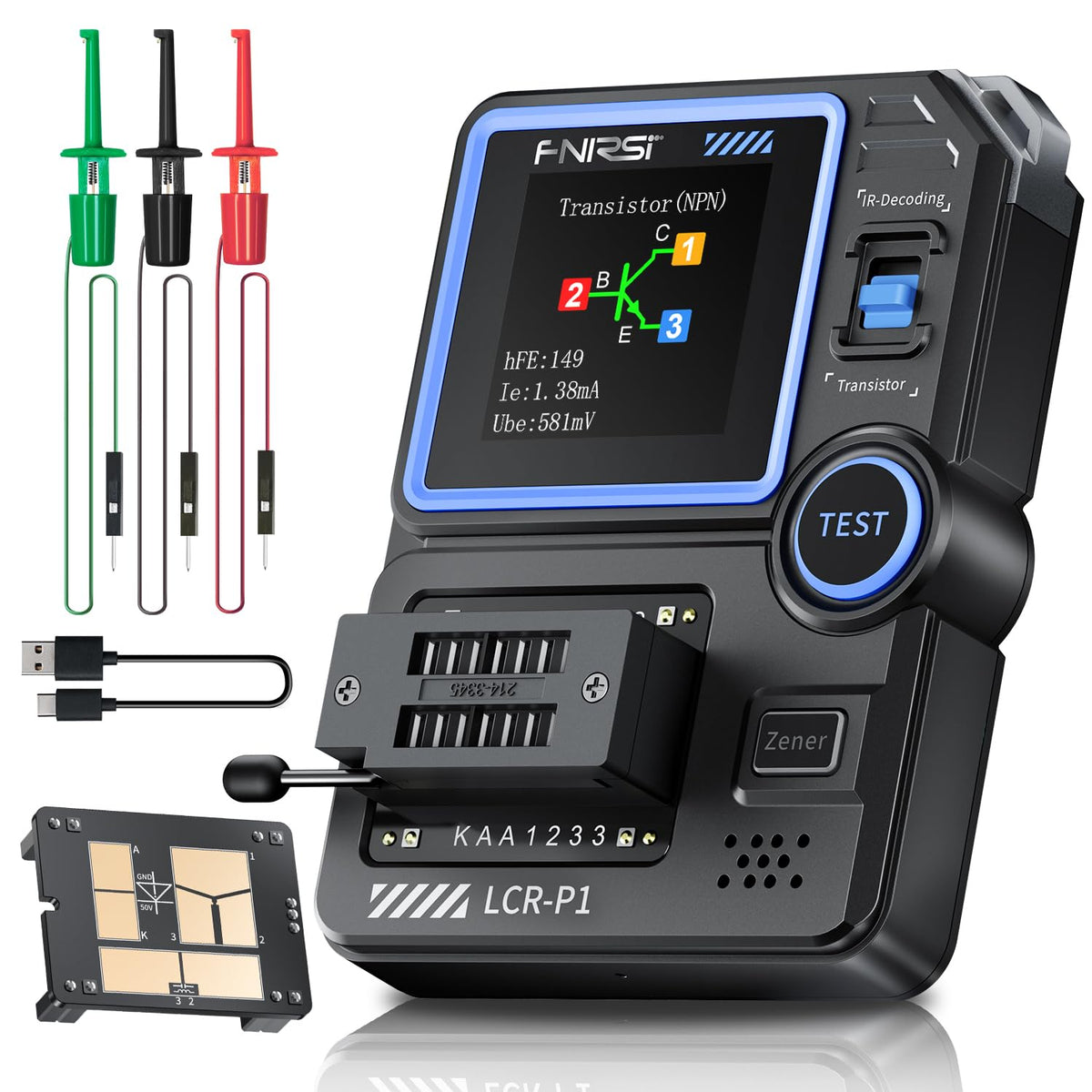

The FNIRSI LCR-P1 combines a transistor tester, capacitor tester, ESR meter, and LCR measurement into a compact handheld device. It is designed for electronics hobbyists, repair technicians, and students who need fast, on-site verification without juggling multiple tools. The replaceable patch seat supports both tiny SMD parts and larger power components, so you can switch between tasks smoothly. A 1.44 inch full‑color display keeps readings legible in cluttered workspaces, while USB-C enables fast charging, data transfer, and effortless firmware upgrades. An anti-burn protection mechanism detects undischarged capacitors and discharges them automatically on insertion, reducing the risk of accidental damage during setup. The NEC infrared waveform analysis helps debug and understand remote control signals, which can be valuable during maintenance. Intelligent automatic identification of pins and parameters speeds up testing, letting you focus on interpreting results rather than configuring the device.

What you can test

• Transistors and MOS devices: NPN/PNP transistors, MOSFETs, and related parameters.

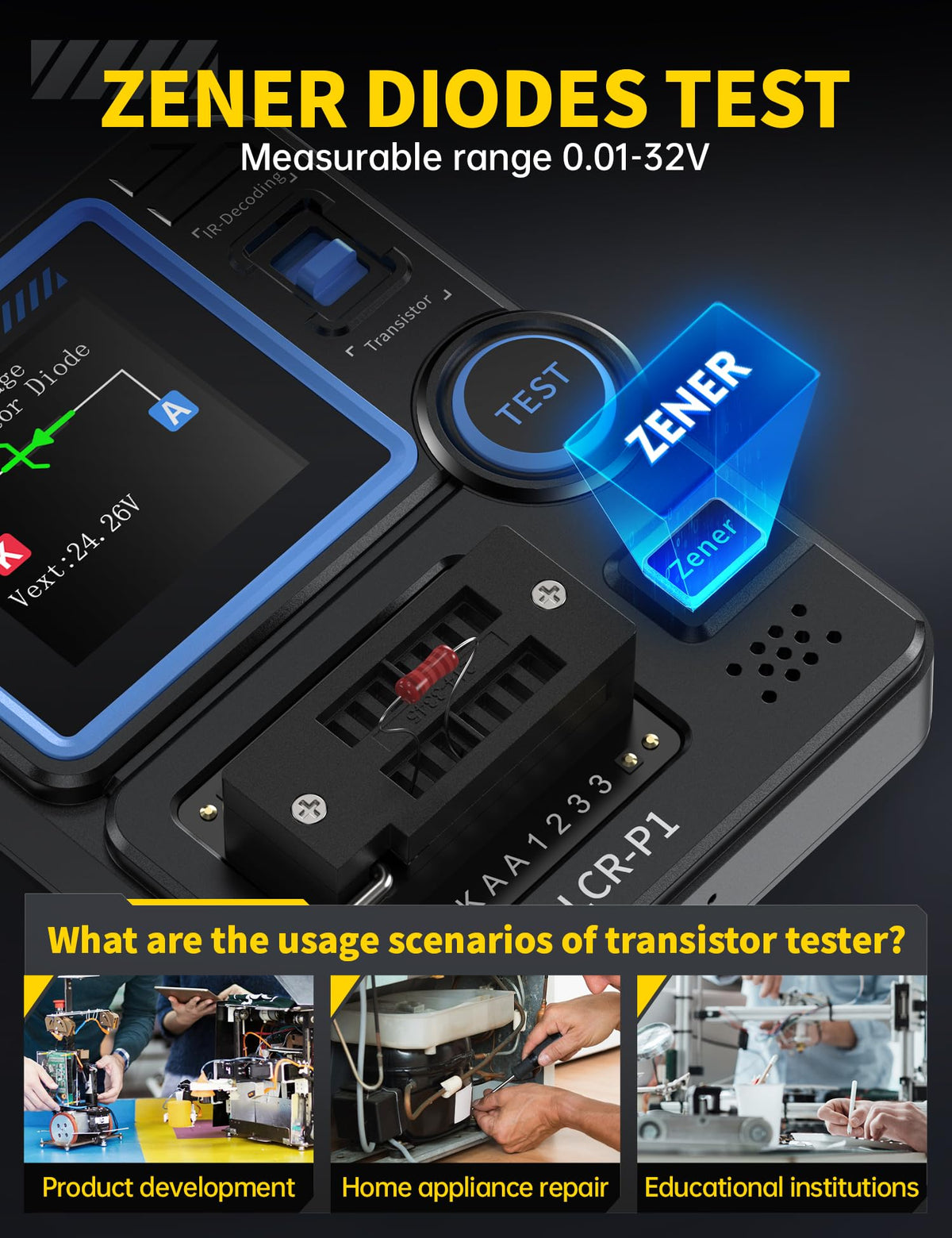

• Diodes and Zeners: forward behavior, breakdown characteristics, and general health checks.
• Capacitors and resistors: capacitance values, tolerances, resistance, and leakage tendencies.
• Inductors and batteries: inductance values and basic battery condition indicators.
• ESR and additional metrics: capacitance resistance ESR testing coverage for common components.
• Patch testing versatility: measurements for both tiny SMD parts and larger power devices.

Smart design and safety

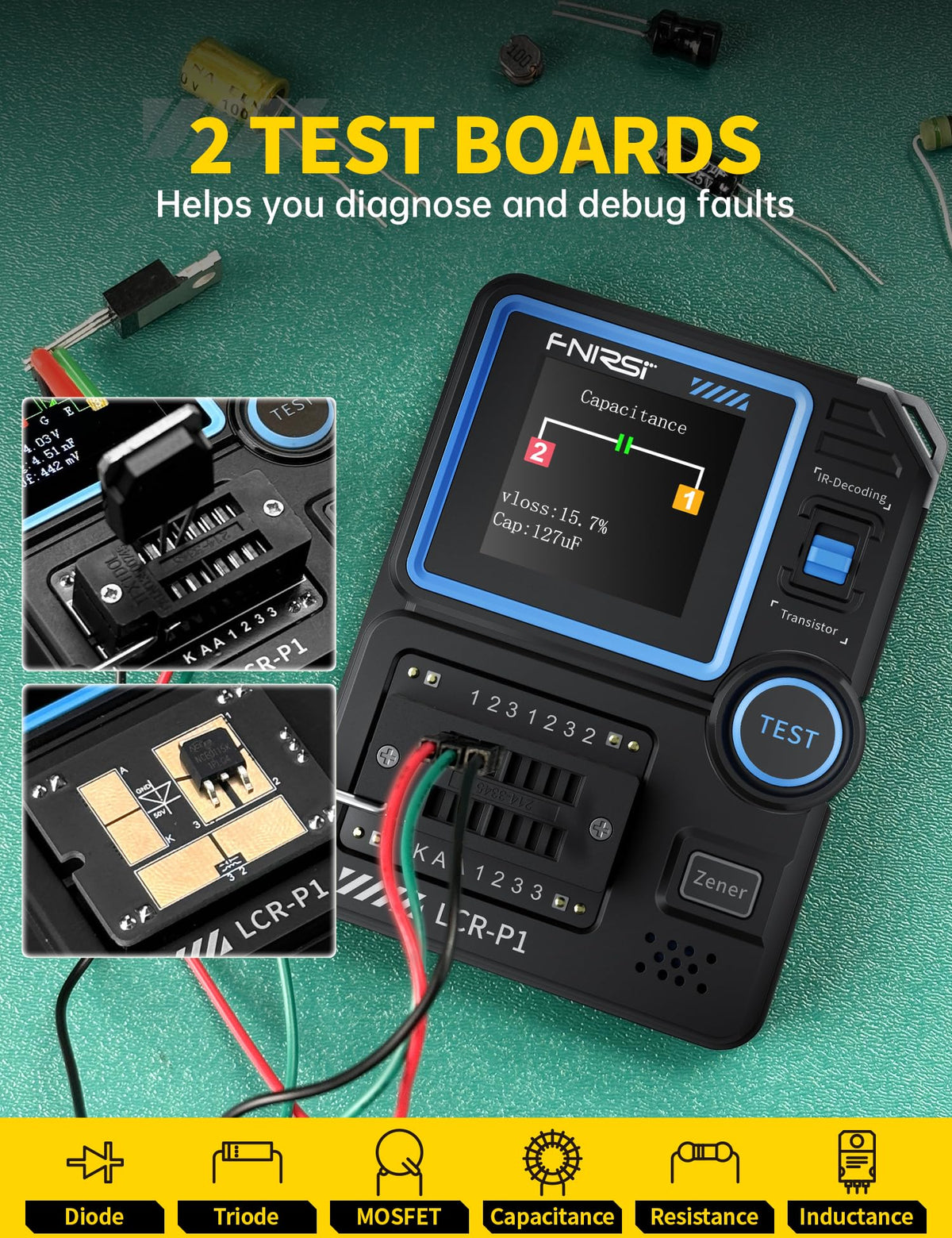

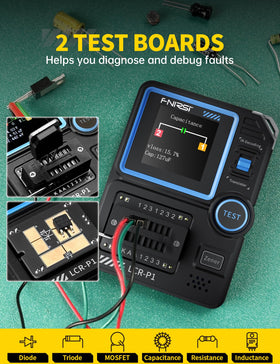

• Replaceable patch seat enables measurement across a wide range of component sizes.

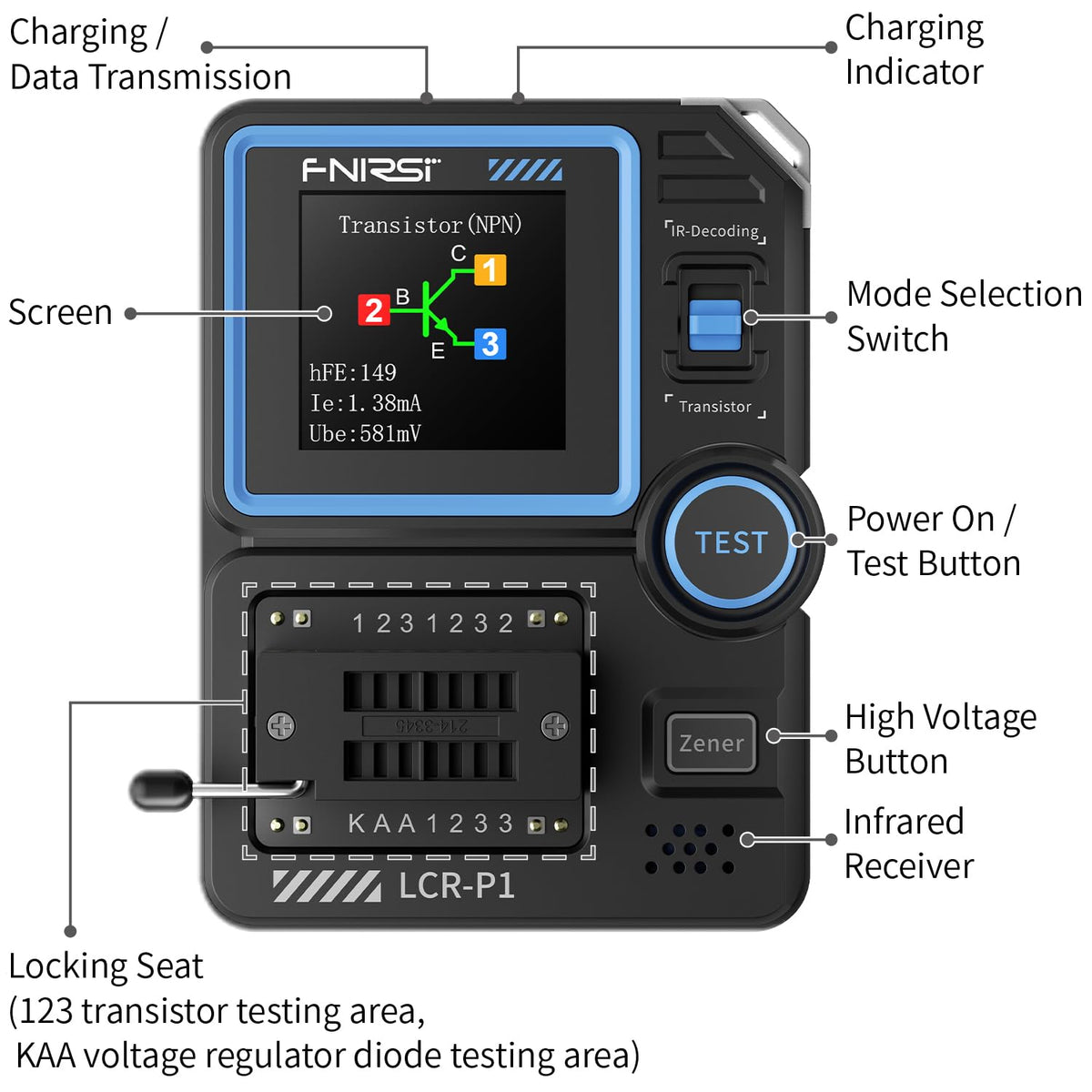

• 1.44 inch color display provides clear, at-a-glance readings in busy work areas.

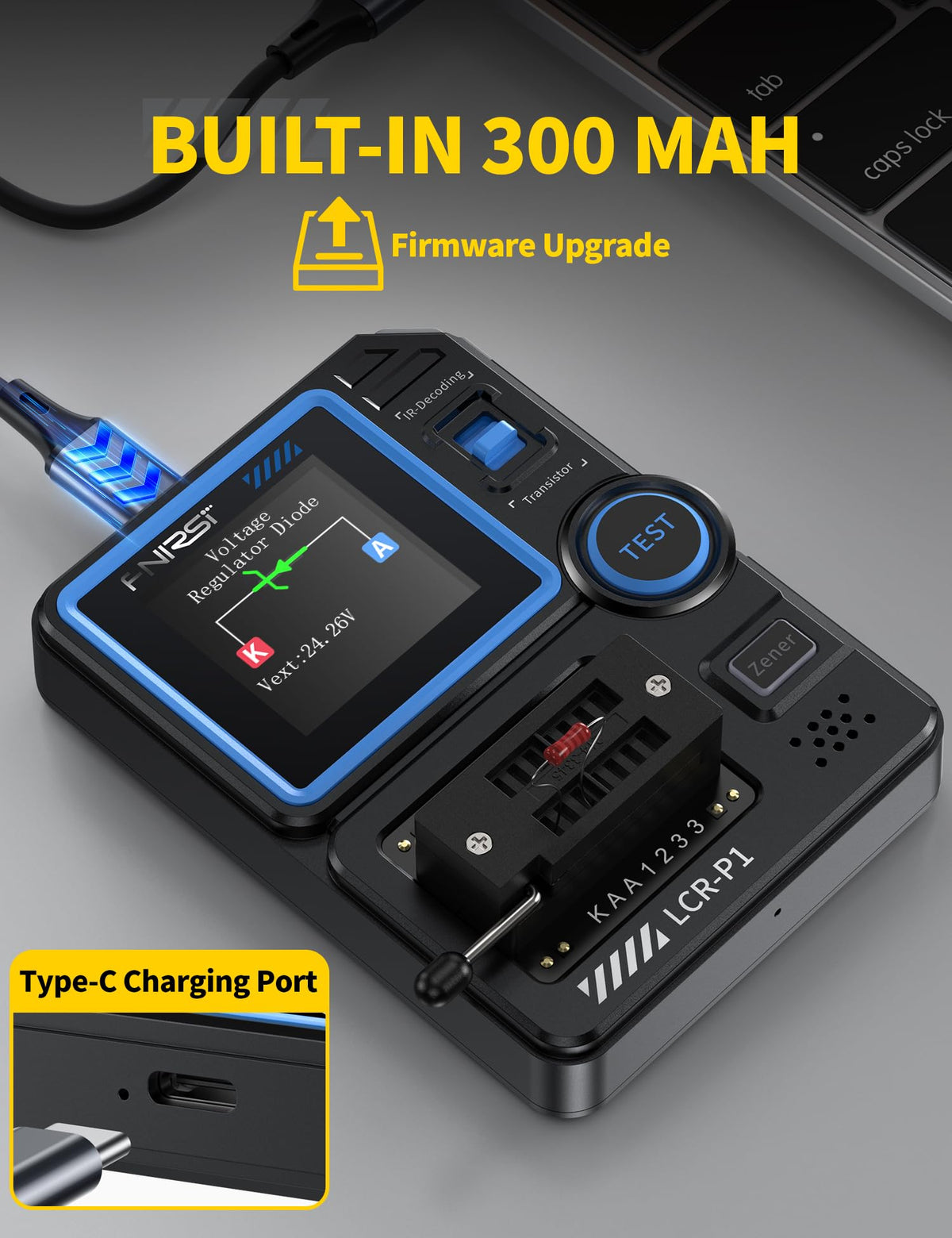

• 300 mAh battery with Type-C interface supports charging and data transfer on the go.
• Firmware upgrade capability helps keep the device current with evolving component models.

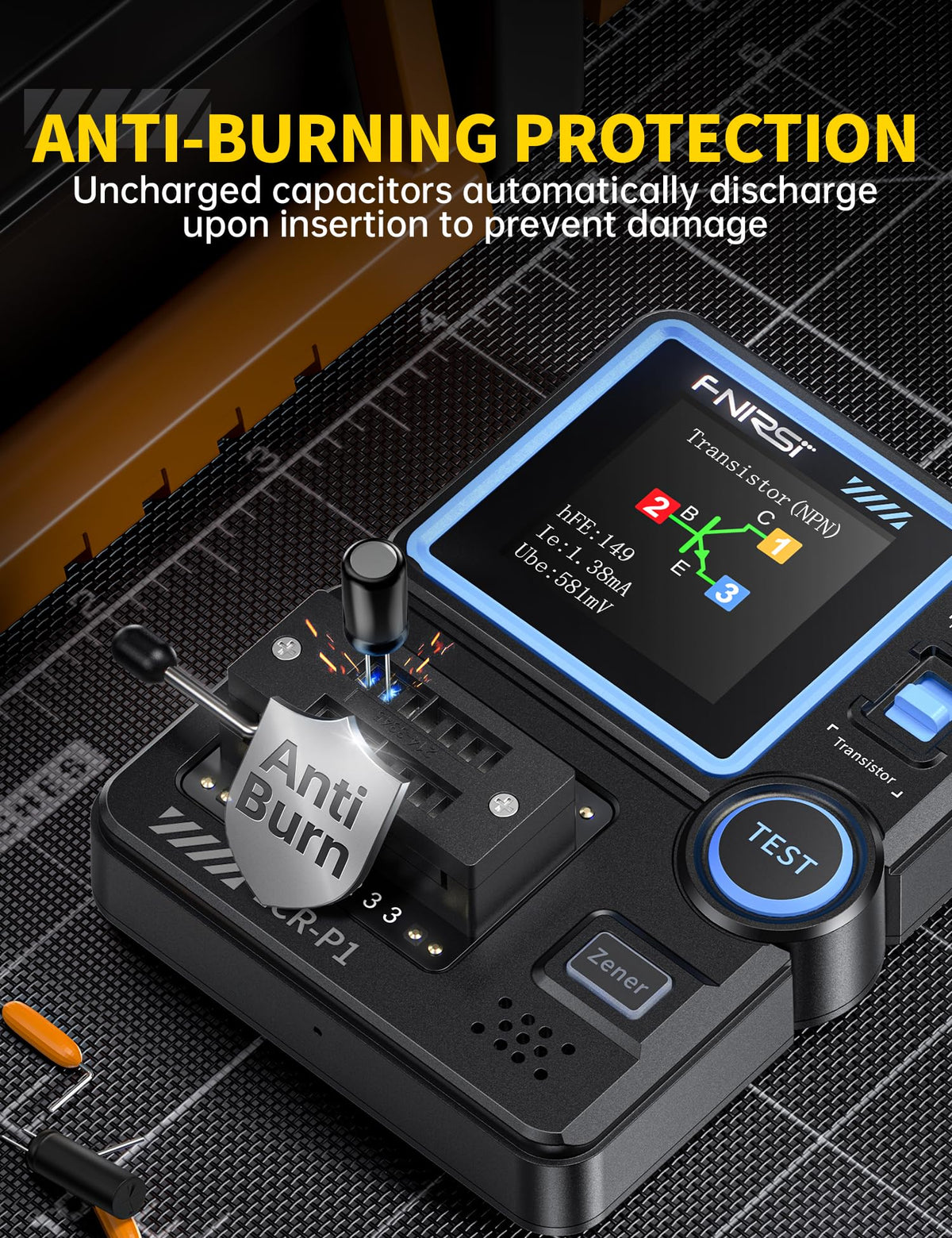

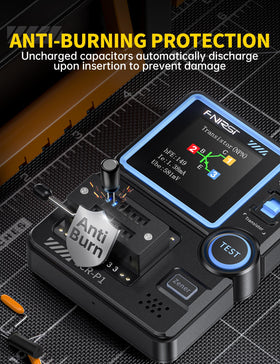

• Anti-burn protection automatically discharges undischarged capacitors to reduce handling risk.
• Intelligent automatic identification of pins and parameters accelerates setup and testing.

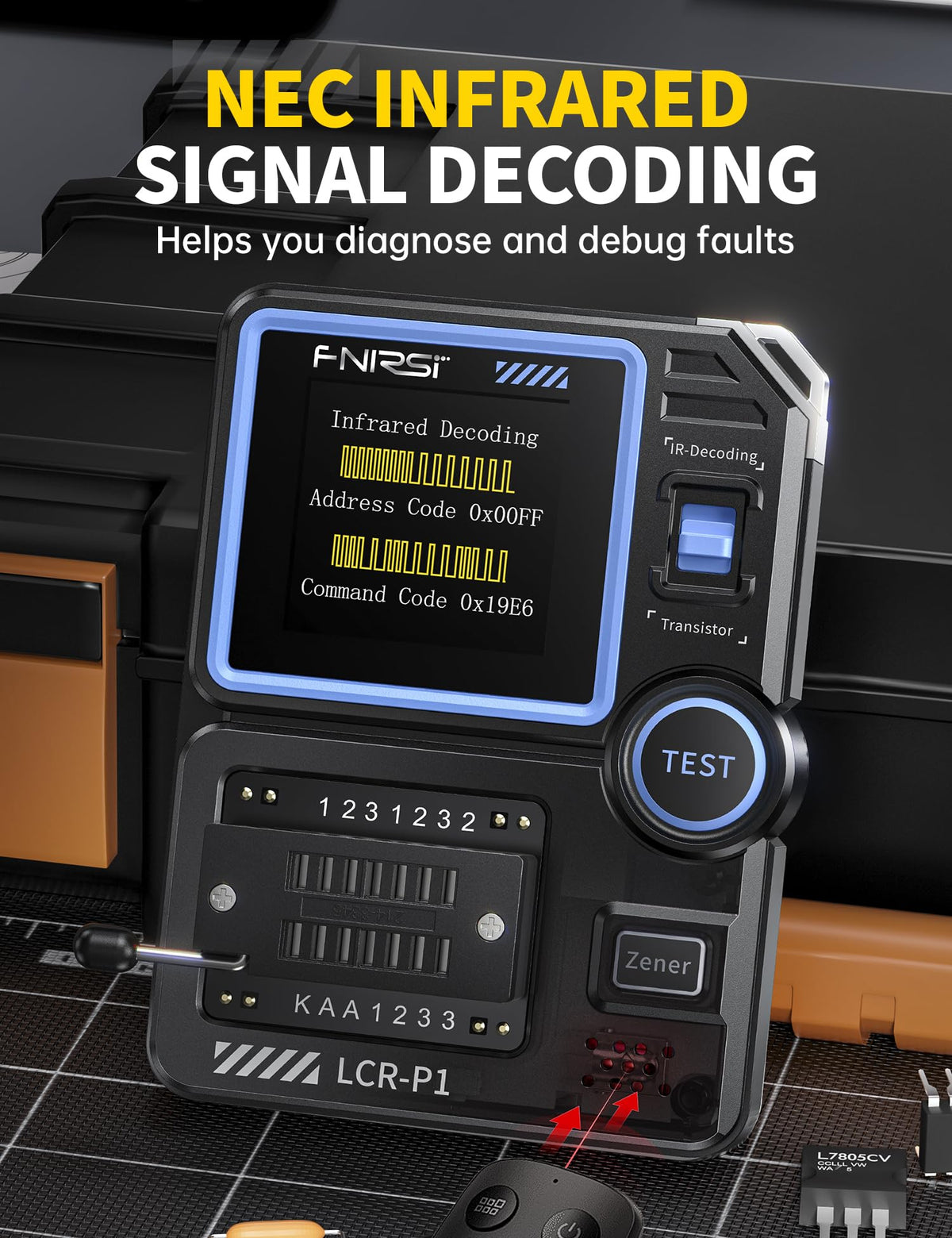

Infrared analysis and practical use

The NEC infrared waveform analysis feature supports debugging and maintenance tasks for remote-controlled devices, expanding the tester’s utility beyond component verification. In field or bench environments, the LCR-P1 can streamline workflows by offering quick, cross-domain insights—helping you decide which parts to inspect next and how to approach repairs or restorations. While outcomes depend on the specific circuit and conditions, the device is designed to provide informative measurements and actionable data to guide your decisions.

Why choose FNIRSI LCR-P1

Designed to improve efficiency without overwhelming the user, the LCR-P1 presents a coherent set of capabilities in a single handheld tool. It invites you to explore a broad range of components with confidence, supported by safety features and upgradeability. Consider it a practical companion for routine testing, troubleshooting, and learning about analog and mixed-signal circuits.
